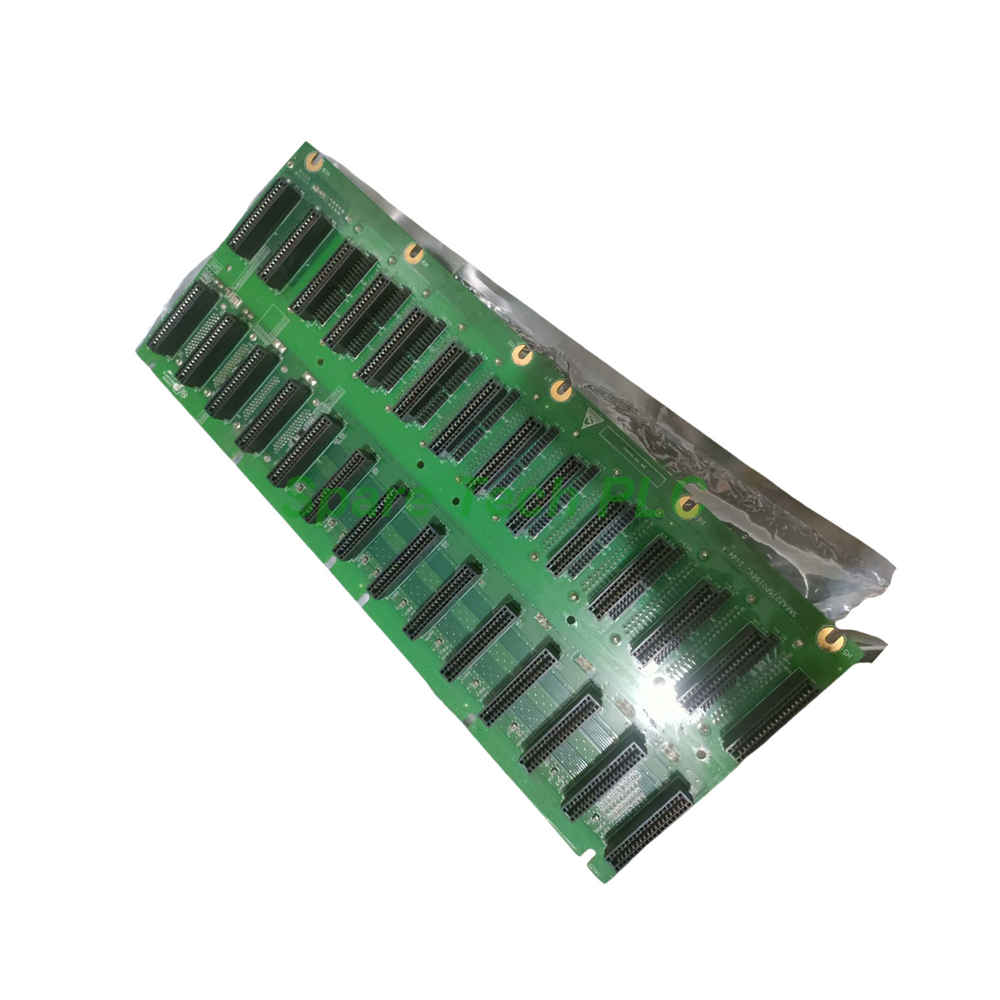

GE 369B1859G0018 eBUS Board – PNP/NPN Module

GE Nexus 369B1859G0018 eBUS Board Product Introduction

The GE Nexus 369B1859G0018 eBUS board serves as a reliable communication bridge in complex automation systems. This module handles data transfer between controllers, sensors, and actuators with consistent performance. Its compact design fits directly into standard GE Nexus chassis slots, making installation straightforward for system integrators.

Notably, the 369B1859G0018 integrates both PNP and NPN output types on a single board. This dual capability allows it to work with sourcing and sinking devices without extra converters. Additionally, the board offers symmetrical positive and negative outputs, which greatly simplifies wiring to single-ended receivers and reduces overall installation effort.

Technical Specifications

The GE Nexus 369B1859G0018 supports a maximum transmission distance of 100 meters when using twisted-pair cables for differential reception. This long reach makes it suitable for large factory floors or distributed control setups. For environments with high electrical noise, the differential signaling provides excellent common-mode rejection, preserving signal integrity even near heavy machinery.

Furthermore, this model accommodates single-ended reception through multiple media types, including standard wires, fiber optic cables, and wireless radio links. This flexibility gives engineers the freedom to choose the most cost-effective or reliable medium for each specific application. The board operates on a nominal 24V DC power supply and withstands industrial temperature ranges from -40°C to +85°C, ensuring stable function in harsh conditions.

Mechanical & Environmental Parameters

• Mounting Type: Direct slot insertion into GE Nexus backplane.

• Terminal Connections: Screw-type clamp terminals for secure and maintenance-friendly wiring.

• Dimensions: Standard Nexus form factor (approx. 150mm x 100mm x 30mm).

• Operating Temperature: -40°C to +85°C.

• Storage Temperature: -55°C to +100°C.

• Humidity Tolerance: 5% to 95% non-condensing.

• Vibration Resistance: Complies with IEC 60068-2-6 standards.

Installation Guidelines

Proper installation of the 369B1859G0018 ensures optimal data transmission and long service life. First, insert the board firmly into an available Nexus backplane slot until the locking mechanism engages. Next, select the appropriate transmission medium based on your site conditions: for distances under 50 meters in clean environments, standard twisted-pair cable works well; for longer runs or noisy areas, consider fiber optic or differential twisted-pair wiring.

When wiring outputs, match the PNP or NPN type to your connected devices. Specifically, connect PNP outputs to sourcing inputs and NPN outputs to sinking inputs. For single-ended receivers, wire the symmetric positive and negative lines accordingly. Additionally, maintain at least 10cm separation between communication cables and high-voltage power lines to minimize interference. Finally, apply power only after verifying all connections are secure and correctly terminated.

Packaging List

Your package for the GE Nexus 369B1859G0018 includes the following items:

• One GE 369B1859G0018 eBUS Communication Board

• One quick-start installation guide

• One set of mounting screws and brackets

• One termination resistor pack for long-distance setups

Shipping & Delivery

We ship all orders via trusted global carriers: FedEx, UPS, and DHL. Standard delivery takes 3–5 business days for most destinations, with express options available upon request. All packages are properly cushioned and sealed to prevent transit damage.

Frequently Asked Questions (FAQ)

Q1: What is the key benefit of having both PNP and NPN outputs?
This design lets the 369B1859G0018 connect to both sourcing and sinking input devices. Consequently, you avoid using external level-shifting adapters and simplify your panel layout.

Q2: Can I achieve the full 100-meter range with standard telephone wire?
For maximum distance, you should use high-quality shielded twisted-pair cable. Standard telephone wire lacks the necessary impedance control and shielding, which may reduce range or introduce errors.

Q3: Is the board compatible with fiber optic transceivers directly?
Yes, the GE Nexus 369B1859G0018 supports fiber optic media through appropriate external transceivers. This setup is ideal for extremely long runs or high-noise environments like power substations.

Q4: What should I do if the board does not communicate after installation?
First, check all power and ground connections. Second, verify that termination resistors are installed correctly at both ends of the bus. Third, confirm that your controller configuration matches the selected media type and baud rate.

Q5: Does the board require any special software drivers?
The 369B1859G0018 works with standard GE Nexus system firmware. Most installations require no additional drivers. However, always consult your system manual to ensure firmware version compatibility.
