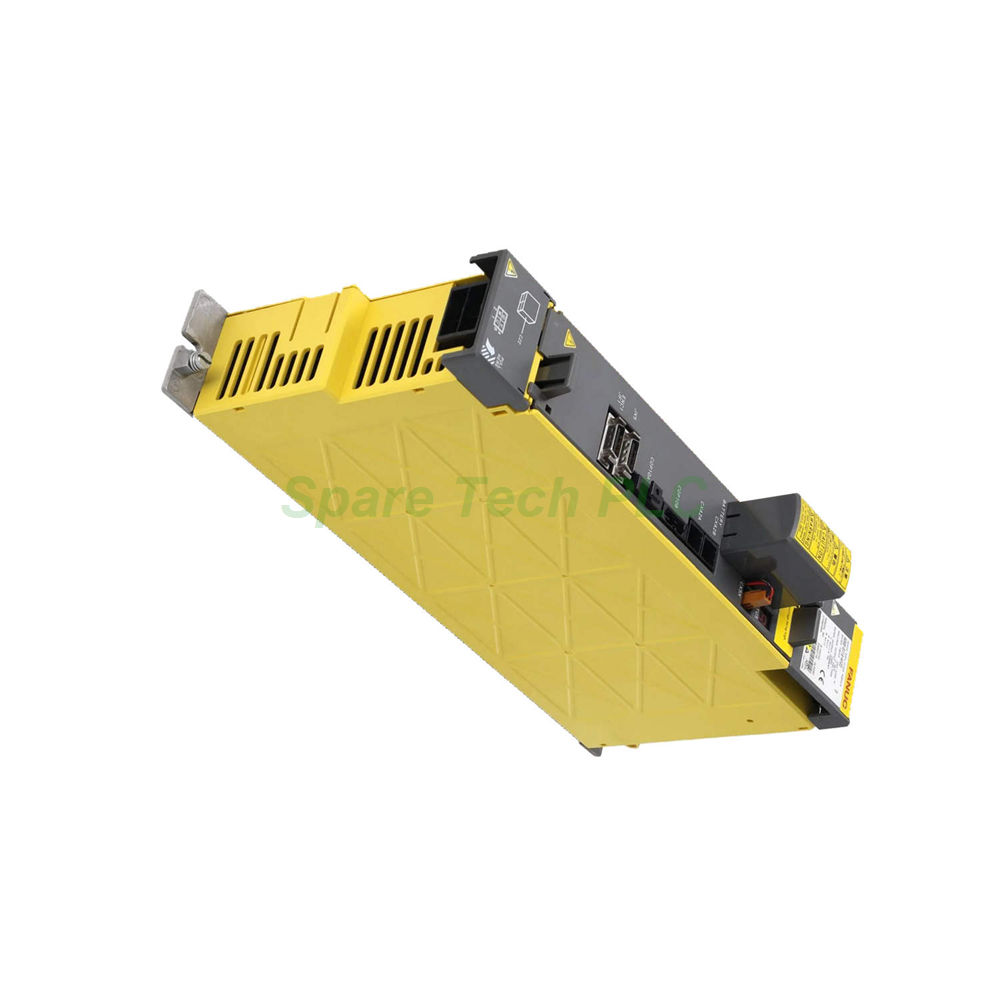

The FANUC A06B-6114-H103 is a robust servo amplifier module built to drive AC servo motors in industrial automation systems. This unit provides a rated output current of 6.5A and supports a broad frequency range from 0.1 Hz to 800 Hz, offering great flexibility for various speed profiles. It accepts a DC input voltage between 283 and 339 VDC, with a rated input power of 2.5 kW. Furthermore, the amplifier operates within a wide ambient temperature range of 0°C to 55°C, ensuring dependable performance even in warmer shop floors. Its compact design, weighing only 4.99 kg, simplifies integration into existing control cabinets.
The A06B-6114-H103 module excels in converting DC power into precise AC output for servo motors. The output voltage is rated at 200–240 VAC, which matches standard motor requirements. Meanwhile, the output frequency range of 0.1 to 800 Hz allows for fine speed regulation from creep to high-speed rotation. This versatility is particularly valuable in CNC machining centers, robotic arms, and material handling systems.
Additionally, this servo amplifier handles a rated output current of 6.5A continuously, supporting medium-power motors effectively. The input side requires a DC bus voltage of 283–339 VDC, commonly supplied by a rectifier or power supply unit. Its rated input power stands at 2.5 kW, ensuring adequate energy delivery for most servo tasks. The module also accepts both 50 Hz and 60 Hz input frequencies, making it compatible with power grids worldwide.
The FANUC A06B-6114-H103 is designed for stable operation under typical industrial conditions. The minimum ambient operating temperature is 0°C, while the maximum reaches 55°C, covering most factory environments. Humidity tolerance is specified at 90% RH or less, provided there is no condensation. This feature reduces the risk of short circuits or corrosion in damp conditions. The module weighs approximately 4.99 kg (11.00 lbs), which facilitates easy handling during installation or replacement. Its compact form factor also helps save valuable panel space.
Proper installation of the A06B-6114-H103 ensures safe and reliable operation. Begin by mounting the unit vertically on a flat, grounded metal plate inside the control cabinet. Ensure sufficient clearance around the heat sink for natural convection cooling. Next, connect the DC input power cables to the designated terminals, observing correct polarity. After that, wire the AC output terminals to the servo motor's power leads. Always use shielded cables for the encoder feedback and control signal connections to minimize electromagnetic interference.
Once all wiring is complete, double-check every connection against the wiring diagram. Power up the system and configure the basic parameters, such as motor model and current limits, through the FANUC CNC or servo setup software. Perform a low-speed test run to confirm proper operation. Finally, monitor the module's temperature during initial operation to verify adequate ventilation. For detailed parameter lists and fault codes, consult the official FANUC technical manual.
Your FANUC A06B-6114-H103 arrives in a secure package designed for safe transit. The servo amplifier is enclosed in an anti-static bag and cushioned with foam inserts inside a sturdy cardboard box. The package includes the amplifier module itself, a set of terminal connectors for power and signal wiring, and a basic installation leaflet. We ship all orders through FedEx, UPS, or DHL, ensuring fast and trackable delivery. Each shipment is fully insured to protect your investment during transportation.
1. What types of motors are compatible with the A06B-6114-H103?
This module is specifically designed for FANUC AC servo motors. For best results, pair it with a motor that matches the 6.5A current rating and 200–240 VAC specification.
2. Can this amplifier operate in high-temperature environments?
Yes, the A06B-6114-H103 runs reliably up to 55°C ambient temperature. However, ensure adequate cabinet ventilation to prevent overheating beyond this limit.
3. Does this module support regenerative braking?
It includes a built-in regenerative circuit to handle deceleration energy. For high-inertia loads, an external regenerative resistor may be required.
4. What is the purpose of the wide output frequency range?
The 0.1–800 Hz range allows precise speed control from very slow positioning to high-speed rotation, making it suitable for diverse CNC and automation tasks.
5. How do I check the module's status during operation?
The A06B-6114-H103 features LED indicators for power, alarm, and ready status. Refer to the manual for specific blink patterns and fault codes.
| Brand Name | |
| Model No. | A06B-6114-H103 |
| Product Type | Servo Amplifier Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
