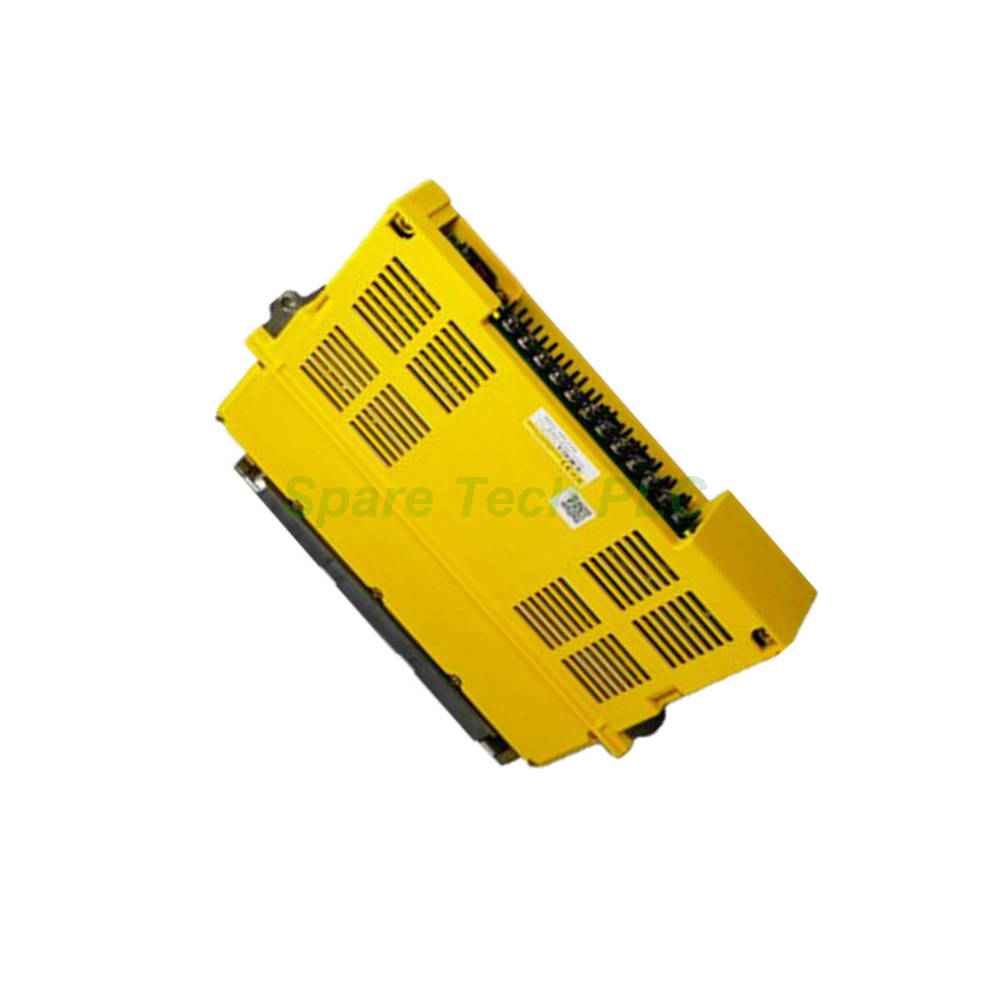

The FANUC A06B-6066-H246 dual-axis AC servo amplifier provides comprehensive motion control for modern CNC machinery. This servo drive manages two axes simultaneously, making it a cost-effective solution for multi-axis machining centers, milling machines, and robotic systems. Furthermore, it offers three distinct control modes—position, speed, and torque—allowing operators to tailor performance to specific application requirements.
Specifically designed for the A06B product line, this unit accepts a wide input voltage range of 200/220/230 VAC with ±10%/-15% tolerance. Consequently, it accommodates voltage fluctuations commonly found in industrial settings. Meanwhile, the single-phase power supply simplifies wiring compared to three-phase alternatives, reducing installation complexity. The A06B-6066-H246 also operates at both 50 Hz and 60 Hz, ensuring global compatibility.
The FANUC A06B-6066-H246 delivers robust electrical and control performance through well-engineered parameters. Below are the core specifications:
Product Type: AC Servo Amplifier (dual-axis drive)
Number of Axes: 2 – controls two motors independently
Input Voltage: 200/220/230 VAC ±10%/-15% – wide tolerance for grid stability
Power Supply: Single-phase – easy to integrate into existing panels
Frequency: 50/60 Hz – suitable for international use
Control Modes: Position, speed, and torque control – flexible for various tasks
Cooling Method: Air-cooled – uses natural or forced convection
Operating Temperature: 0°C to 55°C – reliable in typical factory environments
Protection Features: Overload, overcurrent, and overvoltage safeguards
Additionally, this amplifier communicates with the CNC controller via high-speed serial interfaces, ensuring low-latency command execution. For instance, in position control mode, it maintains tight encoder feedback loops to achieve micron-level accuracy. Similarly, torque control mode proves valuable for winding or tensioning applications where force regulation is critical.
Physical durability and environmental adaptability make the A06B-6066-H246 a dependable choice for continuous production. Its key mechanical attributes include:
Weight: 6.80 kg (15.00 lbs) – lightweight for easy handling and rack mounting
Mounting: Vertical or wall-mounted – flexible for cabinet layouts
Cooling: Air-cooled with integrated heat sink – no external liquid lines required
Temperature Range: 0°C to 55°C – performs well in ambient conditions
Humidity: 10% to 90% (non-condensing) – resists moisture in unsealed workshops
Besides that, the enclosure is designed to resist dust ingress, though regular cleaning of the cooling fins is recommended for sustained efficiency. Users should also avoid placing the unit near strong magnetic fields or high-voltage switching gear, as these can introduce noise into the control signals.
Proper installation of the A06B-6066-H246 ensures optimal performance and longevity. First, mount the amplifier vertically on a flat, vibration-free surface. Maintain at least 10 cm of clearance above and below the unit to allow unrestricted airflow through the heat sink. Next, secure it with M5 screws through the provided mounting slots.
For electrical connections, use appropriately gauged wires for the AC input and motor output terminals. The single-phase input requires a live, neutral, and ground connection—double-check the polarity before energizing. Additionally, connect the motor cables to the corresponding axis outputs, ensuring proper phase alignment to avoid reverse rotation.
Control signal wiring deserves special attention. Use shielded twisted-pair cables for encoder feedback and command signals. Ground the shield at the amplifier end only to prevent ground loops. After completing all connections, perform a startup sequence without load. Gradually increase the speed command and monitor each axis for smooth motion. If oscillation or instability occurs, adjust the gain parameters using the FANUC tuning software. Finally, label all cables for future troubleshooting.
Every FANUC A06B-6066-H246 order includes the following items in the standard package:
Dual-axis AC servo amplifier (1 unit)
Mounting screws and washers (set)
Input/output terminal blocks (pre-attached)
Quick-start guide (printed, multi-language)
Note that certificates, calibration reports, and warranty documents are not included in this package. These can be supplied separately upon request for customers with audit or compliance needs.
For reliable global delivery, we ship via FedEx, UPS, and DHL. Each consignment is fully tracked and insured. Moreover, the amplifier is packed in anti-static bubble wrap and corrugated boxes to absorb transit shocks.
Q1: Can the A06B-6066-H246 control two motors with different power ratings?
Yes, this dual-axis amplifier can drive two motors of different sizes, provided each motor falls within the unit's total current capacity. However, verify that the combined continuous current does not exceed the amplifier's rating. Consult the FANUC manual for specific derating curves.
Q2: Is this drive compatible with FANUC's alpha-i series motors?
Absolutely. The FANUC A06B-6066-H246 works seamlessly with alpha-i and beta-i series AC servomotors. Always check the motor's voltage and current specifications to ensure a proper match. For older motor series, adapter cables may be required.
Q3: What happens if the input voltage drops below 200 VAC?
The unit accepts a -15% tolerance, meaning it can operate down to approximately 170 VAC (for 200V nominal). Below this threshold, the amplifier may trigger undervoltage protection and shut down. If your facility experiences frequent sags, consider installing a line conditioner or UPS.
Q4: How do I switch between position, speed, and torque control modes?
Mode selection is configured through the CNC parameter settings or external input signals. Typically, the A06B-6066-H246 reads mode selection bits from the controller. Refer to the FANUC parameter manual for specific bit assignments and setup procedures.
Q5: What is the estimated shipping time for this item?
In-stock units are dispatched within 1–2 business days via FedEx, UPS, or DHL. Standard international delivery takes 3–7 working days, depending on customs processing in the destination country. Express options are available for urgent requirements.
