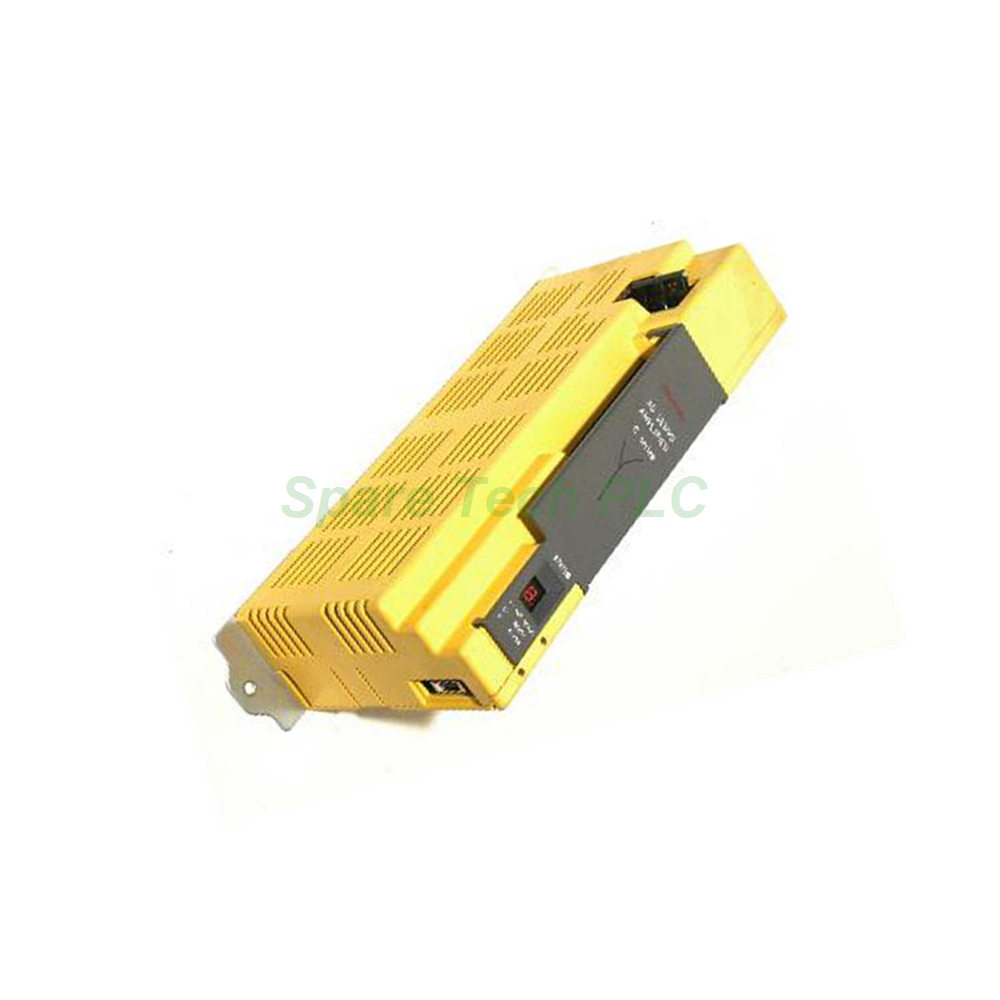

The FANUC A06B-6066-H003 is a high-performance servo drive engineered specifically for AC servo motor applications. This unit excels in both current and speed control, making it a versatile component for computer numerical control (CNC) systems. Its compact footprint allows for efficient use of cabinet space, a critical factor in dense industrial setups. Moreover, this drive is built to withstand demanding operational conditions, ensuring long-term stability. Consequently, the A06B-6066-H003 serves as a dependable solution for maintaining precise motion in machining and automation processes.
This servo drive supports two primary control modes. First, the current control loop ensures accurate torque output from the connected AC servo motor. Second, the speed control loop maintains consistent rotational velocity under varying loads. This dual capability is essential for high-precision CNC operations like milling, turning, and grinding.
Specifically, the FANUC A06B-6066-H003 operates within a temperature range of 0 to 40 degrees Celsius. This thermal tolerance guarantees reliable performance in standard factory environments. Additionally, the unit is rated to withstand vibration up to 5G, which minimizes the risk of connection loosening or component fatigue. It is also suitable for installations at altitudes up to 1000 meters above sea level, expanding its applicability across different geographic locations.
Furthermore, the drive features a space-saving and compact mechanical design. This characteristic simplifies integration into existing control panels or new machine builds. Its lightweight construction, at just 8.62 kg, facilitates easier handling during installation or maintenance.
Understanding the physical limits of the FANUC A06B-6066-H003 is vital for proper system planning. The operating temperature range is clearly defined as 0 to 40°C, so adequate ventilation or cooling should be considered in hotter environments. The maximum vibration tolerance is set at 5G, meaning it can endure typical industrial machine oscillations without performance degradation. In terms of altitude, the drive functions correctly up to 1000 meters above sea level. Beyond this elevation, derating may be necessary, although this is uncommon for most users.
Proper installation ensures the longevity and effectiveness of the FANUC A06B-6066-H003. Begin by mounting the drive securely on a flat, vertical surface within the control cabinet. Use appropriate M4 or M5 screws, and ensure adequate clearance around the unit for airflow. Next, connect the main power supply and the AC servo motor cables according to the terminal markings. Pay close attention to the grounding connection to prevent electrical noise interference.
After hardware mounting, proceed with the control wiring. This includes connecting the encoder feedback cable from the motor and the I/O signals from the CNC controller. Double-check all connections before powering up. Once powered, configure the basic parameters for motor type and current limits via the FANUC interface. Finally, perform a test run at low speed to verify that speed and current control loops are responding correctly. Always refer to the official FANUC manual for detailed wiring diagrams and parameter lists.
Your purchase of the FANUC A06B-6066-H003 includes a complete and secure package. The drive is carefully packed in a sturdy carton with anti-static protection and foam inserts to prevent transit damage. Inside the box, you will find the servo drive unit itself, along with a set of necessary connector plugs for power and signal wiring. A quick-start guide with basic installation steps is also included for convenience. For your logistical needs, we ship this item via trusted global carriers such as FedEx, UPS, or DHL. These services ensure timely and trackable delivery to your facility.
1. Is the FANUC A06B-6066-H003 compatible with all AC servo motors?
It is designed for FANUC AC servo motors specifically. For optimal performance, always pair this drive with a matching FANUC motor model as recommended in the product catalog.
2. What is the typical application for this servo drive?
This drive is commonly deployed in CNC machining centers, lathes, and grinding machines where precise speed and torque control are required for axis or spindle drives.
3. Does this unit support position control?
No, the A06B-6066-H003 primarily supports current and speed control loops. For position control, you would need a separate CNC controller or a different drive model with full closed-loop positioning.
4. What should I do if the drive shows an alarm code?
First, check the power supply and motor cable connections. Then, consult the FANUC alarm code list in the manual to identify the specific issue, such as overcurrent or overvoltage.
5. What are the shipping options for this product?
We ship the FANUC A06B-6066-H003 worldwide using FedEx, UPS, and DHL. All shipments are fully insured and tracked to ensure safe arrival.
| Brand Name | |
| Model No. | A06B-6066-H003 |
| Product Type | Servo Drive |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
