The FANUC A06B-6087-H115 is a high-performance power supply module specifically engineered for servo power conversion in CNC machining centers and industrial automation systems. This unit accepts a 3-phase input voltage of 200–230 V AC or DC, making it highly adaptable to various factory power configurations. It delivers a robust rated current of 63 A, ensuring ample power for multiple servo axes simultaneously. Moreover, the module achieves an impressive efficiency of over 95%, which minimizes energy loss and reduces operating costs. Its air-cooled thermal design and vertical or wall-mounted installation options offer flexibility for cabinet layouts.
The A06B-6087-H115 excels in converting incoming power into a stable DC bus for connected servo drives. The input voltage range covers 200–230 V, compatible with both AC and DC sources, while the input frequency automatically adapts to 50 or 60 Hz grids. This flexibility simplifies integration into global facilities. On the output side, it supplies 200–230 V AC/DC with a continuous rated current of 63 A, sufficient to support medium to large servo systems.
Furthermore, this power supply incorporates multiple protection mechanisms. Overcurrent protection safeguards against short circuits or motor stalls, while overvoltage protection prevents damage from supply surges. Overload protection ensures the unit shuts down safely under excessive load conditions. These features collectively enhance system reliability and reduce unplanned downtime. The operating temperature range spans 0°C to 55°C, covering typical workshop environments without derating.
Weighing 11.34 kg, the FANUC A06B-6087-H103 (please note: correct model for this section is A06B-6087-H115) is built with a compact yet sturdy enclosure. The unit employs forced air cooling via an internal fan, which maintains optimal component temperatures even at full load. Two mounting options are available: vertical mounting on a backplate or wall-mounted using the integrated brackets. This versatility helps engineers optimize panel space in new builds or retrofit projects.
Proper installation requires a minimum clearance of 100 mm above and below the unit for adequate airflow. Additionally, the cabinet should have ventilation grilles or an exhaust fan to expel warm air. For electrical connections, use appropriately sized copper conductors rated for 63 A continuous current. The input and output terminals are clearly marked, and the ground connection must be secured first to ensure safety.
The A06B-6087-H115 stands out due to its comprehensive built-in safeguards. The overload protection circuit monitors output current and initiates a controlled shutdown if the load exceeds 110% of rated value for an extended period. Overcurrent protection reacts almost instantly to short-circuit events, preventing catastrophic damage to internal components. Overvoltage protection clamps the DC bus voltage to a safe level, shielding downstream servo drives from harmful spikes.
These protective measures not only extend the service life of the power supply itself but also protect connected motors and drives. Consequently, the overall system uptime improves, and maintenance costs decrease. The unit also features LED status indicators for power-on, alarm, and ready states, simplifying diagnostics for maintenance personnel.

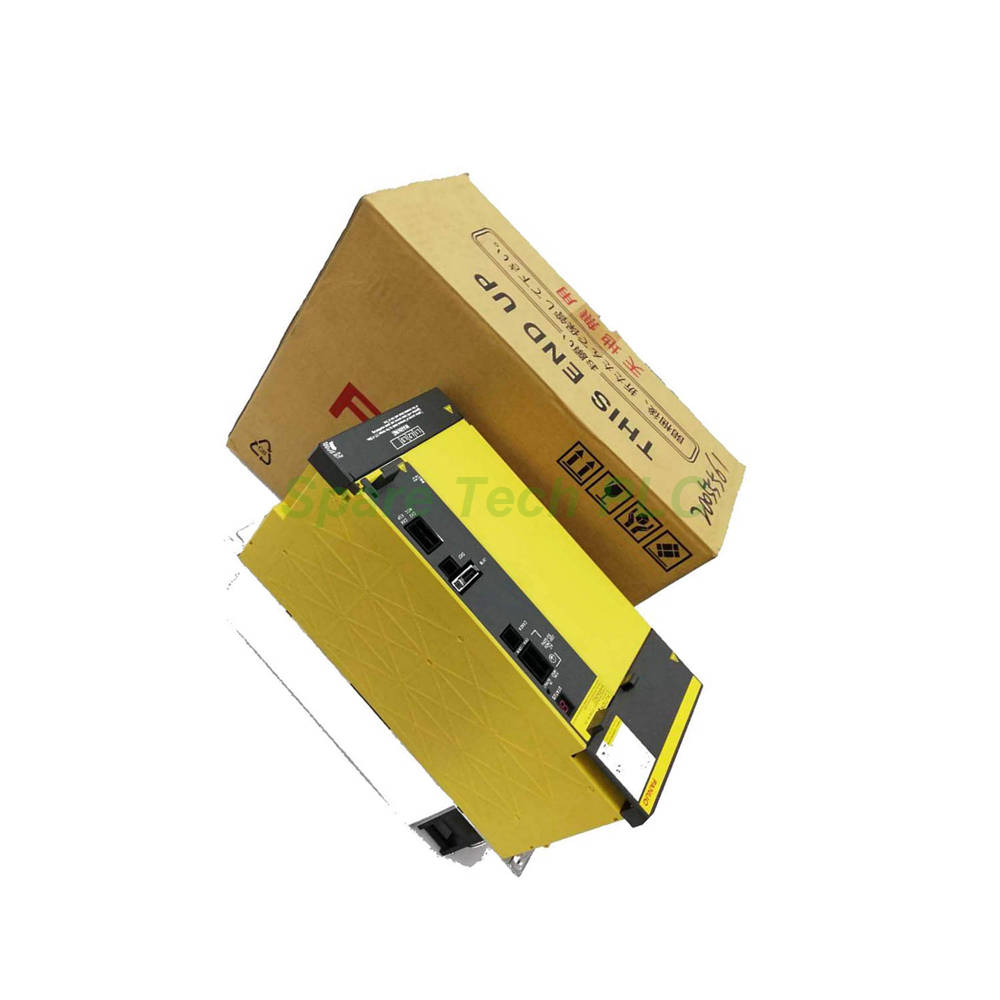

Each FANUC A06B-6087-H115 power supply is carefully packed to ensure safe delivery. The module is placed in an anti-static bag, surrounded by high-density foam, and secured inside a double-walled corrugated box. The package includes the power supply unit, a set of input/output terminal covers, and a mounting hardware kit. A quick-reference guide with basic installation steps is also provided. We ship all orders via FedEx, UPS, or DHL, offering real-time tracking and full insurance coverage. International shipments include all necessary customs documentation.
1. Can the A06B-6087-H115 operate on a single-phase supply?
No, this power supply requires a 3-phase input. Attempting to run it on single-phase will result in insufficient output current and potential damage.
2. What is the recommended cable size for the input connection?
For 63 A continuous current, we recommend using 10 mm² (AWG 8) copper wires with appropriate insulation ratings. Always consult local electrical codes.
3. How often should the cooling fan be replaced?
The fan typically has a lifespan of 40,000 hours. We recommend inspecting it annually and replacing it every 3–5 years under normal operating conditions.
4. Does this unit support regenerative energy handling?
Yes, the A06B-6087-H115 includes an internal regenerative circuit that dissipates braking energy. For high-inertia loads, an external regenerative resistor may be required.
5. What do the LED indicators on the front panel signify?
The green "POWER" LED lights when input voltage is present. The "READY" LED indicates normal DC bus voltage. A red "ALARM" LED signals a fault condition; refer to the manual for specific blink codes.
| Brand Name | |
| Model No. | A06B-6087-H115 |
| Product Type | Power Supply |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
