FANUC A06B-6124-H104 Servo Amplifier 400V 9.1A

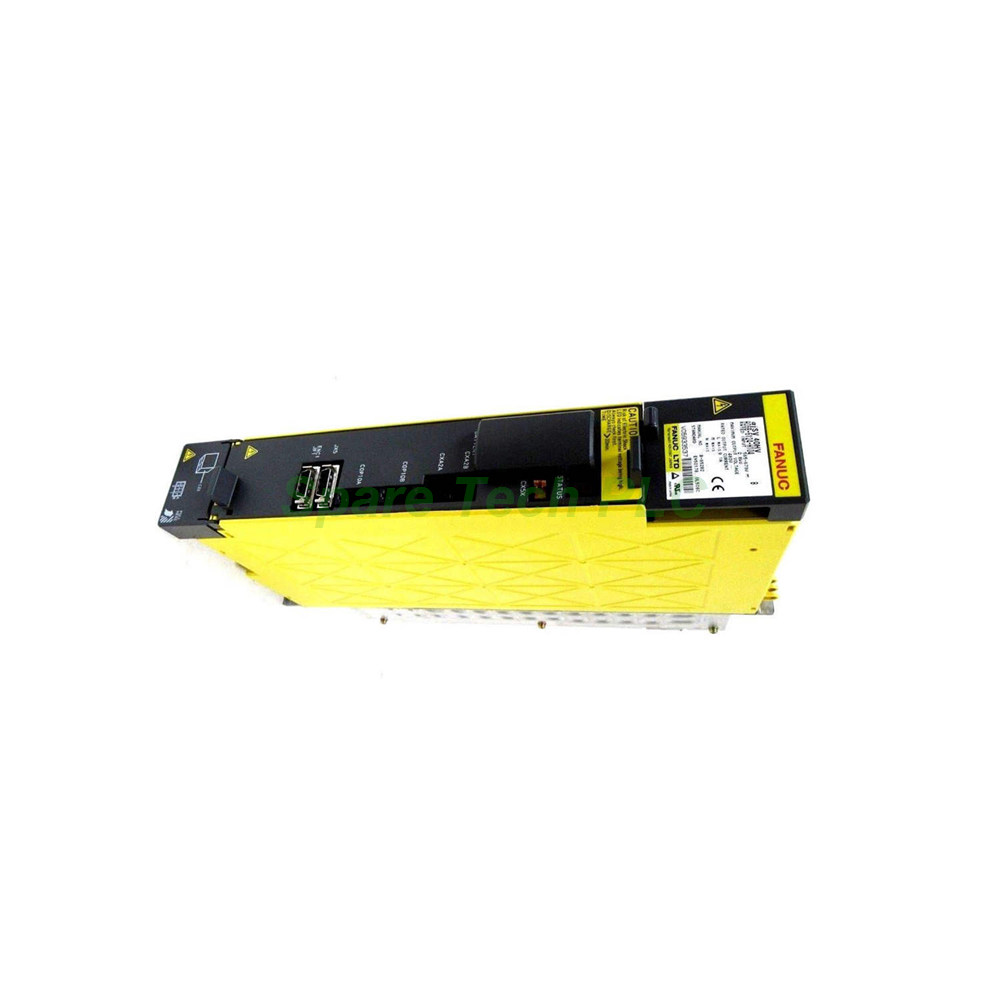

FANUC A06B-6124-H104 400V-Class Servo Amplifier for High-Voltage Systems

Product Introduction

The FANUC A06B-6124-H104 is a high-voltage servo amplifier module for single-axis motion control in industrial automation. This unit operates on a 400V voltage class and accepts a three-phase main power supply of 400–480 VAC. For control circuits, it requires a single-phase voltage of 200–240 VAC. The module provides a rated output current of 9.1 A (RMS) and handles peak currents up to 40 A, supporting medium-power servo motors effectively. Moreover, it features a 3 ms instantaneous power failure guarantee time, which helps maintain stability during brief supply dips. Its robust environmental design covers 0°C to 55°C operation and tolerates 90% RH humidity without condensation.

Electrical Specifications and Voltage Tolerance

The A06B-6124-H104 stands out for its high-voltage design, which reduces current draw and allows smaller cable sizes compared to 200V systems. The main power supply accepts a wide three-phase range of 400 VAC to 480 VAC, covering standard European and Asian industrial voltages. For the control circuit, a separate single-phase supply of 200 VAC to 240 VAC powers the logic and communication functions. This separation ensures that control electronics remain active even when the main power fluctuates.

Furthermore, the allowable voltage deviation spans -15% to +10%, including variations caused by load changes. This wide tolerance guarantees reliable operation even in facilities with unstable grid conditions. The power frequency is rated at 50/60 Hz with a ±1 Hz tolerance, accommodating most regional power standards. Additionally, the instantaneous power failure guarantee time of 3 ms allows the module to ride through short interruptions without tripping, effectively reducing nuisance alarms and production stops.

Current Ratings and Single-Axis Control

This servo amplifier focuses on single-axis applications, making it ideal for individual feed axes or spindle drives in CNC machines. The rated output current of 9.1 A (RMS) supports continuous operation at nominal load. Meanwhile, the peak current limit of 40 A handles acceleration, heavy cutting, and torque bursts. This combination of continuous and peak ratings ensures smooth performance during dynamic movements.

For optimal results, connect a servo motor whose rated current matches the amplifier's 9.1 A specification. The module's current control loop automatically regulates torque output, maintaining precision even under variable loads. Similarly, the speed control loop works in conjunction with the encoder feedback to deliver accurate velocity regulation across the entire operating range.

Environmental and Mechanical Parameters

The FANUC A06B-6124-H104 is built to withstand diverse industrial environments. The ambient operational temperature ranges from 0°C to 55°C, covering typical factory floors without external cooling. For storage, the unit tolerates temperatures from -20°C to 60°C, protecting it during transport or seasonal shutdowns. Humidity levels are specified at 90% RH or below, with the crucial condition that no condensation occurs. This humidity tolerance is particularly important in coastal or high-moisture regions.

Operational vibration is limited to below 0.5G, which is standard for servo amplifiers mounted on solid machine structures. To minimize vibration exposure, always mount the unit on a rigid, dampened surface. Weighing only 5.44 kg, the module is compact and lightweight, simplifying both installation and maintenance.

Installation and Wiring Guidelines

Proper installation of the A06B-6124-H104 follows standard FANUC practices. First, mount the unit vertically on a flat metal plate inside the control cabinet. Ensure at least 100 mm clearance above and below for airflow, and 50 mm on each side. Use M5 screws with appropriate torque to secure the module. Next, connect the three-phase main power input to terminals L1, L2, and L3. Then, connect the single-phase control supply to terminals R0 and S0.

After that, wire the motor output terminals to the servo motor's U, V, and W phases. Use shielded cables for the encoder feedback and control signal lines, grounding the shields at both ends where possible. Also, connect the communication cable to the CNC controller or motion controller. Once you check all wiring, apply control voltage first, then main power. Finally, configure the amplifier parameters through the FANUC CNC interface, and perform a low-speed test run to verify proper axis movement.

Packaging and Shipping Information

We carefully package each FANUC A06B-6124-H104 servo amplifier for safe global delivery. The unit comes sealed in an anti-static protective bag, surrounded by shock-absorbing foam, and placed inside a robust double-wall carton. Inside the box, you will find the amplifier module, a set of terminal connectors for power and signal wiring, and a basic installation reference card. We ship all orders via FedEx, UPS, or DHL, providing tracking numbers and full insurance coverage for your peace of mind.

Frequently Asked Questions (FAQ)

1. Can the A06B-6124-H104 drive a spindle motor?
Yes, this single-axis amplifier suits spindle control as long as the motor's rated current does not exceed 9.1 A RMS and peak requirements stay within 40 A.

2. What happens if the control voltage fails?
The A06B-6124-H104 will shut down and trigger an alarm. Restoring control voltage and resetting the system will allow normal operation to resume.

3. Is this module compatible with 200V power systems?
No, this unit specifically works with 400V class systems. Using it with 200V input will result in insufficient output power and potential malfunction.

4. How do I interpret the LED status indicators?
A green "POWER" LED confirms control voltage is present. A green "READY" LED indicates the DC bus is charged. A red "ALARM" LED signals a fault; check the alarm code on the CNC display.

5. What is the purpose of the 3 ms power failure guarantee?
This feature ensures the module continues operating through short supply interruptions, effectively preventing unnecessary machine stoppages during brief power dips.
