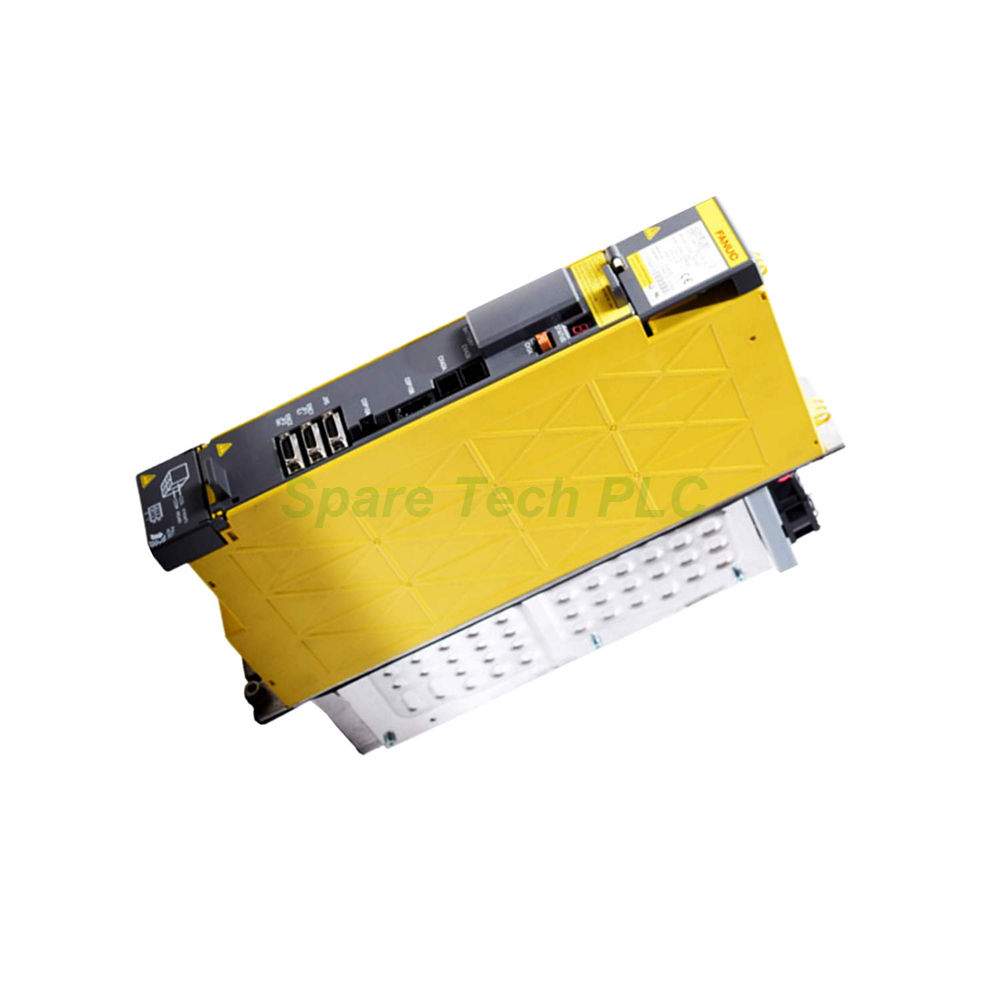

The FANUC A06B-6117-H209 is a high-capacity servo amplifier module designed to drive two AC servo motors independently. This unit delivers a rated output current of 19A on both the L-axis and M-axis, making it ideal for multi-axis CNC machining centers, robotics, and automated production lines. It accepts a DC input voltage of 283–339 VDC and has a rated input power of 11 kW, ensuring sufficient energy for demanding tasks. The output voltage ranges from 200 to 240 VAC, while the output frequency spans 0.1 to 800 Hz for flexible speed control. Furthermore, this module operates reliably in ambient temperatures from 0°C to 55°C and handles humidity up to 90% RH without condensation.
The A06B-6117-H209 stands out with its dual-axis design, which reduces cabinet space and overall system cost compared to using two separate single-axis amplifiers. Each axis provides a continuous rated current of 19A, supporting medium-to-large servo motors commonly used in feed axes and spindle drives. The output frequency range of 0.1 to 800 Hz allows precise speed regulation from ultra-slow positioning to high-speed rotation. This versatility is critical for applications like milling, turning, and laser cutting.
On the input side, the module operates with a DC bus voltage between 283 and 339 VDC, typically supplied by a FANUC power supply unit. The rated input power of 11 kW ensures the module can handle peak loads during acceleration and heavy cutting. Additionally, the unit accepts both 50 Hz and 60 Hz input frequencies, making it compatible with power systems worldwide. The output voltage is stabilized at 200–240 VAC, matching standard FANUC servo motor ratings.
The FANUC A06B-6117-H209 is built to endure harsh industrial conditions. Its operating temperature range covers 0°C to 55°C, accommodating unairconditioned factory floors. The module maintains full performance within this range without derating, provided adequate ventilation is available. Humidity tolerance reaches 90% RH or less, as long as no condensation forms inside the unit. This feature is particularly important in regions with high seasonal humidity or in processes that generate steam or mist.
For cooling, this amplifier uses a built-in fan with forced air circulation. Proper installation requires at least 100 mm of clearance above and below the unit to allow unobstructed airflow. The cabinet should also include exhaust vents or an external fan to prevent heat buildup. Weighing 11.34 kg, the module is sturdy yet manageable for installation or replacement tasks.
This servo amplifier incorporates multiple protective functions to safeguard both itself and connected motors. Overcurrent protection trips instantly during short circuits or phase-to-phase faults. Overvoltage protection clamps the DC bus to prevent damage from regenerative energy or supply surges. Overload protection monitors thermal conditions and reduces output or shuts down if excessive load persists. These features collectively enhance system reliability and reduce downtime.
Integration with FANUC CNC controllers is seamless through the standard optical communication interface. This connection transmits command signals, feedback data, and status information in real time. Parameter configuration is performed via the CNC panel or FANUC Ladder software, allowing customization of current limits, gain settings, and filter parameters. For troubleshooting, the module provides LED indicators for power, ready, and alarm states.
Proper installation ensures optimal performance and longevity of the A06B-6117-H209. Start by mounting the unit vertically on a flat, grounded metal plate inside the control cabinet. Use M5 screws and ensure the mounting surface can support the 11.34 kg weight. Maintain the recommended clearance for airflow: 100 mm top and bottom, and 50 mm on each side. Next, connect the DC input cables from the power supply to the L+ and L- terminals, observing correct polarity.
After that, wire the motor output terminals for both axes. The L-axis connects to the first servo motor, while the M-axis connects to the second. Use shielded cables for the encoder feedback lines to minimize noise interference. Additionally, connect the control I/O signals and the optical communication cable to the CNC controller. Once all wiring is verified, apply power and configure the basic parameters. Perform a test run on each axis separately at low speed to confirm proper commutation and direction.
Each FANUC A06B-6117-H209 servo amplifier is packaged with care to ensure damage-free delivery. The module is enclosed in an anti-static bag and cushioned with custom-molded foam inside a reinforced carton. The package includes the amplifier unit, terminal blocks for power and signal connections, and a mounting hardware kit. A simplified installation guide is also provided for quick reference. We ship all orders through FedEx, UPS, or DHL, offering tracking numbers and full insurance coverage.
1. Can the A06B-6117-H209 drive two motors with different power ratings?
Yes, each axis operates independently. You can connect motors with different current requirements as long as each does not exceed 19A continuously.
2. What is the difference between the L-axis and M-axis?
The L-axis typically controls the linear feed axis, while the M-axis controls the main spindle or a rotary axis. Both have identical current ratings.
3. Does this module support absolute encoders?
Yes, the A06B-6117-H209 is compatible with FANUC absolute pulse coders through the same feedback interface. Battery backup is required for absolute position retention.
4. How do I reset an alarm condition on this amplifier?
First, identify the cause of the alarm. Then, cycle the control power off and on, or use the CNC reset function. For persistent alarms, consult the FANUC alarm code list.
5. What maintenance is recommended for this unit?
Inspect the cooling fan annually for dust buildup and replace it every 40,000 hours of operation. Also, check all terminal connections for tightness during routine service.
| Brand Name | |
| Model No. | A06B-6117-H209 |
| Product Type | Servo Amplifier Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
