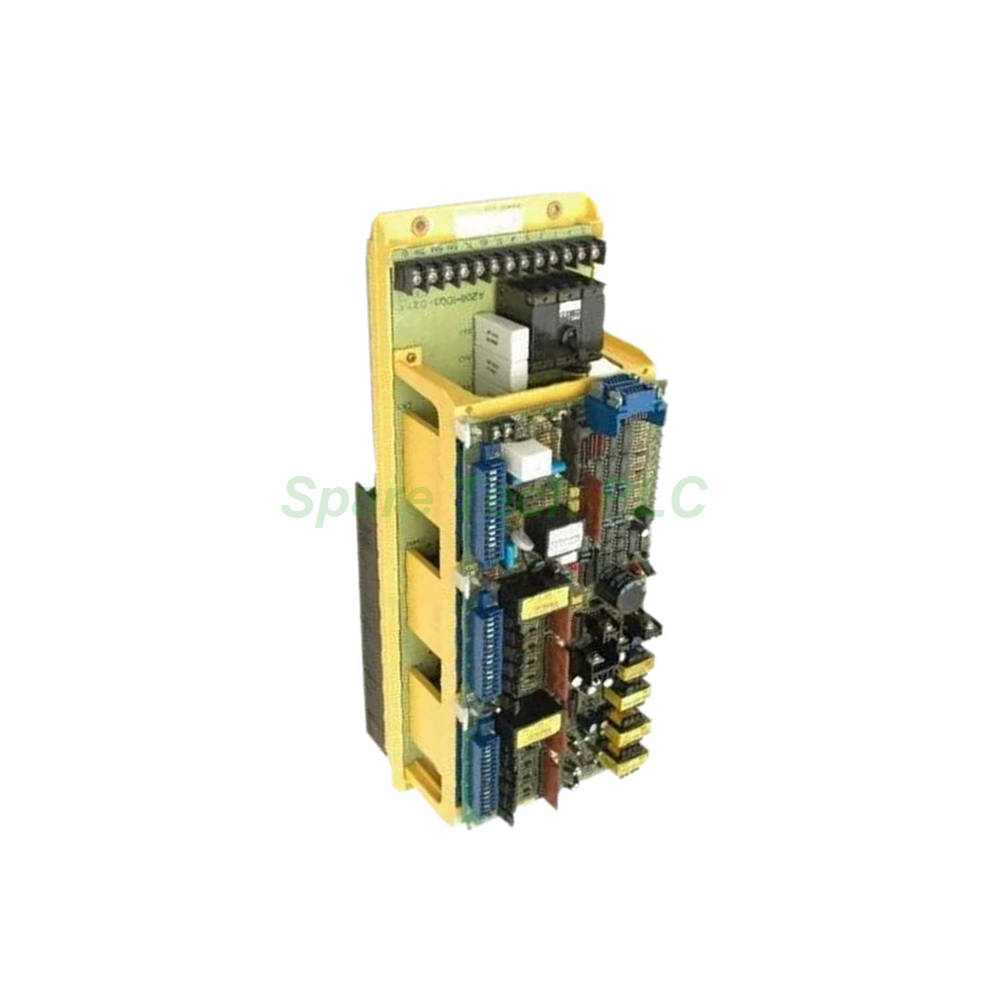

FANUC A06B-6058-H224 AC Servo Drive 2-Axis CNC

A06B-6058-H224 FANUC Servo Drive for Digital CNC

Product Introduction

The A06B-6058-H224 from FANUC is a high-performance AC servo drive built for demanding CNC applications. This unit controls two axes simultaneously, ensuring coordinated motion and accurate positioning. It uses a digital drive architecture to improve signal processing and response times. Furthermore, this drive model works reliably in ambient temperatures ranging from 0 to 40 degrees Celsius. Its robust design includes a 5G vibration tolerance and an altitude rating of 1000 meters. With built-in servo amplifier capabilities, the A06B-6058-H224 enhances the overall efficiency of automated production systems.

Key Technical Specifications

This servo drive supports a wide range of industrial requirements. First, its dual-axis design reduces the need for multiple separate drives, saving panel space and wiring costs. The digital interface enables faster communication with the CNC controller, which results in smoother motor operation. Additionally, this unit is fully compatible with 0S/5S and 10S drive models, offering flexibility for various motor sizes. The integrated servo amplifier functionality boosts torque and speed control precision. Therefore, the A06B-6058-H224 is an ideal choice for milling, turning, and other precision machining processes.

Mechanical and Environmental Ratings

The drive operates efficiently within a 0 to 40°C temperature range, making it suitable for most factory floors. Meanwhile, its maximum vibration tolerance of 5G ensures stable performance even on equipment with moderate mechanical shock. The unit is also rated for installation up to 1000 meters above sea level, which accommodates high-altitude facilities. Weighing only 8.62 kg, this compact drive simplifies mounting and handling during installation. Moreover, its rugged construction reduces the risk of failure in dusty or warm environments. These mechanical specifications contribute to long-term dependability and reduced maintenance intervals.

Installation Guidelines

Proper installation maximizes the service life of the A06B-6058-H224. Firstly, mount the drive on a flat, vertical panel with adequate clearance for airflow. Ensure the ambient temperature stays below 40°C and above 0°C during operation. Use shielded cables for all power and signal connections to minimize electrical noise. Additionally, secure the grounding terminal to a low-impedance earth ground for safety and stability. It is also advisable to install a protective circuit breaker on the input power line. Following these steps will help you achieve optimal performance from this FANUC servo drive.

Packaging and Shipping Information

Each unit comes carefully packed to prevent transit damage. The package includes the A06B-6058-H224 AC servo drive, a user manual, and necessary mounting hardware. Specifically, you will receive the drive unit, a quick-start guide, and terminal connectors. All items are sealed in anti-static packaging. We ship orders via FedEx, UPS, or DHL, depending on your location. Tracking information will be provided once the order dispatches. Please inspect the package upon arrival and report any visible damage immediately.

Frequently Asked Questions (FAQ)

1. What CNC systems are compatible with this drive?
This drive supports most FANUC CNC controllers that use a digital drive interface. It also works with other systems that accept standard servo command signals.

2. Can this drive operate in high-humidity environments?
Yes, but we recommend keeping relative humidity below 90% non-condensing. Excessive moisture may affect internal components over time.

3. How do I set up the drive for a two-axis application?
Refer to the user manual for parameter configuration. You will need to assign each axis its own motor and feedback settings during initial setup.

4. What is the typical lifespan of this servo drive?
With proper installation and cooling, the A06B-6058-H224 typically lasts over 10 years in normal industrial use. Regular cleaning of air vents extends its life.

5. Is technical support available for this product?
Yes, our team can assist with basic installation questions. For advanced troubleshooting, please contact your local FANUC service representative.
