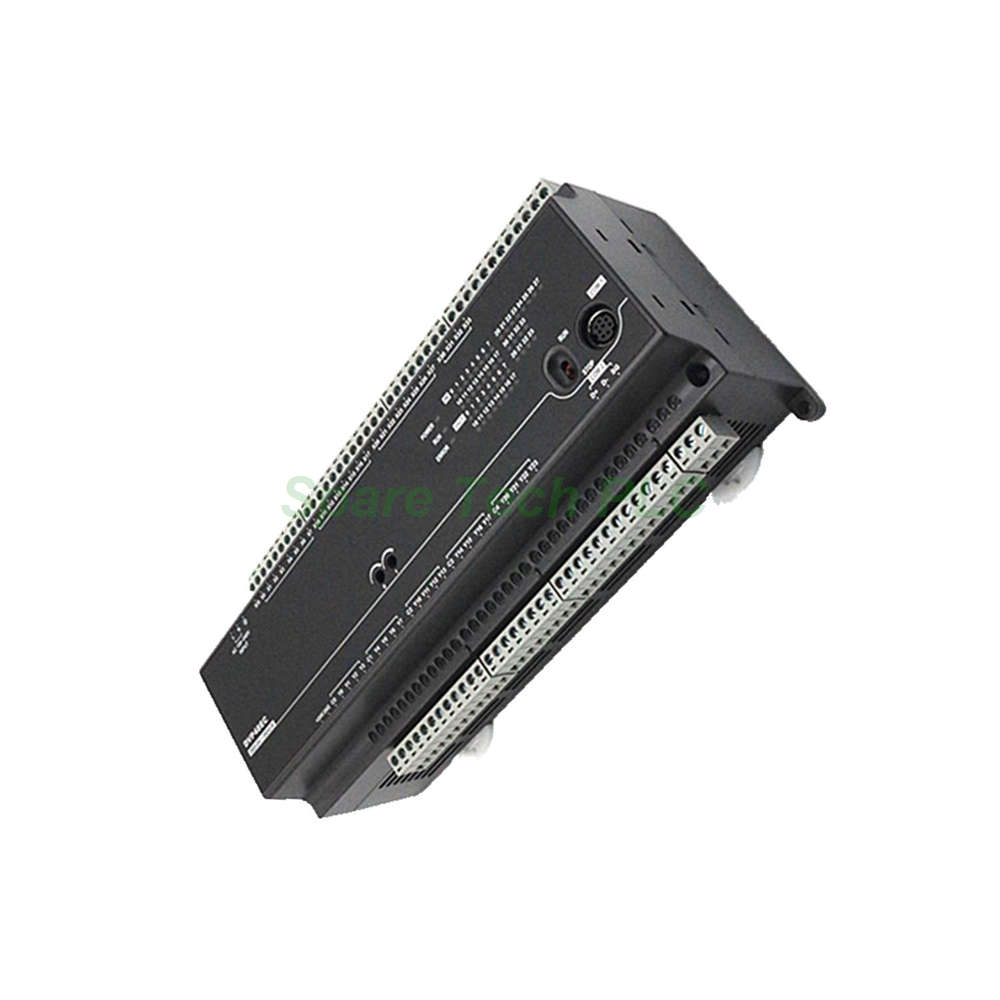

The DVP40EC00T3 is a main processing unit from Delta's DVP-EC3 Series. This compact PLC offers 40 built-in I/O points. It features 24 inputs and 16 transistor (NPN) outputs. Furthermore, the unit provides a program capacity of 4k steps. This capacity handles moderate-sized control applications effectively. The DVP40EC00T3 also supports two independent high-speed pulse outputs. Y0 and Y1 deliver up to 10 kHz each. Additionally, the built-in RS-232 and RS-485 ports facilitate seamless communication with other devices. This makes the PLC suitable for sequence control and simple Modbus networking tasks.
The DVP40EC00T3 integrates 40 I/O points into a single unit. Specifically, it provides 24 digital inputs and 16 transistor (NPN) outputs. This configuration suits applications requiring a balanced mix of inputs and outputs. The program memory holds up to 4k steps. This capacity supports medium-complexity logic programs. Meanwhile, the unit's compact design saves valuable panel space. The transistor outputs respond quickly to logic commands. Additionally, they support high-frequency switching operations.
This PLC excels in motion control applications. The DVP40EC00T3 supports two independent high-speed pulse outputs. Y0 and Y1 deliver pulses up to 10 kHz each. Consequently, the PLC can control stepper motors or servo drives directly. This capability enables precise positioning and speed control. Furthermore, the high-speed counters handle fast input signals. Two high-speed counter points operate at up to 10 kHz. This makes the PLC suitable for applications involving encoders or high-speed sensors.
The DVP40EC00T3 includes versatile communication features. Built-in RS-232 and RS-485 ports provide flexible connectivity. The RS-485 port supports Modbus ASCII and RTU protocols. This enables easy integration with Delta's VFD drives and HMIs. It also connects with third-party devices. Meanwhile, the RS-232 port facilitates programming and debugging. Users can connect a programming cable directly to the PLC. This simplifies configuration and monitoring tasks.
This PLC operates reliably in industrial environments. The DVP40EC00T3 has a compact form factor. It measures approximately 145mm x 86mm x 63mm. The operating temperature ranges from 0°C to 55°C. Relative humidity should remain between 5% and 95% (non-condensing). The unit uses a transistor (NPN) output method. This provides fast switching speeds and long life. Additionally, the PLC requires a 24 VDC power supply. Ensure the power supply provides adequate current capacity for the unit and connected devices.
1. DIN-Rail Mounting
First, mount the DVP40EC00T3 onto a standard 35mm DIN rail. Click the unit firmly into place. Ensure the locking mechanism engages securely. The compact design saves valuable panel space. Leave adequate clearance for wiring and ventilation.
2. Power and I/O Wiring
Next, connect the 24 VDC power supply to the PLC. Verify the polarity matches the unit's specifications. Connect input devices to the input terminals. Connect output loads to the transistor output terminals. Ensure the load current does not exceed the output rating. Additionally, use appropriate wire gauges for each connection.
3. Communication Connections
Then, connect the RS-232 port for programming. Use a compatible programming cable. For network communication, connect the RS-485 port. This port supports Modbus ASCII and RTU protocols. Multiple devices can connect on the same RS-485 network. Configure the communication parameters accordingly.
4. Programming and Operation
Finally, download the control program to the DVP40EC00T3. Use Delta's programming software. The program capacity of 4k steps accommodates moderate logic applications. After downloading, place the PLC in RUN mode. Observe the status indicators for normal operation. The high-speed pulse outputs Y0 and Y1 are now ready for motion control tasks.
(1) x DVP40EC00T3 PLC Main Processing Unit
(1) x Product Information Sheet
(Note: Programming cables, software, and communication accessories are not included. This package does not contain certificates or warranty documents.)
All orders ship using premier courier services. We ensure rapid and dependable delivery worldwide. We primarily use Fedex, UPS, and DHL. Tracking numbers will be provided upon shipment dispatch.
1. What is the program capacity of the DVP40EC00T3?
The DVP40EC00T3 offers a program capacity of 4k steps. This capacity handles medium-complexity sequence control applications. For more extensive programs, consider other DVP series models with larger memory.
2. Does this PLC support high-speed pulse output?
Yes, the DVP40EC00T3 supports two independent high-speed pulse outputs. Y0 and Y1 each provide up to 10 kHz. This makes the PLC suitable for stepper motor and servo control applications.
3. What communication protocols does the RS-485 port support?
The built-in RS-485 port supports Modbus ASCII and Modbus RTU protocols. This enables seamless communication with Delta VFD drives, HMIs, and other third-party Modbus devices.
4. How many I/O points does the DVP40EC00T3 provide?
The DVP40EC00T3 provides 40 built-in I/O points. Specifically, this includes 24 digital inputs and 16 transistor (NPN) outputs. This configuration suits a wide range of control applications.
5. What type of outputs does this PLC have?
The DVP40EC00T3 uses transistor (NPN) outputs. This output type provides fast switching speeds. It also offers long operational life compared to relay outputs. However, it requires external power for output loads.
