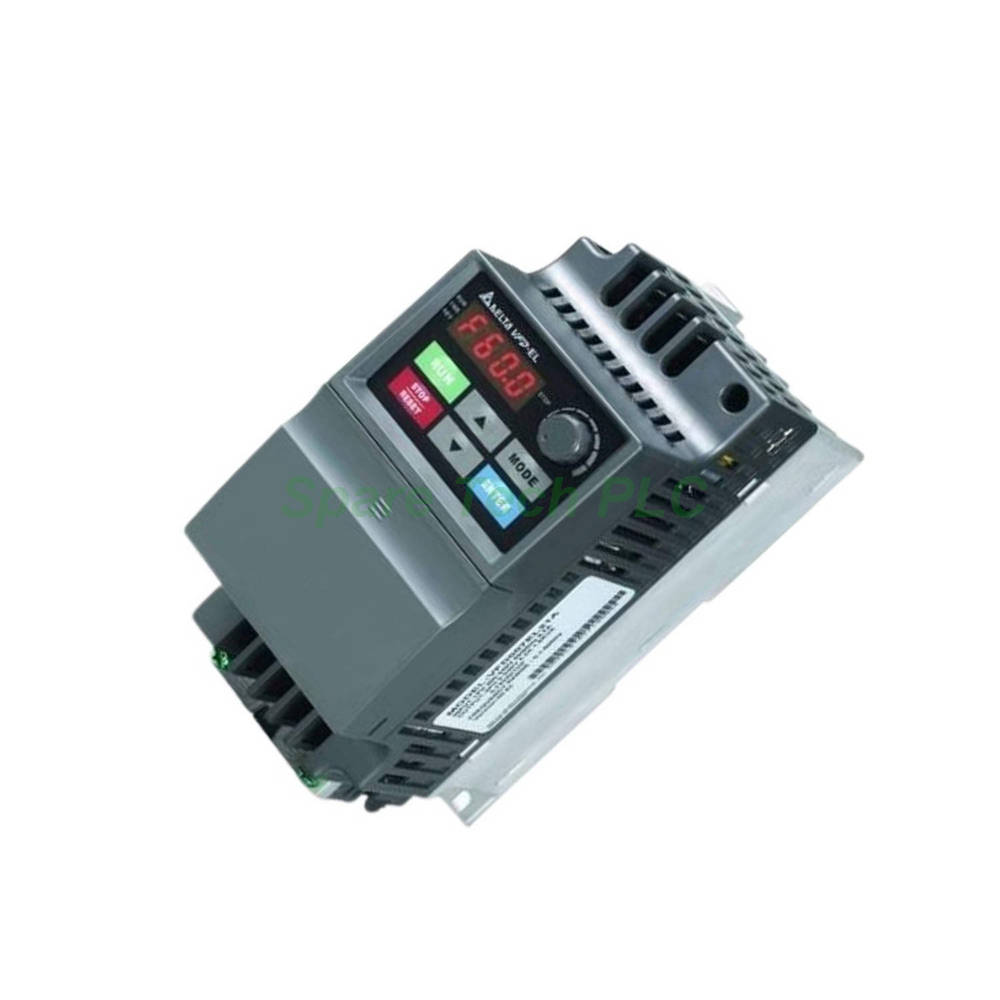

The VFD007EL23A belongs to Delta's VFD-EL Series of micro drives. This compact AC drive delivers 1 Horsepower (0.75 kW) at 230 Volts. It provides 4.2 Amps for constant torque applications. The drive accepts three-phase input from 200 to 240 Volts AC. Furthermore, the VFD007EL23A features a built-in keypad. This allows for convenient local programming and monitoring. The drive supports a maximum output frequency of 600 Hertz. This suits various motor speed control requirements. Additionally, the compact Frame A design saves valuable panel space. The IP20 enclosure ensures protection in typical indoor installations.
The VFD007EL23A accepts an input voltage range of 200 to 240 Volts AC. Its nominal input voltage is 208 to 240 Volts AC. For constant torque applications, the drive delivers 4.2 Amps. This corresponds to 1 Horsepower (0.75 kW). The drive supports a maximum output frequency of 600 Hertz. The input phase is three-phase. This configuration suits industrial power systems. The drive includes built-in dynamic braking and DC injection braking. These features provide effective motor stopping and speed control.
This drive offers reliable V/Hz (scalar) motor control. The VFD007EL23A provides sensorless vector control capability. This enhances motor performance across various speed ranges. The drive includes multiple built-in functions. For instance, it offers PID control for process applications. It also supports simple PLC functionality. Furthermore, the drive includes energy-saving features. These optimize motor efficiency during operation. The built-in keypad provides easy access to parameters. Users can monitor status and adjust settings conveniently.
The VFD007EL23A includes a built-in RS-485 communication port. This port supports the standard Modbus protocol. Consequently, the drive integrates seamlessly into automation networks. Users can connect multiple drives on a single network. Additionally, the Modbus protocol enables remote monitoring and control. The drive also supports various digital and analog I/O points. These include multi-function input and output terminals. This flexibility accommodates diverse application requirements.
The VFD007EL23A features a compact Frame A design. Its dimensions are 6.86 inches in height, 2.83 inches in width, and 5.36 inches in depth. This small footprint saves panel space. The IP20 enclosure rating suits indoor installations. The operating temperature ranges from -10°C to 50°C. Relative humidity should remain between 5% and 95% (non-condensing). The drive includes a built-in keypad. This provides convenient local operation. The dynamic braking transistor is included. This eliminates the need for external braking components in many applications.
1. Mounting the Drive
First, mount the VFD007EL23A vertically on a flat surface. Ensure proper clearance for airflow. The Frame A design saves space. However, maintain adequate ventilation around the drive. Use appropriate mounting hardware.
2. Power Wiring
Next, connect the three-phase 230V input power to the appropriate terminals. Connect the motor leads to the output terminals. Verify the voltage matches the drive's specifications of 200 to 240 Volts AC. Additionally, ensure proper grounding. This protects against electrical noise and safety hazards.
3. Control Wiring
Then, connect control wires to the terminal block. The VFD007EL23A supports various control configurations. For instance, use digital inputs for start/stop and direction. Connect the RS-485 port for Modbus communication. Ensure proper shielding for control wiring.
4. Keypad Configuration
Finally, use the built-in keypad to configure parameters. Set motor parameters such as voltage, current, and frequency. Additionally, configure the control mode. The VFD007EL23A supports V/Hz and sensorless vector control. After configuration, perform a test run. Verify the motor operates correctly.
(1) x VFD007EL23A AC Drive
(1) x Built-in Keypad
(1) x Product Information Sheet
(Note: Cables, braking resistors, and communication accessories are not included. This package does not contain certificates or warranty documents.)
All orders ship using premier courier services. We ensure rapid and dependable delivery worldwide. We primarily use Fedex, UPS, and DHL. Tracking numbers will be provided upon shipment dispatch.
1. What is the power rating of the VFD007EL23A?
The VFD007EL23A delivers 1 Horsepower (0.75 kW) at 230V. Its constant torque current rating is 4.2 Amps. This suits small motor applications such as fans, pumps, and conveyors.
2. Does this drive support Modbus communication?
Yes, the VFD007EL23A includes a built-in RS-485 port supporting standard Modbus protocol. This enables seamless integration into automation networks and remote monitoring capabilities.
3. What control modes does the VFD007EL23A support?
The VFD007EL23A supports V/Hz (scalar) control and sensorless vector control. The sensorless vector mode provides better speed regulation and torque performance across various operating conditions.
4. Does this drive include a braking transistor?
Yes, the VFD007EL23A includes a built-in dynamic braking transistor. Users can connect an external braking resistor for enhanced braking performance when needed.
5. What is the maximum output frequency of this drive?
The VFD007EL23A supports a maximum output frequency of 600 Hertz. This wide frequency range accommodates high-speed motor applications.
