BMXNOE0100H | Schneider Electric Modicon M340 Ethernet TCP/IP Module

Name: BMXNOE0100H | Schneider Electric Modicon M340 Ethernet TCP/IP Module
Brand: N/A
Availability: InStock
Rating: 4.6 (16 reviews)

BMXNOE0100H

Manufacturer: N/A
Series: N/A
Model Number: BMXNOE0100H
Weight: N/A
Condition: In Stock
Availability: 100% Original Brand New
Product Origin: U.S.A
Shipping port: Xiamen
Warranty: 12 Month

BMXNOE0100H: The Reliable Ethernet Backbone for Modicon M340 Systems

When your M340 rack needs dependable plant-floor networking, the Schneider Electric BMXNOE0100H delivers. This Ethernet TCP/IP network module brings Modbus/TCP connectivity to the Modicon M340 automation platform, and it is built specifically for severe environments. A conformal coating protects the electronics against gas, dust, sand, salt, mold, and fungal spores. For maintenance engineers, that means fewer nuisance faults and longer service intervals.

Key Technical Specifications

Product type: Ethernet TCP/IP network module for the Modicon M340 automation platform
Integrated connection: Ethernet TCP/IP RJ45, 10/100 Mbit/s, 1 twisted pair, Transparent Ready class B30
Port type: 10BASE-T/100BASE-TX
Memory: Supplied flash memory card (BMXRWSC016M) for application saving and web server activation
Current consumption: 90 mA at 24 V DC, internal power supply via rack
Operating temperature: -13…158 °F (-25…70 °C)
Relative humidity: 10…95 % without condensation
IP degree of protection: IP20
Protective treatment: Conformal coating
Module format: Standard
Product weight: 0.4 lb (US) (0.2 kg)

Communication Services That Simplify Integration

The BMXNOE0100H supports a broad set of services: bandwidth management, I/O scanning, Modbus TCP messaging, Global Data, FDR server, SNMP network administration, Rack Viewer, and a configurable web server. A Data Editor is available via PC terminal. These services let you monitor I/O, push configuration updates, and diagnose network health without pulling the module from the rack.

Front-Panel Diagnostics at a Glance

Six LEDs give you immediate status: green for Ethernet activity (ETH ACT), processor running (RUN), and Ethernet status (ETH STS); red for data rate (ETH 100), memory card fault (CARD ERR), and processor or system fault (ERR). A RESET push-button enables cold restart. For maintenance teams, this means faster fault isolation and less downtime.

Built for Harsh Plant Environments

The BMXNOE0100H carries certifications including CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, and IECEx zone 2/22. It meets IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, IEC 61850-3 location G, and IEC 60079-0. Environmental characteristics include gas resistant class Gx ISA S71.04, gas resistant class 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, mold growth resistant class 3B2, and fungal spore resistant class 3B2. It is also rated for hazardous location class I division 2.

Installation and Maintenance Notes

Mount the module in a standard M340 rack slot. Power comes internally via the rack, so no separate supply wiring is required. Verify the flash memory card (BMXRWSC016M) is seated correctly before power-up. Inspect the RJ45 port and LEDs periodically for dust or damage. Follow Schneider Electric's safety manual for all maintenance. Please verify current lifecycle status and availability with SpareTech Plc before ordering.

Why Buy the BMXNOE0100H from SpareTech Plc

SpareTech Plc supplies genuine parts, fast shipping, and expert technical selection support. Our team helps you confirm compatibility with your existing M340 rack and network architecture. Contact SpareTech Plc today for pricing and availability.

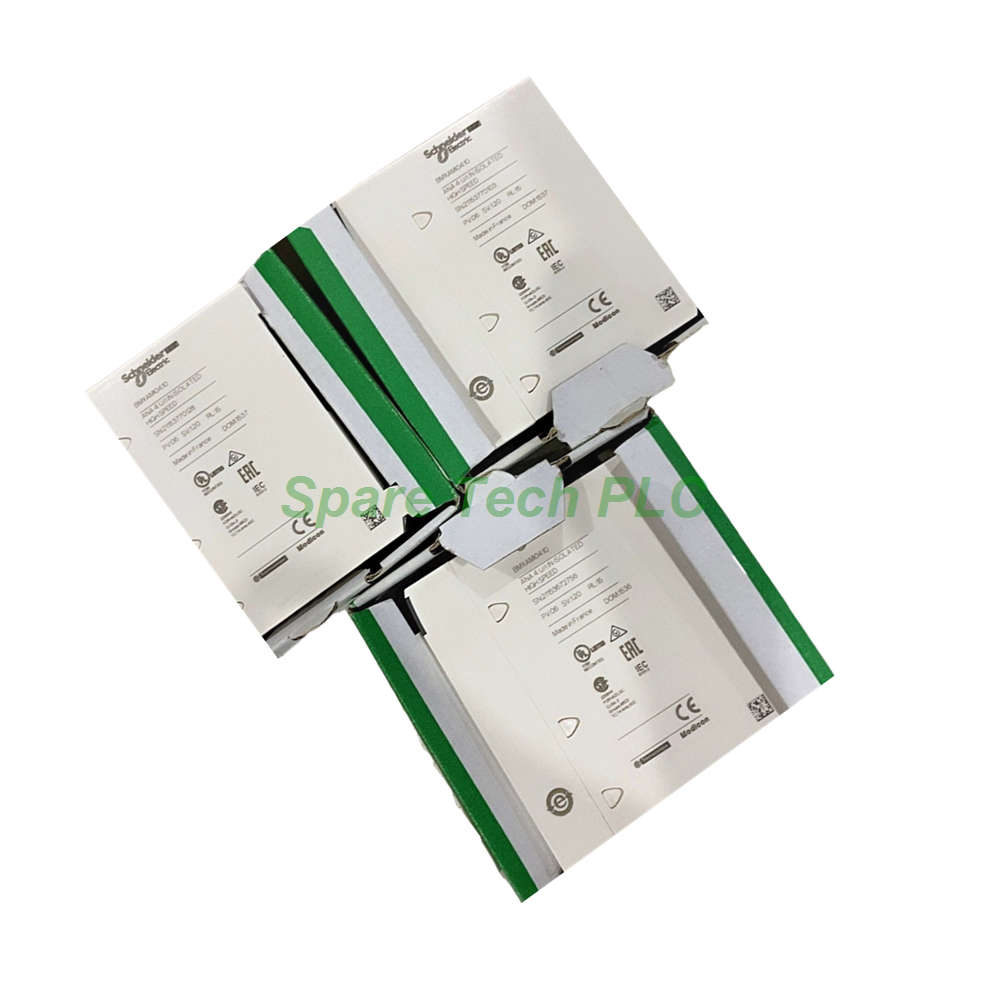

Figure 1: Front view of the Schneider Electric BMXNOE0100H Ethernet TCP/IP network module showing its physical design and enclosure.

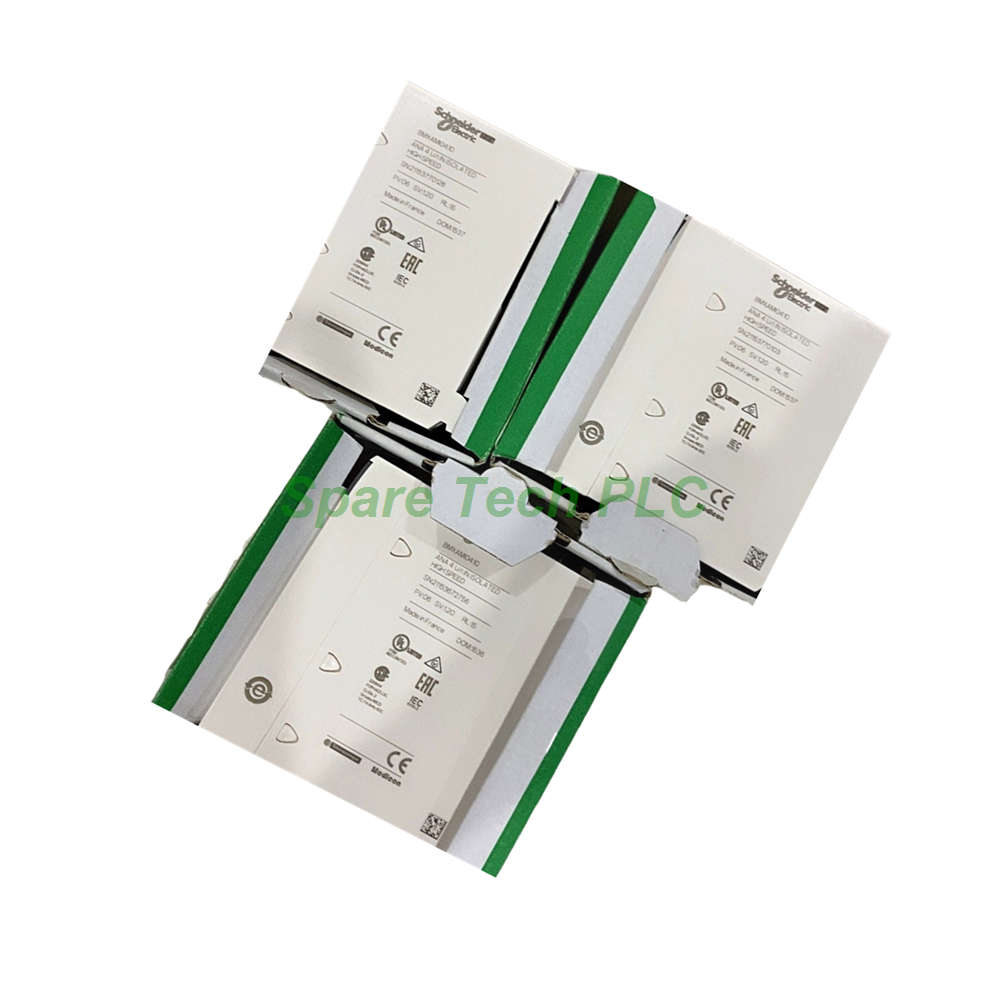

Figure 2: Technical layout and connection details for the Schneider Electric BMXNOE0100H Ethernet TCP/IP network module.

Attention: The above product information is sourced from the internet and cannot be guaranteed to be authentic. For specific product parameters and prices, please contact SpareTech PLC professionals in a timely manner.

Brand Name
Model No.	BMXNOE0100H
Product Type	Ethernet TCP/IP network module
hasMerchantReturnPolicy	Adjust according to reality
Shippingdetails	Adjust according to reality

network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card, for severe environments BMXNOE0100HMain Range of Product Modicon M340 automation platform Product or Component Type Ethernet TCP/IP network module Product Specific Application For severe environments Concept Transparent Ready Integrated connection type Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class B30 Protective treatment Conformal coating Complementary Communication service Bandwidth management Data Editor (via PC terminal) FDR server Rack Viewer SNMP network administrator Global Data I/O scanning Modbus TCP messaging Web server configurable Port Ethernet 10BASE-T/100BASE-TX Memory description Supplied Flash memory card (BMXRWSC016M) Memory usage Application saving Activating the standard web server Supply Internal power supply via rack Marking CE Local signalling 1 LED (green) for activity on Ethernet network (ETH ACT) 1 LED (green) for processor running (RUN) 1 LED (green) for status of Ethernet network (ETH STS) 1 LED (red) for data rate (ETH 100) 1 LED (red) for memory card fault (CARD ERR) 1 LED (red) for processor or system fault (ERR) Control Type RESET push-button cold restart Current consumption 90 mA 24 V DC Module format Standard Product Weight 0.4 lb(US) (0.2 kg) Environment Ambient Air Temperature for Operation -13…158 °F (-25…70 °C) Relative Humidity 10…95 % without condensation IP Degree of Protection IP20 Directives 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive Product certifications CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 Standards IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G IEC 60079-0 Environmental characteristic Gas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant level 2 IEC 68252 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3 Hazardous location class I division 2 Ordering and shipping details Category US1PC3418160 Discount Schedule PC34 GTIN 3595864024462 Returnability No Country of origin FR Packing Units Unit Type of Package 1 PCE Nbr. of units in pkg. 1 Package 1 Height 2.17 in (5.500 cm) Package 1 Width 4.33 in (11.000 cm) Package 1 Length 4.72 in (12.000 cm) Package weight(Lbs) 8.677 oz (246.000 g) Unit Type of Package 2 S02 Number of Units in Package 2 15 Package 2 Height 5.91 in (15.000 cm) Package 2 Width 11.81 in (30.000 cm) Package 2 Length 15.75 in (40.000 cm) Package 2 Weight 8.168 lb(US) (3.705 kg)
