BMXP3420302CL | Schneider Electric Modicon M340 Processor Module

BMXP3420302CL Processor Module: The Brain of Your Modicon M340 System

When your Modicon M340 automation platform needs a reliable processor, the BMXP3420302CL from Schneider Electric delivers. This processor module acts as the central brain for your control system, handling complex logic, motion control, and communication tasks with ease. Designed for industrial environments, it supports up to 1024 discrete I/O and 256 analog I/O in multi-rack configurations, making it a powerful choice for demanding applications. Whether you're upgrading an existing system or building a new one, this module provides the performance and connectivity you need.

Key Technical Specifications

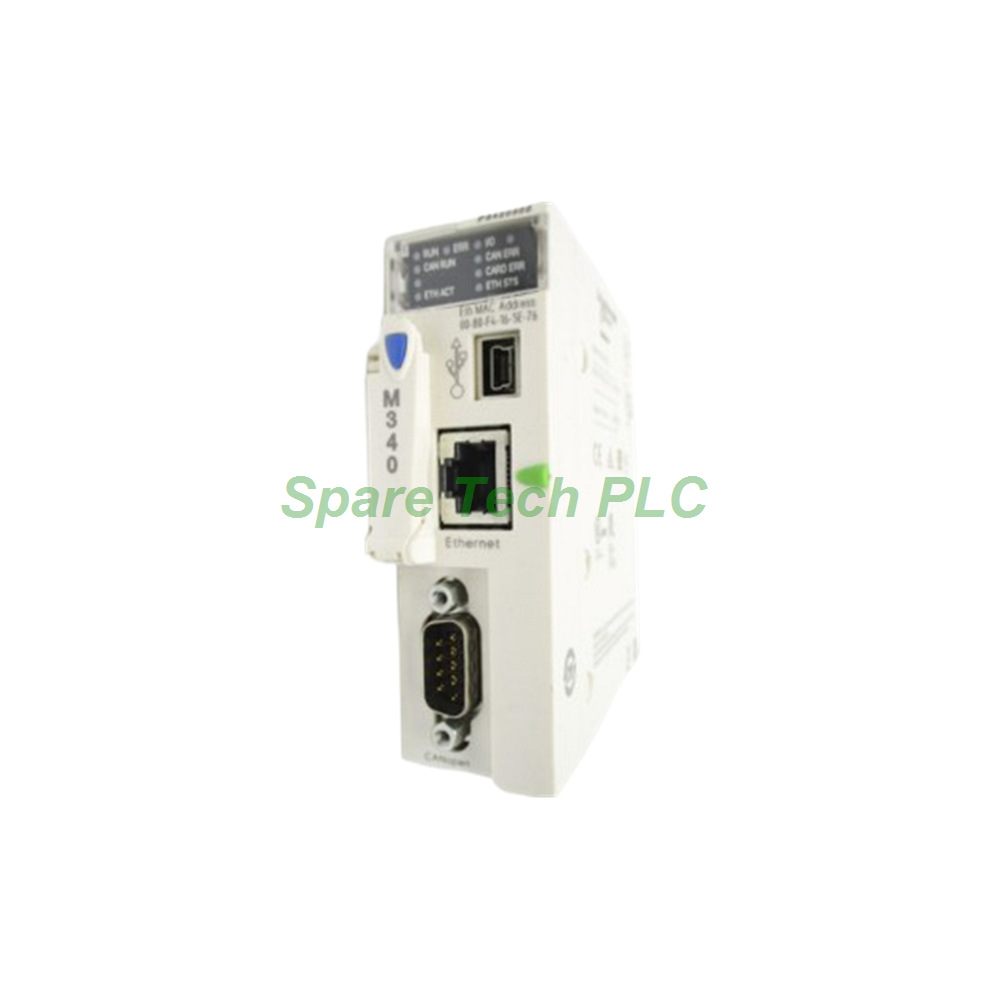

• Product Type: Processor module for Modicon M340 automation platform
• Discrete I/O Capacity: 1024 I/O (multi-rack), 704 I/O (single-rack)
• Analog I/O Capacity: 256 I/O (multi-rack), 66 I/O (single-rack)
• Integrated Connections: USB (12 Mbit/s), CANopen master (SUB-D 9), Ethernet TCP/IP (RJ45, 10/100 Mbit/s)
• Racks/Slots: 4 racks, 11 slots
• Application Specific Channels: 36
• Internal RAM: 4096 kB (256 kB data, 3584 kB program)
• Execution Speed: 0.12 µs per Boolean instruction, 8.1 Kinst/ms (100% Boolean)
• Current Consumption: 135 mA at 24 V DC
• Operating Temperature: 0…60 °C
• Protection: IP20, TC protective treatment
• Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy
• Weight: 0.215 kg

Solving Your Automation Challenges

Challenge 1: Complex Control Needs

The BMXP3420302CL handles up to 36 application-specific channels, including programmable loops and motion control. This means you can manage intricate processes without adding extra hardware. The fast execution times (0.12 µs for Boolean) ensure your system responds quickly, reducing cycle times and improving throughput.

Challenge 2: Seamless Integration

With built-in CANopen and Ethernet TCP/IP, this module connects easily to your existing network. The CANopen master bus supports up to 63 server devices, while Ethernet services like Modbus TCP messaging and SNMP simplify data exchange. This reduces wiring complexity and enables transparent communication across your plant floor.

Challenge 3: Reliability in Harsh Environments

Rated for 0…60 °C operation and 10…95% humidity without condensation, the BMXP3420302CL thrives in challenging conditions. Its IP20 rating and TC protective treatment guard against dust and contaminants, minimizing downtime and maintenance costs.

Installation and Setup

Installing the BMXP3420302CL is straightforward for experienced technicians. It mounts directly into a Modicon M340 rack, drawing power internally. Ensure the ambient temperature stays within 0…60 °C and avoid condensation. The module requires a memory card (not supplied) to operate—make sure to order one separately. For CANopen and Ethernet connections, use standard SUB-D 9 and RJ45 cables. Always follow Schneider Electric's installation guidelines for optimal performance.

Maintenance and Reliability

To keep your BMXP3420302CL running smoothly, periodic inspections are recommended. Check for dust accumulation and ensure proper ventilation. The status LEDs provide quick diagnostics: green for normal operation, red for faults. If the CARD ERR LED lights up, verify the memory card is properly seated. Regular backups of your program and data are also advised to prevent loss. With proper care, this module offers long-term, cost-effective service.

Compatibility and Integration

The BMXP3420302CL integrates seamlessly with the Modicon M340 platform and supports a wide range of I/O modules. It communicates via CANopen and Ethernet TCP/IP, making it compatible with many industrial networks. For fieldbus integration, note that wiring into such networks may require an external gateway or connection module. Confirm cables and gateways with your supplier to ensure smooth setup.

Selection Guide

Before purchasing the BMXP3420302CL, verify your system's requirements: I/O count, communication protocols, and environmental conditions. Ensure you have a compatible memory card. As a reliable supplier, SpareTech Plc offers genuine parts, fast shipping, and expert technical support. Contact SpareTech Plc today for pricing and availability.
