BMEP586040C | Schneider Electric Modicon M580 Processor Module

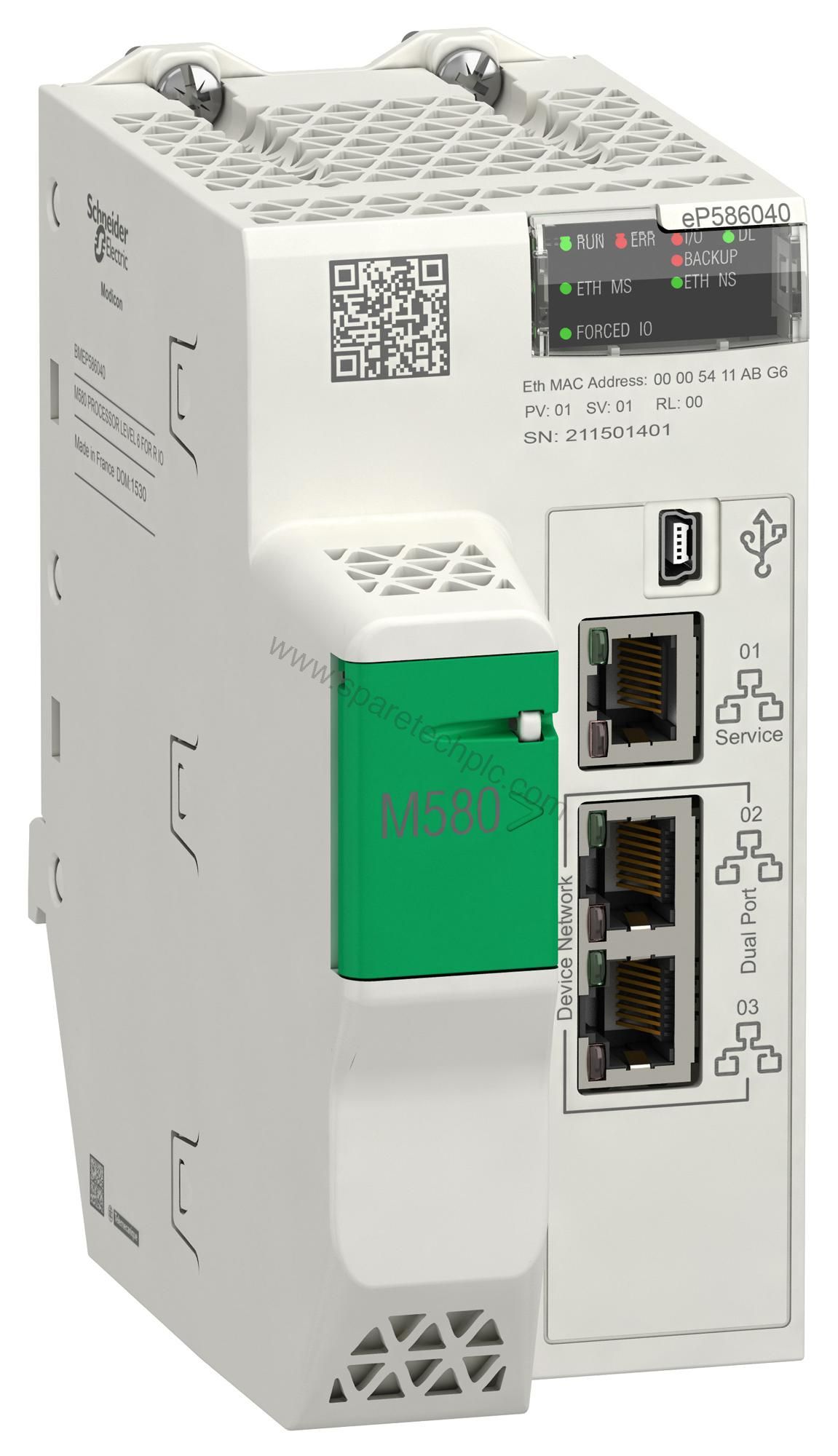

Schneider Electric BMEP586040C Processor Module for Modicon M580

When a critical process line goes down, every minute of downtime costs money. The Schneider Electric BMEP586040C processor module keeps your Modicon M580 system running with reliable, high-performance control. This genuine processor module is in stock and ready to ship from SpareTech Plc.

Why the BMEP586040C Belongs in Your M580 Rack

The BMEP586040C is a conformal coated processor module designed for demanding industrial environments. It handles up to 8 racks and supports 6144 discrete I/O and 1536 analog I/O points. With 216 application-specific channels in the local rack, it manages serial link, HART, motion control, accurate time stamping, SSI encoder, counter, and process control tasks. The module also supports programmable loops for advanced control strategies.

Key Technical Specifications

• Product range: Modicon M580
• Processor capacity: 6144 discrete I/O, 1536 analog I/O, 216 application-specific channels
• Racks: 8
• Remote I/O stations: 31 (2 remote drops)
• Distributed equipment: 64
• Communication module capacity: 6 Ethernet modules, 16 AS-Interface modules
• Integrated connections: 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device networks, 1 USB mini B
• Memory: Expandable flash 4 GB data storage, 10 kB system RAM, 64 MB program and data RAM
• Application structure: 2 auxiliary tasks, 1 periodic fast task, 128 event tasks, 1 cyclic/periodic master task
• Instruction speed: 40 Kinst/ms (65% Boolean + 35% fixed arithmetic), 50 Kinst/ms (100% Boolean)
• Current consumption: 300 mA at 24 V DC
• MTBF: 775,000 hours
• Operating temperature: -13…140 °F (-25…60 °C)
• Storage temperature: -40…185 °F (-40…85 °C)
• Relative humidity: 5…95% at 131 °F (55 °C) without condensation
• Protection: IP20, conformal coated
• Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
• Weight: 1.872 lb (0.849 kg)

Built for Harsh Environments

The BMEP586040C carries a conformal coating that protects against gas, dust, sand, salt, mold, and fungal spores. It meets ISA S71.04 class Gx, IEC 60721-3-3 class 3C4, 3S4, and 3B2 standards. With ATEX and IECEx zone 2/22 certifications, this module is suitable for hazardous locations. The wide operating temperature range and 3 gn vibration resistance ensure reliable performance in tough conditions.

Applications and Integration

This processor module fits seamlessly into Modicon M580 systems. Use it for process control, motion control, and high-speed counting applications. The integrated Ethernet ports simplify connectivity to supervisory systems and distributed equipment. For fieldbus integration, note that wiring into networks may require an external gateway or connection module. Confirm cables and gateways with your supplier.

Selection and Support

Before ordering, verify your rack configuration and I/O requirements. The BMEP586040C supports up to 8 racks and 31 remote I/O stations, so it scales with your application. SpareTech Plc offers expert technical selection support to ensure you get the right module. Contact SpareTech Plc today for pricing and availability.

Maintenance Tips

Inspect the module periodically for dust buildup and secure connections. Follow Schneider Electric's maintenance guidelines. The conformal coating reduces the need for frequent cleaning, but always power down before inspection.

FAQs

Q: What is the current consumption of the BMEP586040C?

A: It draws 300 mA at 24 V DC.

Q: How many racks can this processor support?

A: Up to 8 racks.

Q: Is the BMEP586040C suitable for hazardous areas?

A: Yes, it holds ATEX zone 2/22 and IECEx zone 2/22 certifications.

Q: What is the operating temperature range?

A: -13…140 °F (-25…60 °C).

Q: Does it support remote I/O?

A: Yes, up to 31 remote I/O stations with 2 remote drops.

Please verify current lifecycle status and availability with SpareTech Plc before ordering.
