BMEP582020H | Schneider Electric Modicon M580 Processor Module

Name: BMEP582020H | Schneider Electric Modicon M580 Processor Module
Brand: N/A
Availability: InStock
Rating: 4.6 (16 reviews)

BMEP582020H

Manufacturer: N/A
Series: N/A
Model Number: BMEP582020H
Weight: N/A
Condition: In Stock
Availability: 100% Original Brand New
Product Origin: U.S.A
Shipping port: Xiamen
Warranty: 12 Month

When Harsh Conditions Threaten Uptime

A food-processing plant in a humid coastal region kept losing its main controller to corrosion. Salt air and condensation were eating standard electronics alive. The fix was a processor built for severe environments: the Schneider Electric BMEP582020H.

This Modicon M580 processor module handles 4 racks and up to 2048 discrete I/O points. It runs on 270 mA at 24 V DC and carries a conformal coating that resists gas, dust, sand, salt, and mold.

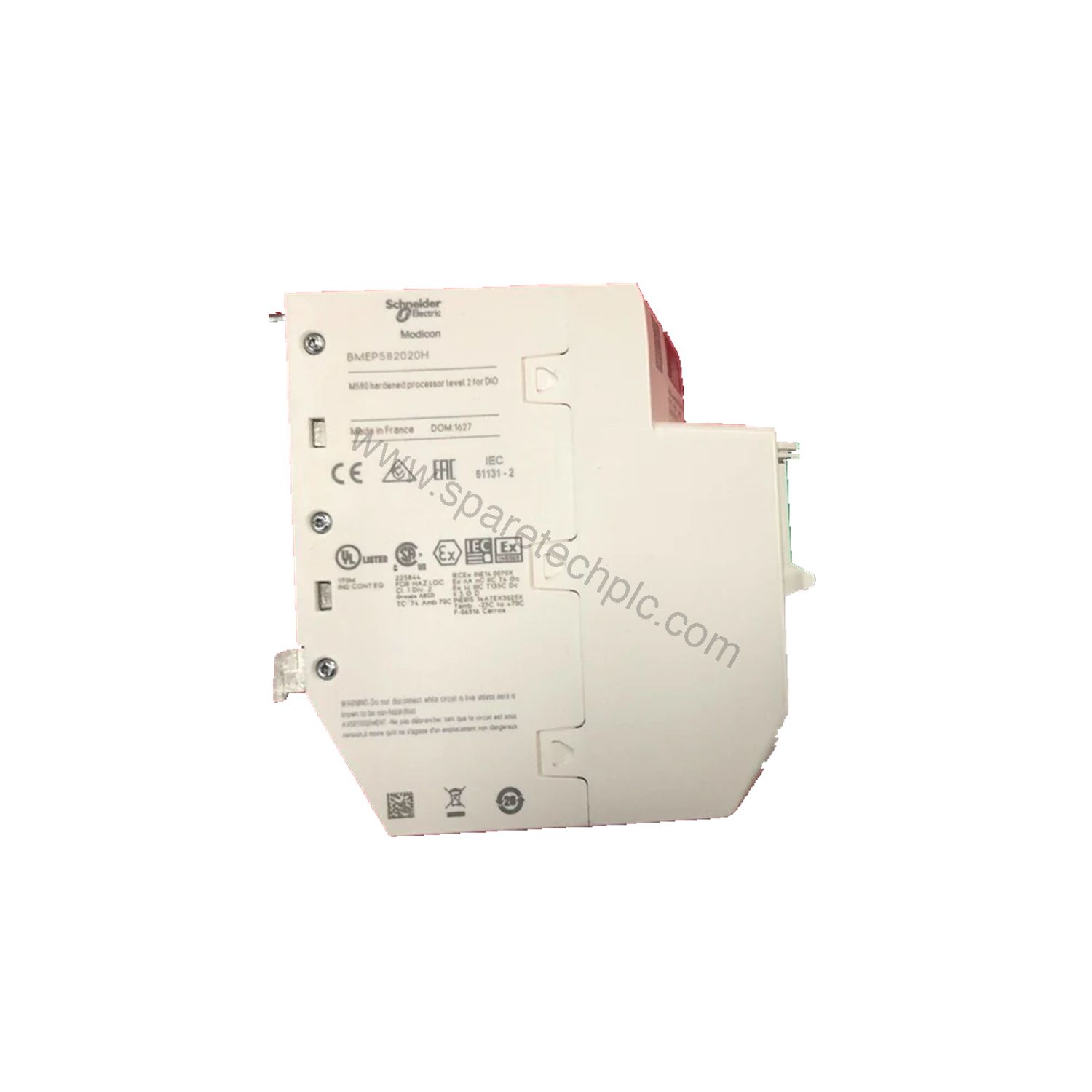

Figure 1: Front view of the Schneider Electric BMEP582020H Processor module showing its physical design and enclosure.

Key Technical Parameters

Local I/O capacity: 2048 discrete, 512 analog
Application-specific channels: 72 (local rack)
Integrated connections: 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network ports, 1 USB mini B
Distributed equipment: 128 devices
Communication module capacity: 2 Ethernet, 4 AS-Interface
Memory: 8 MB program RAM, 768 kB data RAM, 10 kB system RAM, 4 GB expandable flash
Instruction speed: 40 Kinst/ms (100% Boolean)
Operating temperature: -25…70 °C (-13…158 °F)
Protection: IP20, conformal coating
Certifications: CE, UL, CSA, RCM, EAC, ATEX zone 2/22, IECEx zone 2/22

Where This Module Earns Its Keep

Oil, Gas, and Marine

ATEX zone 2/22 and IECEx zone 2/22 ratings let the BMEP582020H operate in hazardous locations. Merchant Navy approval supports shipboard automation.

Water and Wastewater

Gas-resistant class Gx and salt-resistant level 2 protection suit treatment plants near coastlines. The 128-device distributed equipment capacity covers large pump stations.

Process Manufacturing

Accurate time stamping, HART, and SSI encoder support make this module a fit for batch and continuous process lines. Programmable loops handle control channels directly.

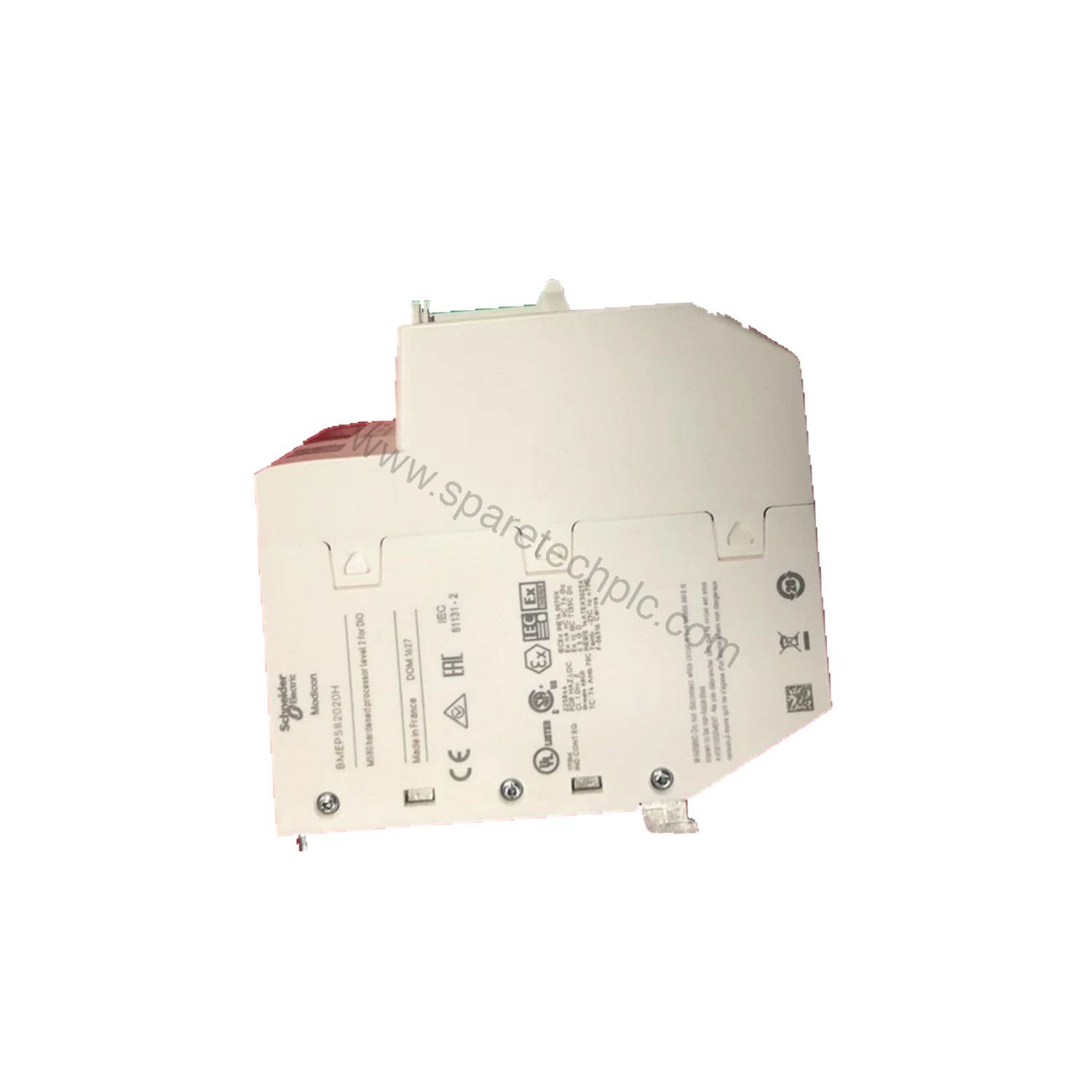

Figure 2: Technical layout and connection details for the Schneider Electric BMEP582020H Processor module.

Installation and Integration Notes

Mount the BMEP582020H in a Modicon M580 rack. The rack supplies internal power. Keep the IP20 enclosure inside a control cabinet rated for the surrounding environment.

For fieldbus networks, wiring into Ethernet or AS-Interface systems may require an external gateway or connection module. Confirm cables and gateways with your supplier before ordering.

Seven status LEDs cover RUN, ERR, I/O, DL, BACKUP, ETH MS, and Eth NS. Use them for quick commissioning checks.

Reliability That Pays Back

MTBF reliability is 775,000 hours. Vibration resistance reaches 3 gn, shock resistance 30 gn. Storage temperature spans -40…85 °C.

For cost-effective maintenance, inspect the module periodically and follow the manufacturer's safety manual. The conformal coating reduces failure risk in humid or corrosive plants, cutting downtime costs over the service life.

Selection Checklist

Before buying, confirm your rack count, I/O needs, and network architecture. Verify the 270 mA current draw against your 24 V DC supply budget. Check that your cabinet maintains the -25…70 °C operating range.

SpareTech Plc supplies genuine parts, fast shipping, and expert technical selection support. Contact SpareTech Plc today for pricing and availability.

Attention: The above product information is sourced from the internet and cannot be guaranteed to be authentic. For specific product parameters and prices, please contact SpareTech PLC professionals in a timely manner.

Brand Name
Model No.	BMEP582020H
Product Type	Processor module
hasMerchantReturnPolicy	Adjust according to reality
Shippingdetails	Adjust according to reality

BMEP582020H Main Range of Product Modicon M580 Product or Component Type Processor module Product Specific Application For severe environments Complementary Number of racks 4 Local I/O processor capacity (discrete) 2048 I/O Local I/O processor capacity (analog) 512 I/O Number of application specific channel (local rack) 72 Application specific I/O Accurate time stamping Counter SSI encoder HART Serial link Motion control Checks Process control Control channels Programmable loops Integrated connection type 1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network USB type mini B Number of distributed equipment 128 Communication module processor capacity 2 Ethernet communication module 4 AS-Interface module Communication Service DIO scanner Memory description Expandable flash, 4 GB data storage Integrated RAM, 10 kB system memory Integrated RAM, 8 MB program Integrated RAM, 768 kB data Application structure 2 auxiliary tasks 64 event tasks 1 cyclic/periodic master task 1 periodic fast task Number of instructions per ms 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 40 Kinst/ms 100 % Boolean Current consumption 270 mA 24 V DC MTBF reliability 775000 H Marking CE Environment Vibration resistance 3 gn Shock resistance 30 gn Ambient air temperature for operation -13…158 °F (-25…70 °C) Ambient Air Temperature for Storage -40…185 °F (-40…85 °C) Operating altitude 0...6561.68 ft (0...2000 m) 2000...5000 m with derating factor Relative humidity 5…95 % 131 °F (55 °C) without condensation IP Degree of Protection IP20 Directives 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive Product certifications CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 Standards IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G IEC 60079-0 Environmental characteristic Gas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant level 2 IEC 68252 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3 Hazardous location class I division 2 Protective treatment Conformal coating Supply Internal power supply via rack Status LED 1 LED (Green) processor running (RUN) 1 LED (Red) processor or system fault (ERR) 1 LED (Red) I/O module fault (I/O) 1 LED (Green) download in progress (DL) 1 LED (Red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status) Net Weight 1.872 lb(US) (0.849 kg) Ordering and shipping details Category US1PC3418161 Discount Schedule PC34 GTIN 3595864174488 Returnability No Country of origin FR Packing Units Unit Type of Package 1 PCE Nbr. of units in pkg. 1 Package 1 Height 3.74 in (9.500 cm) Package 1 Width 7.09 in (18.000 cm) Package 1 Length 10.24 in (26.000 cm) Package weight(Lbs) 31.146 oz (883.000 g) Unit Type of Package 2 S03 Number of Units in Package 2 6 Package 2 Height 11.81 in (30.000 cm) Package 2 Width 11.81 in (30.000 cm) Package 2 Length 15.75 in (40.000 cm) Package 2 Weight 13.009 lb(US) (5.901 kg)
