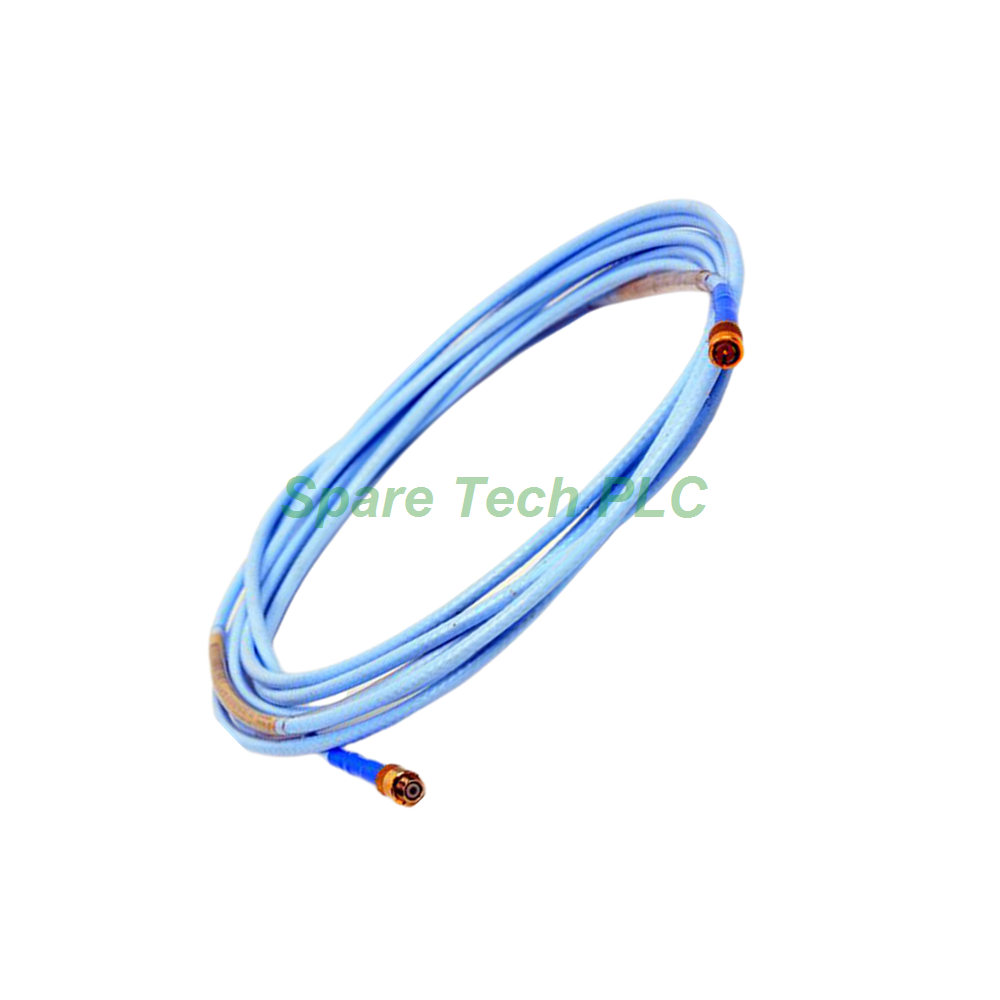

Bently Nevada 83387-065 Hardline Cable 65in

Bently Nevada 83387-065 Hardline Cable

The Bently Nevada 83387-065 Hardline cable delivers a secure, high-temperature link between accelerometers and monitoring interface modules. This 65-inch (1.65-meter) cable features mineral insulation and a stainless steel overbraid that protect the internal twisted shielded pair from both extreme heat and physical damage. As a result, it consistently outperforms standard cables in the most demanding industrial settings.

Key Technical Specifications

The 83387-065 incorporates two specialized connector ends for proper system interfacing. Specifically, the accelerometer mating connector mates to a MS 3100R-10SL-4P receptacle and includes a Viton insert for superior chemical and thermal resistance. Meanwhile, the disconnect interface mating connector mates to a MS 3106-10SL-4S connector, enabling rapid disconnection during scheduled maintenance or emergency repairs. Additionally, the cable's low-noise twisted shielded pair construction ensures pristine signal transmission even near variable-frequency drives and other noise sources.

Extreme Temperature Operating Range

This Hardline cable thrives in high-temperature environments. The cable body operates continuously from -65°F to +1200°F (-54°C to +649°C). Moreover, both the accelerometer mating connector and the disconnect interface mating connector share identical ratings of -65°F to +800°F (-54°C to +427°C). Therefore, the Bently Nevada 83387-065 easily handles the extreme heat found inside turbine enclosures, exhaust stacks, and high-temperature process piping.

Understanding the 065 Length Designation

The "-065" suffix in 83387-065 denotes a 65-inch cable length. This intermediate length offers greater routing flexibility than the 54-inch version while remaining manageable in confined spaces. Consequently, it suits applications requiring a moderate span between sensor and junction box, such as mid-frame turbine mounts or compressor discharge monitoring points.

Hardline vs. Softline: Making the Right Choice

Bently Nevada offers both Hardline and Softline cable families for different applications. The Hardline cable, exemplified by 83387-065, uses mineral insulation and stainless steel overbraid for extreme temperatures and mechanical protection. In contrast, Softline cables rely on Teflon tubing and operate only up to +204°C. Therefore, select Hardline whenever your accelerometer mounts near combustion zones or exhaust paths, while Softline remains suitable for bearing housings, gearboxes, and other moderate-temperature areas.

Installation Best Practices

First, inspect both connector ends of the 83387-065 carefully for any contaminants or bent pins before installation. Next, mate the accelerometer end (MS 3100R-10SL-4P) with the sensor's receptacle, tightening securely to ensure a reliable connection. Then, attach the disconnect interface end (MS 3106-10SL-4S) to your interface module. Furthermore, avoid sharp bends or kinks in the cable, as the mineral insulation, while robust, can crack under excessive flexing. Finally, secure the cable along its route using appropriate clamps or ties, keeping it away from rotating components and abrasive surfaces.

Common Application Areas

This Hardline cable sees widespread use in power generation, oil and gas, and heavy industrial sectors. For instance, it connects accelerometers monitoring gas turbine bearings, compressor stages, steam valve positions, and exhaust duct vibrations. Additionally, its mineral insulation resists radiation and corrosive atmospheres, broadening its applicability in chemical processing plants and nuclear facilities.

Why Choose the 83387-065 Over Other Lengths?

The 65-inch length provides an optimal balance between reach and signal integrity. Shorter cables like the 54-inch version suit tight spaces, while longer runs may introduce additional signal attenuation. The 83387-065 offers a versatile middle-ground solution, providing adequate reach for most turbine and compressor installations while maintaining excellent signal quality.

Packaging List

• One (1) Bently Nevada 83387-065 65-inch Hardline cable with both connectors pre-installed

• Protective dust caps for each connector end

• Desiccant bag inside sealed ESD-safe packaging

• Quick-reference installation guide

Shipping Information

We ship all orders via FedEx, UPS, or DHL with comprehensive tracking and insurance coverage. Most orders leave our warehouse within 24 hours of payment confirmation.

Frequently Asked Questions (FAQ)

Q1: What is the maximum continuous operating temperature for the 83387-065?
A: The cable handles up to +649°C, while both connectors support up to +427°C. Therefore, the system's maximum usable temperature is +427°C due to the connector limitation.

Q2: Can I use the Bently Nevada 83387-065 with any accelerometer?
A: Yes, provided your accelerometer has a MS 3100R-10SL-4P receptacle, which is the standard for Bently Nevada accelerometers. Always verify connector compatibility before installation.

Q3: How does the 83387-065 compare to Softline alternatives?
A: The 83387-065 withstands temperatures up to +649°C and includes stainless steel overbraid protection. Softline cables only reach +204°C. Choose Hardline for high-heat applications like turbines and furnaces.

Q4: Can I repair this cable if it gets damaged?
A: Bently Nevada advises against field repairs due to the specialized mineral insulation and factory-potted connectors. Replace the entire cable to ensure reliable performance.

Q5: How soon will my order ship?
A: We dispatch orders via FedEx, UPS, or DHL within 24 business hours. Delivery typically takes 3-7 business days depending on your location. Expedited shipping is available upon request.
