83387-054 Bently Nevada 54 Inch Hardline Cable

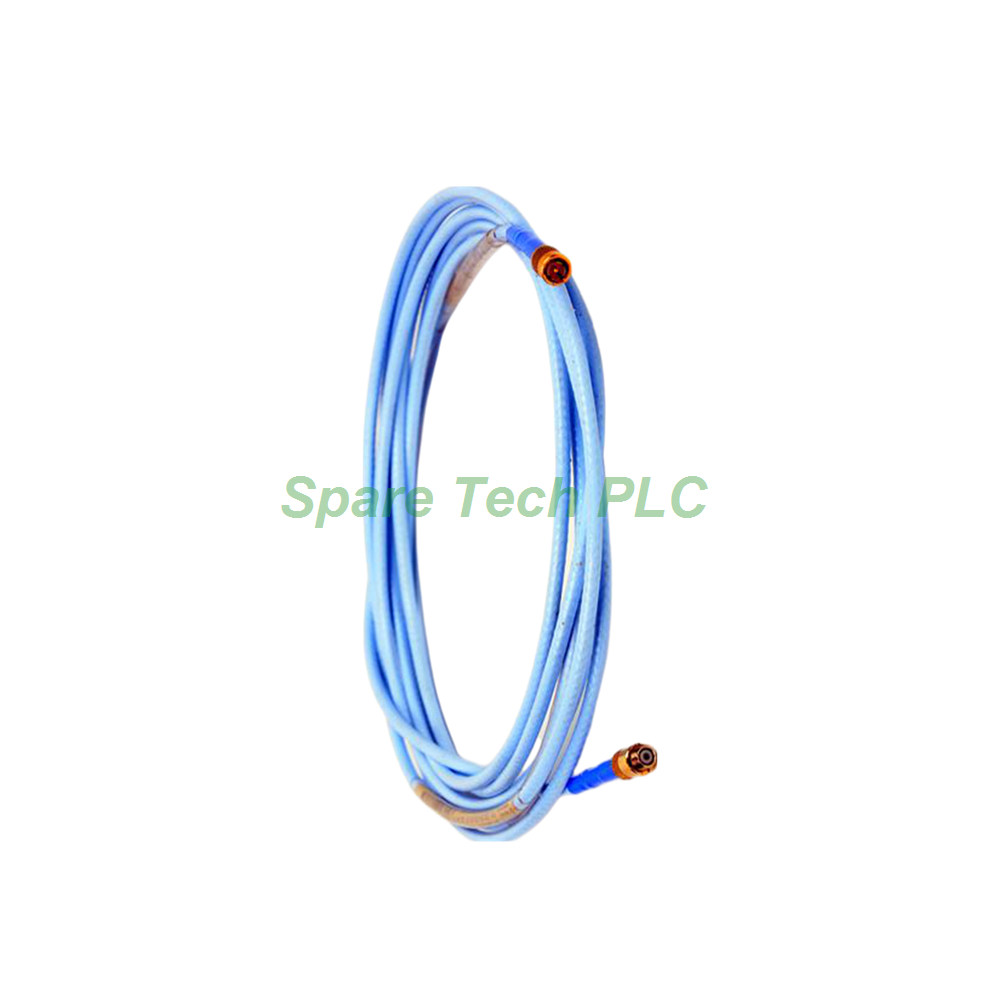

Bently Nevada 83387-054 Hardline Cable

The Bently Nevada 83387-054 Hardline cable provides a durable, high-temperature connection between accelerometers and interface modules. This 54-inch (1.37-meter) cable uses mineral insulation and a stainless steel overbraid to protect the twisted shielded pair from extreme heat and mechanical stress. Consequently, it stands as the preferred choice for harsh industrial environments where Softline cables cannot survive.

Key Technical Specifications

The 83387-054 features two distinct connector ends for proper system integration. Specifically, the accelerometer mating connector mates to a MS 3100R-10SL-4P receptacle and includes a Viton insert for excellent chemical and heat resistance. Meanwhile, the disconnect interface mating connector mates to a MS 3106-10SL-4S connector, enabling quick disconnection during maintenance. Additionally, the cable's low-noise twisted shielded pair construction ensures reliable signal transmission even in electrically noisy environments.

Extreme Temperature Performance

This Hardline cable excels in high-temperature applications. The cable itself operates continuously from -65°F to +1200°F (-54°C to +649°C). Moreover, both the accelerometer mating connector and the disconnect interface mating connector share a rating of -65°F to +800°F (-54°C to +427°C). Therefore, the Bently Nevada 83387-054 comfortably handles the extreme heat found inside turbine enclosures, exhaust systems, and high-temperature process equipment.

Understanding the 054 Designation

The "-054" suffix in 83387-054 indicates a 54-inch cable length. This compact length proves particularly useful for short jumper connections or tight installation spaces where excess cable cannot be routed. For longer runs, consider other lengths within the 83387 series, though this 54-inch variant offers minimal signal loss and easy handling.

Comparing Hardline with Softline

Bently Nevada offers both Hardline and Softline cable families. The Hardline cable, represented by 83387-054, uses mineral insulation and stainless steel overbraid for extreme temperatures and mechanical protection. In contrast, Softline cables rely on Teflon tubing and operate up to only +204°C. Therefore, select Hardline for turbine or engine-mounted accelerometers, while Softline suits moderate-temperature bearing housing or gearbox installations.

Installation Best Practices

First, inspect both connector ends of the 83387-054 for any debris or damage before installation. Next, mate the accelerometer end (MS 3100R-10SL-4P) with the sensor's receptacle, tightening firmly to ensure a gas-tight connection. Then, attach the disconnect interface end (MS 3106-10SL-4S) to your interface module. Furthermore, avoid over-torquing either connector, as this may damage the pins or insert. Finally, route the cable away from sharp edges and moving parts, using protective clips or ties where necessary.

Application Environments

This Hardline cable commonly appears in power generation, oil and gas, and heavy industrial sectors. For instance, it connects accelerometers monitoring gas turbine bearings, compressor stages, and steam valve positions. Additionally, its mineral insulation resists radiation and corrosive atmospheres, broadening its use in chemical plants and nuclear facilities.

Packaging List

• One (1) Bently Nevada 83387-054 54-inch Hardline cable with both connectors pre-attached

• Protective dust caps for each connector end

• Desiccant bag within sealed ESD-safe packaging

• Quick-reference installation card

Shipping Information

We dispatch all orders via FedEx, UPS, or DHL with full tracking and insurance coverage. Most shipments leave our warehouse within 24 hours of confirmed payment.

Frequently Asked Questions (FAQ)

Q1: What temperature range does the Bently Nevada 83387-054 support?
A: The cable withstands -54°C to +649°C, while both connectors handle -54°C to +427°C. Therefore, the overall system limit depends on the lower connector rating of +427°C.

Q2: Can I use this Hardline cable with any Bently Nevada accelerometer?
A: Yes, provided your accelerometer features a MS 3100R-10SL-4P receptacle. This is the standard Bently Nevada accelerometer connector, so compatibility is generally assured.

Q3: Why choose the 83387-054 over a Softline cable?
A: The 83387-054 handles extreme heat up to +649°C and offers stainless steel overbraid protection. Softline cables only reach +204°C. Choose Hardline for turbine, engine, or furnace applications.

Q4: Is the 83387-054 field-repairable if damaged?
A: Bently Nevada does not recommend field repairs due to the mineral insulation and specialized connector potting. Instead, replace the entire cable to maintain system integrity.

Q5: How long does delivery take?
A: We ship globally via FedEx, UPS, or DHL. Delivery typically takes 2-5 business days for major destinations. Expedited shipping options are available upon request.
