83387-096 Bently Nevada 96 Inch Hardline Cable

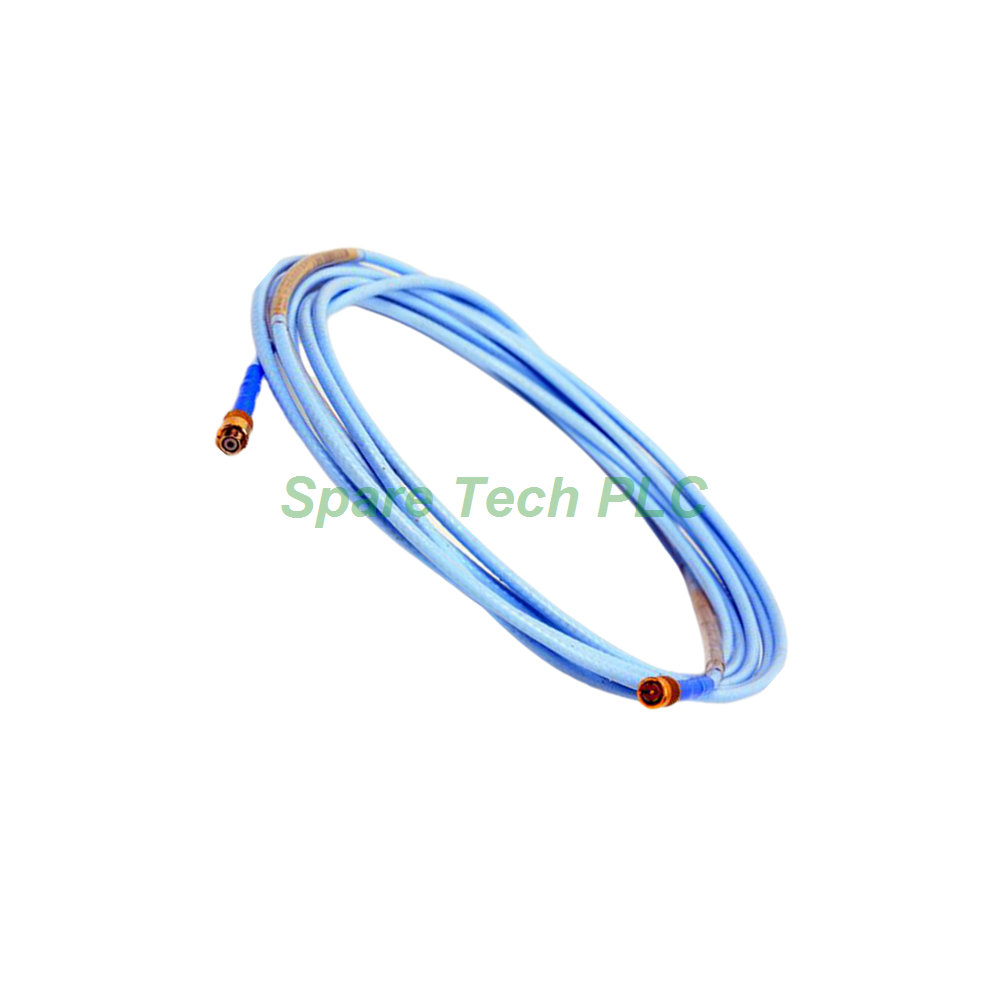

Bently Nevada 83387-096 Hardline Cable

The Bently Nevada 83387-096 Hardline cable provides a durable, high-temperature link between accelerometers and monitoring interface modules. This 96-inch (2.44-meter) cable features mineral insulation and a stainless steel overbraid that shield the internal twisted shielded pair from extreme heat and mechanical wear. Consequently, it delivers consistent, noise-free signals in the most punishing industrial environments.

Key Technical Specifications

The 83387-096 incorporates two specialized connector ends for proper system integration. Specifically, the accelerometer mating connector mates to a MS 3100R-10SL-4P receptacle and includes a Viton insert for excellent chemical and thermal resistance. Meanwhile, the disconnect interface mating connector mates to a MS 3106-10SL-4S connector, enabling quick disconnection during maintenance or emergency shutdowns. Additionally, the cable's low-noise twisted shielded pair construction ensures reliable signal transmission even near variable-frequency drives and other electromagnetic interference sources.

Extreme Temperature Operating Range

This Hardline cable performs exceptionally in high-temperature environments. The cable body operates continuously from -65°F to +1200°F (-54°C to +649°C). Moreover, both the accelerometer mating connector and the disconnect interface mating connector share identical ratings of -65°F to +800°F (-54°C to +427°C). Therefore, the Bently Nevada 83387-096 handles the extreme heat found inside turbine enclosures, exhaust systems, and high-temperature process equipment with ease.

Understanding the 096 Length Designation

The "-096" suffix in 83387-096 indicates a 96-inch cable length. This extended length provides significant routing flexibility, allowing the cable to reach from sensor locations to remotely mounted interface modules or junction boxes. Consequently, it suits applications requiring a longer span, such as large frame turbines, extensive compressor trains, or installations where the monitoring equipment sits some distance from the measurement point.

Hardline vs. Softline: Application-Based Selection

Bently Nevada offers both Hardline and Softline cable families for different use cases. The Hardline cable, exemplified by 83387-096, uses mineral insulation and stainless steel overbraid for extreme temperatures and superior mechanical protection. In contrast, Softline cables rely on Teflon tubing and operate only up to +204°C. Therefore, select Hardline whenever your accelerometer mounts near combustion zones or exhaust paths, while Softline remains suitable for bearing housings, gearboxes, and other moderate-temperature areas.

Installation Best Practices

First, inspect both connector ends of the 83387-096 carefully for any debris or bent pins before installation. Next, mate the accelerometer end (MS 3100R-10SL-4P) with the sensor's receptacle, tightening firmly to establish a reliable connection. Then, attach the disconnect interface end (MS 3106-10SL-4S) to your interface module. Furthermore, avoid sharp bends or kinks in the cable, as the mineral insulation, while robust, can crack under excessive flexing. Finally, secure the cable along its route using appropriate clamps or ties, keeping it away from rotating components and abrasive surfaces.

Common Application Areas

This Hardline cable sees extensive use in power generation, oil and gas, and heavy industrial sectors. For instance, it connects accelerometers monitoring gas turbine bearings, compressor stages, steam valve positions, and exhaust duct vibrations. Additionally, its mineral insulation resists radiation and corrosive atmospheres, broadening its applicability in chemical processing plants and nuclear facilities.

Why Choose the 83387-096 Over Other Lengths?

The 96-inch length provides extended reach for installations requiring greater distance between sensor and interface module. Compared to the 54-inch and 65-inch variants, the 83387-096 offers additional routing flexibility, allowing technicians to avoid obstructions or route cables through conduit and raceways. Despite its longer length, signal integrity remains excellent due to the low-noise twisted shielded pair design.

Packaging List

• One (1) Bently Nevada 83387-096 96-inch Hardline cable with both connectors pre-installed

• Protective dust caps for each connector end

• Desiccant bag inside sealed ESD-safe packaging

• Quick-reference installation guide

Shipping Information

We ship all orders via FedEx, UPS, or DHL with comprehensive tracking and insurance coverage. Most orders leave our warehouse within 24 hours of payment confirmation.

Frequently Asked Questions (FAQ)

Q1: What is the maximum continuous operating temperature for the 83387-096?
A: The cable handles up to +649°C, while both connectors support up to +427°C. Therefore, the system's maximum usable temperature is +427°C due to the connector limitation.

Q2: Can I use the Bently Nevada 83387-096 with any accelerometer?
A: Yes, provided your accelerometer has a MS 3100R-10SL-4P receptacle, which is the standard for Bently Nevada accelerometers. Always verify connector compatibility before installation.

Q3: How does the 83387-096 compare to Softline alternatives?
A: The 83387-096 withstands temperatures up to +649°C and includes stainless steel overbraid protection. Softline cables only reach +204°C. Choose Hardline for high-heat applications like turbines and furnaces.

Q4: Can I repair this cable if it gets damaged in the field?
A: Bently Nevada advises against field repairs due to the specialized mineral insulation and factory-potted connectors. Replace the entire cable to ensure reliable performance.
