32000-29-05-10-075-07-02 | Bently Nevada 3300 XL Housing

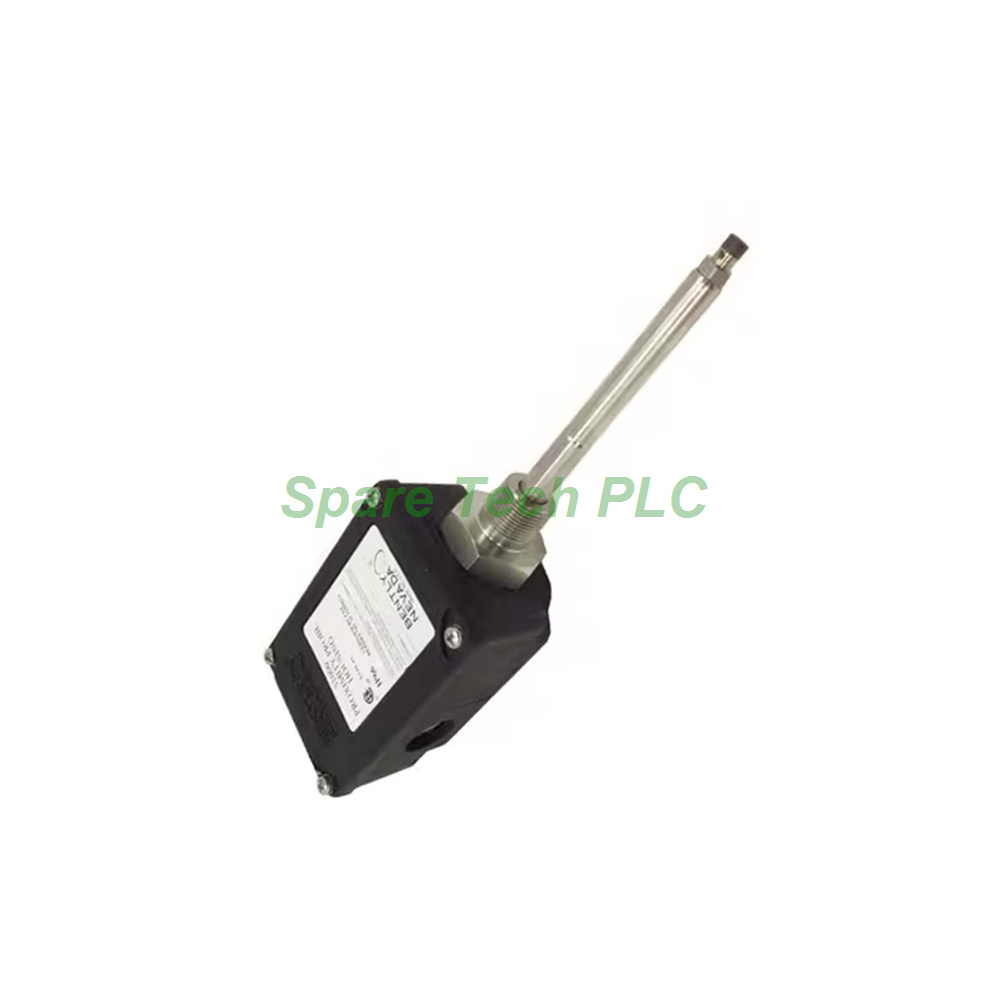

32000-29-05-10-075-07-02: Precision Housing for 3300 XL Probes

Product Introduction

This proximity probe housing provides secure mounting and environmental protection for critical sensing elements. The Bently Nevada 32000-29-05-10-075-07-02 is specifically engineered for the 3300 XL 8 mm probe with connector protector. It maintains precise probe positioning for accurate vibration measurements. Therefore, it plays a vital role in predictive maintenance programs for rotating machinery. This particular configuration includes a 0.5-metre cable and a 75 mm probe penetration.

Technical Specifications & Ordering Code Breakdown

Every digit in the model number represents a specific configuration choice. The 32000-29-05-10-075-07-02 incorporates the 3300 XL 8 mm probe option with a connector protector. Additionally, the probe cable length is set at 0.5 metres. The standoff adapter measures 100 mm, while the probe penetration is exactly 75 mm.

Furthermore, the fittings option includes one PG21 x M20 fitting along with two sealing plugs. This housing requires a 3/4-14 NPT mounting thread, which is mandatory when ordering the standoff adapter. Consequently, verifying these parameters before installation ensures perfect compatibility with your existing machinery. The complete assembly adheres to stringent quality standards from Bently Nevada.

Material Construction and Durability

The housing body uses glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic. This advanced material contains conductive fibers that provide electrostatic dissipation. The sleeve and retaining chain are manufactured from AISI 304 stainless steel for excellent corrosion resistance. Meanwhile, the outer sleeve and all exterior screws utilize AISI 303 stainless steel. Neoprene® O-rings deliver a reliable environmental seal against moisture and contaminants.

This robust material selection allows the Bently Nevada 32000 housing to perform reliably in extreme conditions. Specifically, its operating temperature range spans from -51°C to +105°C (-60°F to +221°F). BASEEFA certified the housing to withstand two separate 4 Joule impacts at both -39°C and 115°C. Furthermore, CSA verified that samples withstand a 7 Joule impact at room temperature. These features ensure long-term reliability in harsh industrial settings.

Protection Ratings and Hazardous Area Compliance

The 32000-29-05-10-075-07-02 carries a Type 4X rating certified by the Canadian Standards Association (CSA). In addition, it holds an IP66 rating verified by SC115582-1 (e) 106. The housing also complies with CENELEC standard EN50014 for electrostatic dissipation in hazardous areas. Therefore, this product is suitable for demanding environments where dust, water, and static electricity present significant challenges. Users can confidently deploy this housing in refineries, chemical plants, power generation facilities, and offshore platforms.

Installation Guidance

Proper installation maximizes the performance of the Bently Nevada 32000 proximity probe housing. First, confirm that the mounting thread is 3/4-14 NPT, as this is required when using the standoff adapter. Next, ensure the 75 mm probe penetration matches your machine's specific requirements. Meanwhile, verify that the 0.5-metre cable length adequately reaches your monitoring system.

Additionally, install the included PG21 x M20 fitting and two plugs to seal all conduit entries properly. Tighten all exterior screws evenly to maintain the IP66 seal integrity. Finally, inspect the Neoprene® O-ring before installation to ensure it is free from damage. For detailed procedures, always consult the official Bently Nevada installation documentation.

Packaging List

• 1 x Bently Nevada 32000 Metric Proximity Probe Housing (complete assembly)

• 1 x AISI 304 stainless steel sleeve with retaining chain

• 1 x AISI 303 stainless steel outer sleeve and exterior screws

• 1 x Neoprene® O-ring (factory-installed)

• 1 x PG21 x M20 conduit fitting

• 2 x Plugs for unused openings

• 1 x Mounting hardware kit

Shipping Information

All orders are dispatched via FedEx, UPS, or DHL to ensure prompt and reliable global delivery. Tracking information will be provided upon shipment confirmation.

Frequently Asked Questions (FAQ)

1. Which probe does the 32000-29-05-10-075-07-02 housing support?
This housing is specifically designed for the Bently Nevada 3300 XL 8 mm proximity probe with a connector protector. It ensures accurate positioning and secure retention for that probe model.

2. What does the 75 mm probe penetration option mean?
The 75 mm penetration refers to the depth the probe extends beyond the housing face. This dimension must match your machine's specific mounting configuration for proper gap measurement.

3. Is this housing suitable for outdoor applications?
Yes, absolutely. The housing carries both Type 4X and IP66 ratings. Therefore, it provides excellent protection against water jets, dust ingress, and corrosion, making it ideal for outdoor installation.

4. Why is the 3/4-14 NPT mounting thread required?
The 3/4-14 NPT thread is mandatory when ordering the standoff adapter option. This thread type ensures a secure, sealed connection that maintains the housing's environmental protection rating.

5. What is the maximum temperature this housing can withstand?
The Bently Nevada 32000 housing operates reliably from -51°C to +105°C (-60°F to +221°F). Its impact strength is also certified at both low and high temperature extremes for added durability.
