32000-16-05-05-080-03-02 | Bently Nevada 3300 XL Housing

32000-16-05-05-080-03-02: Compact Housing for 3300 XL Probes

Product Introduction

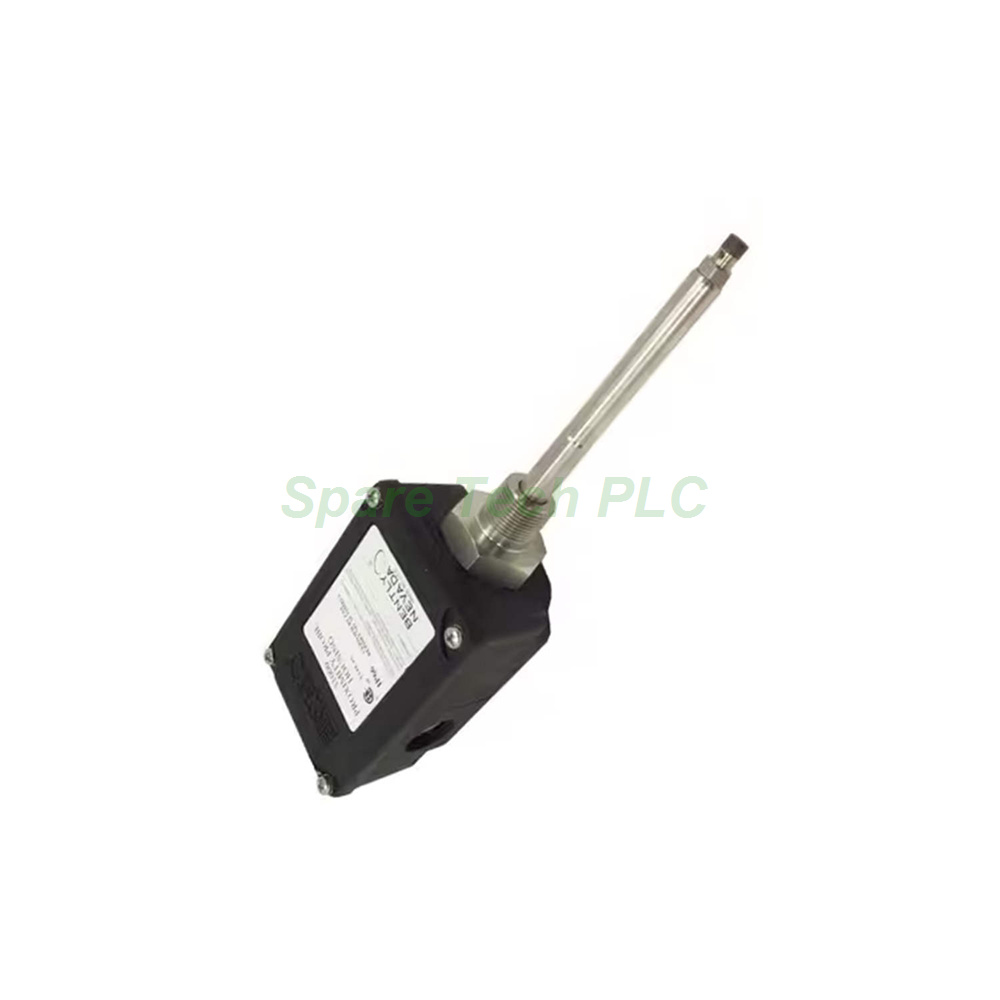

This proximity probe housing delivers secure mounting and robust environmental protection for vibration sensing elements. The Bently Nevada 32000-16-05-05-080-03-02 is specifically configured for the 3300 XL 8 mm probe without a connector protector. It maintains precise probe positioning for accurate machine condition monitoring. Therefore, it serves as an essential component in predictive maintenance strategies for critical rotating equipment. This particular configuration includes a 0.5-metre cable, a 50 mm standoff adapter, and an 80 mm probe penetration.

Technical Specifications & Ordering Code Breakdown

Each digit in the model number represents a specific configuration choice. The 32000-16-05-05-080-03-02 incorporates the 3300 XL 8 mm probe option without a connector protector. Additionally, the probe cable length is set at 0.5 metres. The standoff adapter measures 50 mm, while the probe penetration extends to 80 mm.

Furthermore, the fittings option includes two plugs, an M20 fitting, and one cable seal grip with grommet specifically designed for armored probe cables. This housing requires a 3/4-14 NPT mounting thread, which is mandatory when ordering the standoff adapter. Consequently, verifying these parameters before installation ensures perfect compatibility with your existing machinery configuration. The complete assembly adheres to stringent quality standards from Bently Nevada.

Material Construction and Durability

The housing body uses glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic. This advanced material contains conductive fibers that provide electrostatic dissipation. The sleeve and retaining chain are manufactured from AISI 304 stainless steel for excellent corrosion resistance. Meanwhile, the outer sleeve and all exterior screws utilize AISI 303 stainless steel. Neoprene® O-rings deliver a reliable environmental seal against moisture and contaminants.

This robust material selection allows the Bently Nevada 32000 housing to perform reliably in extreme conditions. Specifically, its operating temperature range spans from -51°C to +105°C (-60°F to +221°F). BASEEFA certified the housing to withstand two separate 4 Joule impacts at both -39°C and 115°C. Furthermore, CSA verified that samples withstand a 7 Joule impact at room temperature. These features ensure long-term reliability in harsh industrial settings.

Protection Ratings and Hazardous Area Compliance

The 32000-16-05-05-080-03-02 carries a Type 4X rating certified by the Canadian Standards Association (CSA). In addition, it holds an IP66 rating verified by SC115582-1 (e) 106. The housing also complies with CENELEC standard EN50014 for electrostatic dissipation in hazardous areas. Therefore, this product is suitable for demanding environments where dust, water, and static electricity present significant challenges. Users can confidently deploy this housing in refineries, chemical plants, power generation facilities, and offshore platforms.

Armored Cable Support Feature

A distinguishing feature of this model is the cable seal grip with grommet for armored probe cables. This fitting provides superior strain relief and protection for the probe cable in demanding installations. The grommet creates a tight seal around the armored cable jacket, maintaining the IP66 rating. Meanwhile, the M20 fitting offers a standard conduit connection point. This configuration is particularly valuable in installations where cables are exposed to mechanical stress or abrasive conditions.

Compact Design Advantage

The 50 mm standoff adapter makes this housing particularly suitable for applications with limited space. This shorter standoff reduces the overall housing length while still providing proper probe positioning. The 80 mm probe penetration accommodates most standard machine mounting configurations. Therefore, this model offers an excellent balance between compactness and functionality for space-constrained installations.

Installation Guidance

Proper installation maximizes the performance of the Bently Nevada 32000 proximity probe housing. First, confirm that the mounting thread is 3/4-14 NPT, as this is required when using the standoff adapter. Next, ensure the 80 mm probe penetration matches your machine's specific requirements for target gap measurement. Meanwhile, verify that the 0.5-metre cable length adequately reaches your monitoring system.

Additionally, install the cable seal grip with grommet carefully to ensure proper sealing around the armored cable. Tighten all exterior screws evenly to maintain the IP66 seal integrity. Finally, inspect the Neoprene® O-ring before installation to ensure it is free from damage. For detailed procedures, always consult the official Bently Nevada installation documentation.

Packaging List

• 1 x Bently Nevada 32000 Metric Proximity Probe Housing (complete assembly)

• 1 x AISI 304 stainless steel sleeve with retaining chain

• 1 x AISI 303 stainless steel outer sleeve and exterior screws

• 1 x Neoprene® O-ring (factory-installed)

• 1 x Cable seal grip with grommet for armored probe cable

• 1 x M20 conduit fitting

• 2 x Plugs for unused openings

• 1 x Mounting hardware kit

Shipping Information

All orders are dispatched via FedEx, UPS, or DHL to ensure prompt and reliable global delivery. Tracking information will be provided upon shipment confirmation.

Frequently Asked Questions (FAQ)

1. Which probe does the 32000-16-05-05-080-03-02 housing support?
This housing is specifically designed for the Bently Nevada 3300 XL 8 mm proximity probe without a connector protector. It ensures accurate positioning and secure retention for that probe model.

2. What is the advantage of the 50 mm standoff adapter?
The 50 mm standoff adapter provides a more compact housing configuration. This shorter standoff is ideal for installations with limited clearance or where a reduced overall length is preferred.

3. What does the cable seal grip feature provide?
The cable seal grip with grommet is designed specifically for armored probe cables. It provides excellent strain relief, prevents cable movement, and maintains the IP66 environmental seal around the cable entry point.

4. Is this housing suitable for outdoor applications?
Yes, absolutely. The housing carries both Type 4X and IP66 ratings. Therefore, it provides excellent protection against water jets, dust ingress, and corrosion, making it ideal for outdoor installation in harsh environments.

5. What temperature range can this housing withstand?
The Bently Nevada 32000 housing operates reliably from -51°C to +105°C (-60°F to +221°F). Its impact strength is also certified at both low and high temperature extremes for added durability in demanding conditions.
