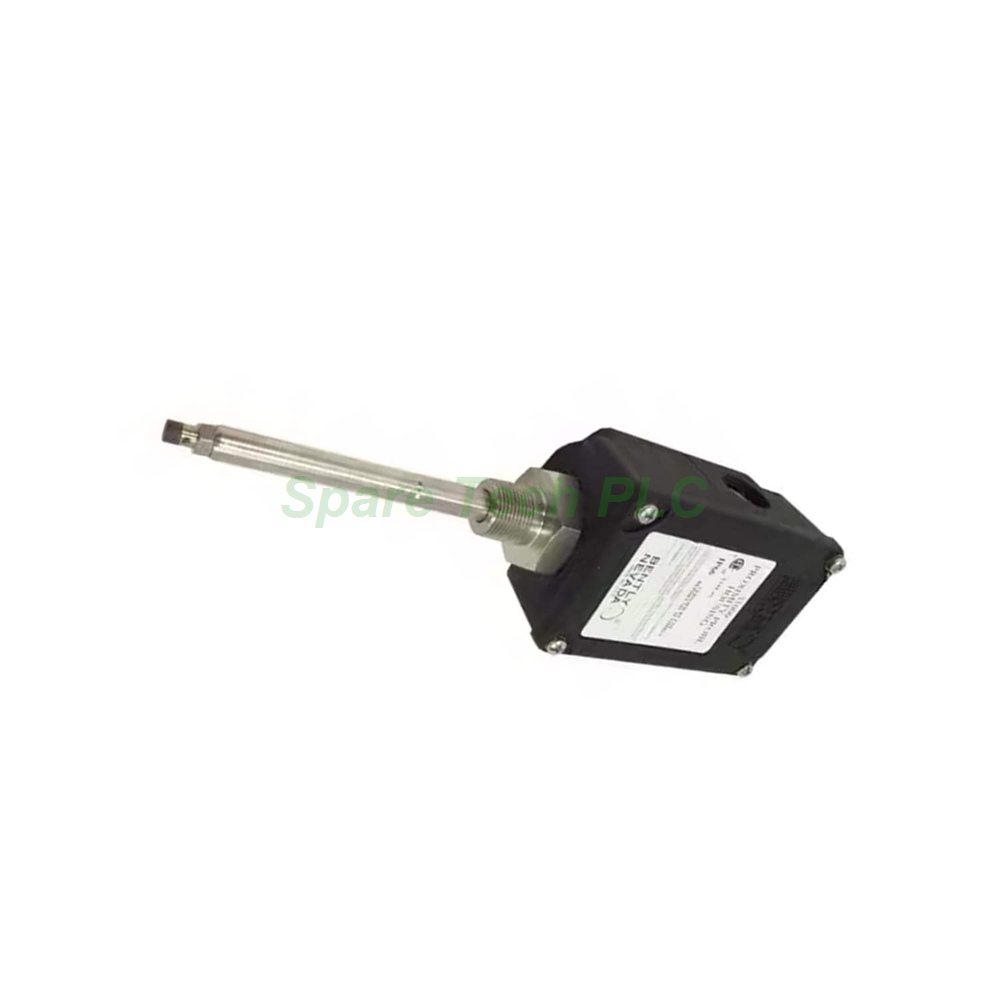

The Bently Nevada 32000-28-05-05-030-03-02 is a high-performance metric proximity probe housing for demanding industrial applications. This model specifically supports the 3300 XL 8 mm probe and offers flexible mounting options with robust environmental protection. U.S.A. manufacturing ensures strict quality control. Plant operators can depend on this housing to secure critical vibration sensors in turbines, compressors, and other rotating machinery. Its advanced materials and certified safety ratings guarantee long-term stability and measurement accuracy.
The Bently Nevada 32000-28-05-05-030-03-02 includes precise configuration options to match your installation needs. The probe option (28) supports the 3300 XL 8 mm probe and carries multiple agency approvals. This model comes with a 0.5-metre probe cable (05) and a 50 mm standoff adapter (05). Additionally, the probe penetration measures 30 mm (030), ensuring a consistent gap for accurate readings. The fittings package (03) includes two plugs, one M20 fitting, and one cable seal grip with a grommet for armored probe cables. Finally, the mounting thread option (02) specifies a 3/4-14 NPT connection, which is mandatory when ordering the standoff adapter.
This housing withstands severe conditions with ease. It carries a Type 4X rating from the Canadian Standards Association (CSA) and an IP66 rating verified by SC115582-1 (e) 106. Therefore, it offers excellent protection against dust, water ingress, and corrosion. For hazardous locations, the housing also meets CENELEC standard EN50014 for electrostatic dissipation of plastic materials.
The housing body uses glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers. Meanwhile, the sleeve and retaining chain feature AISI 304 stainless steel, and the outer sleeve and exterior screws use AISI 303 stainless steel. A Neoprene® O-ring ensures a tight seal. BASEEFA certified the housing to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F). Moreover, CSA verified sample units to survive a 7 Joule (5.2 ft·lb) impact at ambient room temperature. The total operating temperature range spans -51°C to +105°C (-60°F to +221°F).
Proper installation of the Bently Nevada 32000-28-05-05-030-03-02 maximizes probe performance. First, confirm that the mounting thread (3/4-14 NPT) matches your machine's mounting hole. Next, install the 50 mm standoff adapter to achieve the desired 30 mm probe penetration. Then, route the 0.5-metre probe cable through the cable seal grip and tighten it firmly to maintain the IP66 rating. Finally, torque all screws and fittings to the manufacturer's recommended values to prevent loosening from vibration. Always consult the product manual for detailed step-by-step guidance.
1 x Bently Nevada 32000 Metric Probe Housing Assembly
1 x 50 mm Standoff Adapter (pre-installed)
2 x Plugs for unused ports
1 x M20 Fitting
1 x Cable Seal Grip with Grommet for armored cable
Installation hardware (screws and O-rings)
Note: The 3300 XL 8 mm probe and cable are sold separately.
Q1: Does this housing include the 3300 XL 8 mm probe?
No. The Bently Nevada 32000-28-05-05-030-03-02 housing does not include the probe or cable. You must order these items separately.
Q2: Can I install this housing outdoors?
Yes. The IP66 and Type 4X ratings make it weatherproof and corrosion-resistant for outdoor installations.
Q3: Why do I need the standoff adapter?
The 50 mm standoff adapter positions the probe correctly from the target surface. This achieves the specified 30 mm penetration for accurate vibration measurement.
Q4: What tools do I need for installation?
Standard wrenches and torque tools suffice. Use the correct size for the 3/4-14 NPT thread and M20 fitting to avoid damage.
Q5: Does this housing meet international safety standards?
Yes. It holds CSA Type 4X, IP66, BASEEFA impact, and CENELEC electrostatic dissipation certifications for use in hazardous areas.
Shipping & Delivery
We ship all orders via FedEx, UPS, or DHL for fast and reliable worldwide delivery.
| Brand Name | |
| Model No. | 32000-28-05-05-030-03-02 |
| Product Type | Proximity Probe Housing |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
