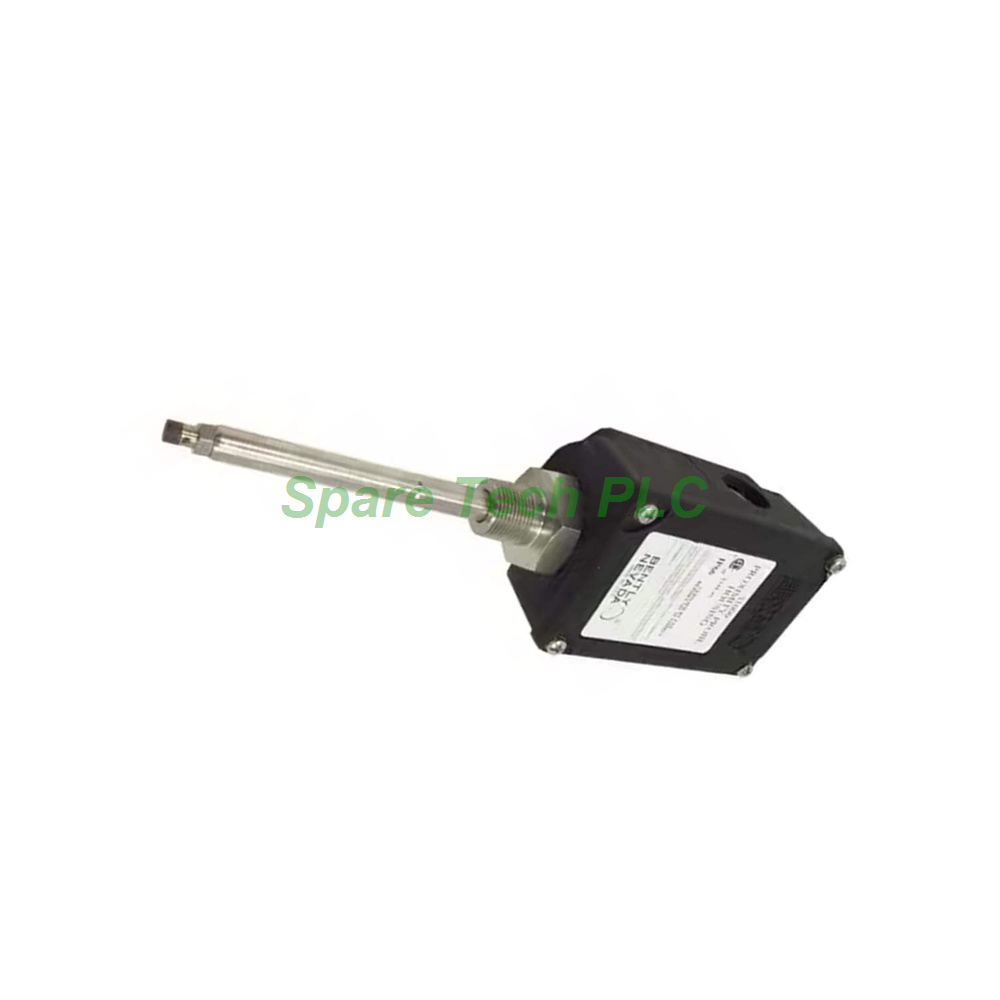

Bently Nevada Probe Housing 32000-29-05-10-080-07-02

32000-29-05-10-080-07-02: Rugged Protection for 3300 XL Probes

Product Introduction

This proximity probe housing safeguards the sensing element in harsh industrial environments. The Bently Nevada 32000-29-05-10-080-07-02 offers a complete mounting solution for the 3300 XL 8 mm probe system. It ensures correct positioning and reliable operation of the sensor. Consequently, it is a critical component for vibration monitoring systems in rotating machinery. Specifically, this model includes a 0.5-metre probe cable and a 100 mm standoff adapter.

Technical Specifications & Ordering Information

Each configuration code in the model number defines a specific attribute. The 32000-29-05-10-080-07-02 includes an 8 mm probe option with a connector protector. Additionally, the cable length is exactly 0.5 metres. The standoff adapter is 100 mm long, while the probe penetration is 80 mm.

Furthermore, the fittings option includes one PG21 x M20 fitting and two plugs. This unit also requires a 3/4-14 NPT mounting thread. Therefore, verifying these selections ensures correct fitment for your specific machine train. The entire assembly meets rigorous international standards for safety and performance.

Material and Mechanical Environment

The housing uses a glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic. This material contains conductive fibers for electrostatic dissipation. The sleeve and retaining chain are fabricated from AISI 304 stainless steel. Moreover, the outer sleeve and exterior screws use AISI 303 stainless steel for enhanced corrosion resistance. Neoprene® O-rings provide a secure environmental seal.

This robust construction allows the Bently Nevada 32000 housing to withstand extreme conditions. Specifically, it operates between -51°C and +105°C (-60°F to +221°F). Impact strength is certified by BASEEFA to withstand two separate 4 Joule impacts at both -39°C and 115°C. Furthermore, CSA verified samples to withstand a 7 Joule impact at ambient room temperature. These features make it highly reliable in critical rotating equipment protection.

Protection Ratings and Hazardous Area Compliance

The 32000-29-05-10-080-07-02 holds a Type 4X rating certified by CSA. In addition, it has an IP66 rating verified by SC115582-1 (e) 106. The housing also complies with CENELEC standard EN50014 for electrostatic dissipation in hazardous areas. Therefore, this product is suitable for use in demanding environments where dust, water, and static electricity pose significant risks. Users can confidently deploy this housing in refineries, power plants, and offshore platforms.

Installation Guideli3nes

Proper installation ensures optimal performance of the Bently Nevada 32000 proximity probe housing. First, verify that the mounting thread is 3/4-14 NPT, as this is mandatory when ordering the standoff adapter. Next, ensure the probe penetration of 80 mm matches your machine's设计要求. Meanwhile, confirm the 0.5-metre cable length is sufficient for your connection distance.

Additionally, use the included PG21 x M20 fitting and two plugs to seal the conduit entry. Tighten all exterior screws to the recommended torque values. Finally, check the O-ring condition during installation to maintain the IP66 seal. For best results, refer to the Bently Nevada installation manual for detailed step-by-step procedures.

Packaging List

• 1 x Bently Nevada 32000 Metric Proximity Probe Housing (complete assembly)

• 1 x AISI 304 stainless steel sleeve and retaining chain

• 1 x AISI 303 stainless steel outer sleeve and exterior screws

• 1 x Neoprene® O-ring (pre-installed)

• 1 x PG21 x M20 fitting

• 2 x Plugs for unused openings

• 1 x Installation hardware kit

Shipping Information

All orders are shipped via FedEx, UPS, or DHL to ensure fast and reliable delivery. Tracking numbers are provided upon shipment.

Frequently Asked Questions (FAQ)

1. What probe is compatible with the 32000-29-05-10-080-07-02 housing?
This housing is specifically designed for the Bently Nevada 3300 XL 8 mm proximity probe with a connector protector. It ensures a secure and accurate fit for that probe model.

2. Is this housing suitable for outdoor installation?
Yes, absolutely. The housing carries both Type 4X and IP66 ratings. Therefore, it is protected against water ingress, dust, and corrosion, making it suitable for outdoor and washdown environments.

3. What is the purpose of the standoff adapter option in this model?
The 100 mm standoff adapter positions the probe correctly relative to the target surface. This ensures accurate gap measurements and consistent vibration data acquisition.

4. Can I use this housing without the 3/4-14 NPT mounting thread?
No. The 3/4-14 NPT mounting thread is required when ordering the standoff adapter. Using a different thread type would compromise the seal and mechanical stability.

5. What temperature range can this housing withstand?
The Bently Nevada 32000 housing operates reliably from -51°C to +105°C (-60°F to +221°F). Its impact strength is also certified at both low and high temperature extremes.
