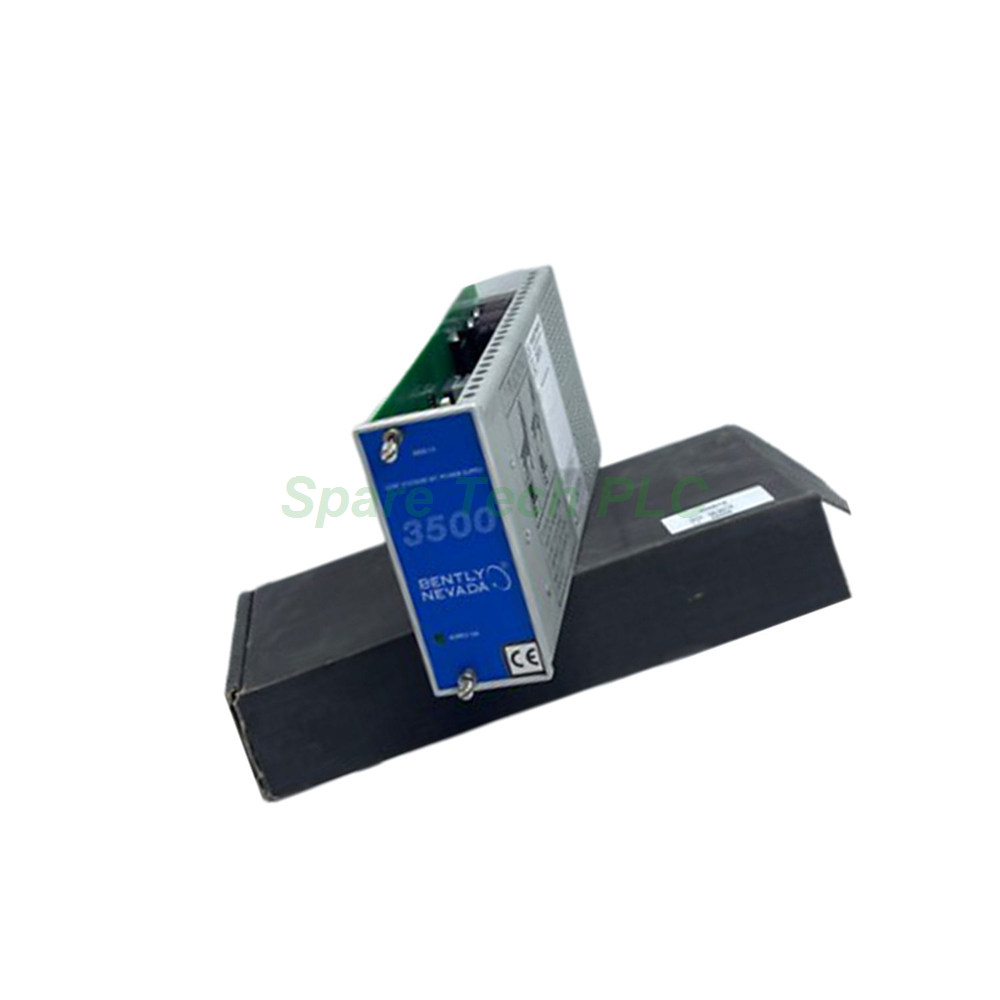

The Bently Nevada 3500/15 133292-01 serves as the Low Voltage DC Power Supply Module for 3500 series machinery protection systems. This module converts incoming DC power to the regulated voltages required by all other modules in the 3500 rack. The 133292-01 provides a robust and reliable power solution for critical monitoring applications.
This power supply option uses the Low Voltage DC Power Supply together with the Low Voltage DC Power Supply Input Module (PIM). The input voltage range spans from 20 to 30 Vdc, accommodating various industrial DC power sources. Two half-height slots on the left side of the rack accommodate power supplies, allowing for redundant configurations when both slots hold a power supply simultaneously.
The 3500/15 133292-01 delivers a maximum full rack current draw of 11.0 A for low voltage DC configurations. This capacity ensures sufficient power for fully populated 3500 racks with multiple monitoring modules installed.
The module includes comprehensive protection features. An under-voltage condition does not harm the supply or the PIM, ensuring continued operation during minor voltage dips. An over-voltage condition causes the fuse to open on the PIM, protecting the power supply and all connected modules from damage. This protection mechanism safeguards the entire monitoring system from electrical faults.
The front panel features a Supply OK LED that indicates when the power supply operates properly. This visual status indicator allows operators to quickly verify power availability during routine inspections.
The 133292-01 works in conjunction with the Power Input Module (PIM), which mounts directly behind the associated power supply. This arrangement provides efficient power distribution to all modules within the 3500 rack.
The 3500 series rack provides two half-height slots on the left side specifically for power supplies. Each slot accommodates one power supply, and both slots can hold a power supply at the same time. This design enables redundant power supply configurations for critical applications.
In a redundant configuration, if one power supply fails, the other continues to power the entire rack without interruption. This feature is particularly valuable in applications where continuous operation is essential, such as power generation, oil and gas, and other critical industrial processes.
The 3500/15 133292-01 operates across a wide temperature range. The operating temperature spans from -30 °C to +65 °C (-22 °F to +150 °F), making this power supply suitable for various industrial environments. The storage temperature extends from -40 °C to +85 °C (-40 °F to +185 °F), allowing for safe storage in extreme conditions.
The humidity tolerance reaches 95% non-condensing, ensuring reliable performance in humid environments commonly found in industrial facilities. The module is designed with a robust cooling system to handle thermal loads effectively.
The 133292-01 complies with multiple international standards and certifications. For electromagnetic compatibility, it meets the EMC Directive 2014/30/EU and follows EN 61000-6-2 for immunity and EN 61000-6-4 for emissions in industrial environments.
For electrical safety, the module complies with the LV Directive 2014/35/EU and meets EN 61010-1 standards. The RoHS Directive 2011/65/EU ensures the product is free from hazardous substances.
The 3500/15 power supply also carries maritime certifications from DNV GL for classification of ships, offshore units, and high-speed and light craft. Additionally, it meets ABS Rules for Condition of Classification, including Steel Vessels Rules and Offshore Units and Structures requirements. These certifications make the module suitable for marine and offshore applications.
The power supply module measures 120.7 mm in height, 50.8 mm in width, and 251.5 mm in depth (4.75 in x 2.0 in x 9.9 in). The weight is approximately 1.39 kg (3.06 lbs).
The module occupies two half-height slots on the left side of the 3500 rack. Each slot can accommodate one power supply, and both slots can hold a power supply simultaneously for redundant configurations. The Power Input Module is a special half-height module located directly behind the associated power supply. The rack space requirements are carefully designed to maximize power delivery while minimizing footprint.
Installing the Bently Nevada 3500/15 133292-01 requires attention to proper placement and connections. First, ensure the rack is powered down before inserting or removing any power supply module. Next, slide the power supply into the designated half-height slot until it seats fully. Then, install the corresponding Power Input Module in the slot directly behind the power supply.
For redundant configurations, install a second power supply in the remaining half-height slot. This provides backup power in case of supply failure. Each power supply should be connected to separate DC sources for true redundancy. Secure both modules using the retaining screws on the top and bottom. The connections follow standard industrial wiring practices.
No minimum rack load is required for this power supply, meaning it can operate even in lightly populated racks. The module is designed for reliable start-up and operation under all load conditions.
The 133292-01 requires minimal maintenance. The front panel Supply OK LED provides quick visual confirmation of proper operation. If the LED is not illuminated, check the input power source and connections.
The internal fuse on the PIM protects against over-voltage conditions. If the fuse opens due to over-voltage, investigate the input power source before replacing the fuse or power supply. Under-voltage conditions do not damage the power supply, allowing for automatic recovery when normal voltage returns.
The shipment includes the following items:
1 x Bently Nevada 3500/15 133292-01 Low Voltage DC Power Supply Module
1 x Installation and Configuration Manual
The Power Input Module (PIM) is included separately or may already be installed in the rack. Certificates and warranty documents are not included in the packaging list and are handled separately.
Shipping Method: FedEx, UPS, or DHL
What is the Bently Nevada 3500/15 133292-01?
The 133292-01 is the Low Voltage DC Power Supply Module for 3500 series machinery protection systems. It converts 20-30 Vdc input to regulated power for all rack modules.
What is the maximum current draw of the 3500/15 power supply?
The 3500/15 133292-01 delivers a maximum full rack current of 11.0 A for low voltage DC configurations.
Can I use two power supplies for redundancy?
Yes, the 3500 rack provides two half-height slots for power supplies. Both slots can hold a power supply simultaneously, allowing for redundant configurations.
What happens if the input voltage goes out of range?
An under-voltage condition does not harm the supply or the PIM. An over-voltage condition causes the fuse to open on the PIM, protecting the system.
What certifications does the 3500/15 133292-01 carry?
The module complies with EMC Directive 2014/30/EU, LV Directive 2014/35/EU, and RoHS Directive 2011/65/EU. It also carries DNV GL and ABS maritime certifications.
