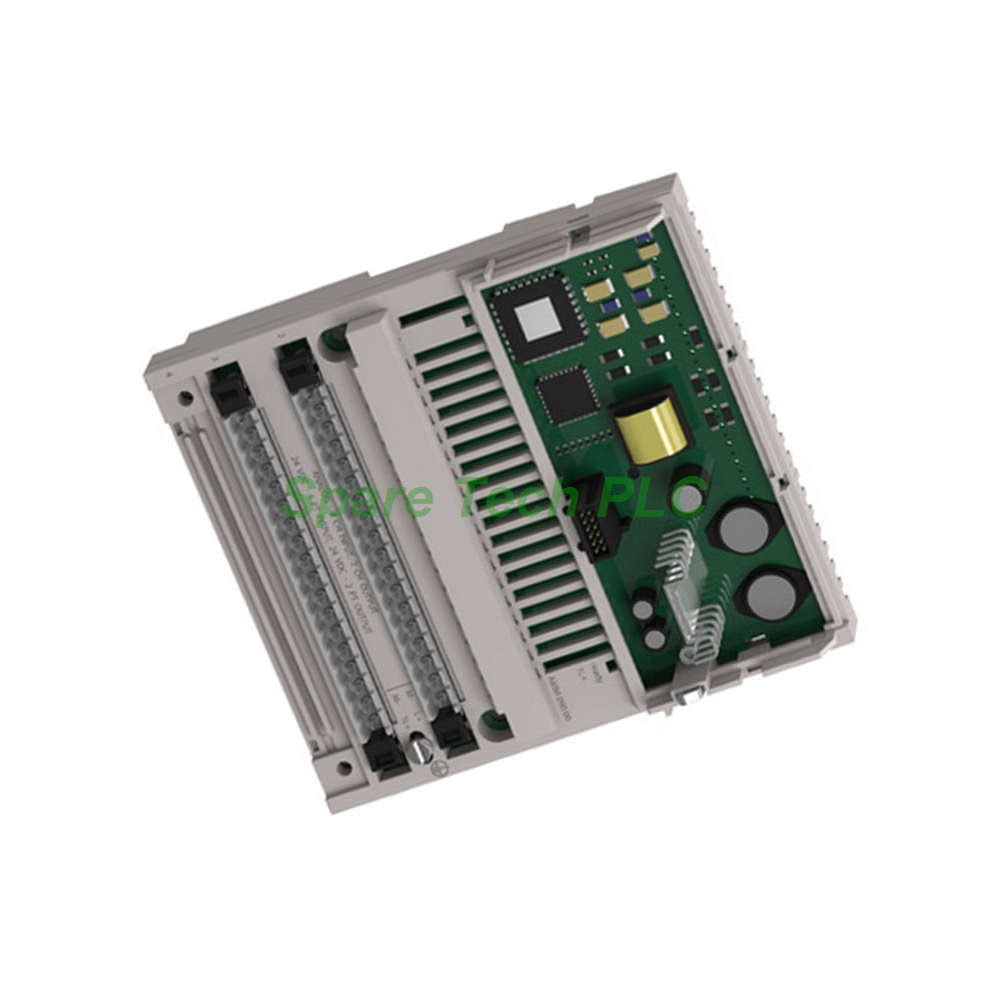

170ANR12091 Modicon Momentum I/O Base Schneider

Product Introduction

The Schneider Electric 170ANR12091 is a comprehensive I/O base unit designed for the Modicon Momentum automation platform. This module integrates both discrete and analog I/O capabilities, featuring 8 discrete inputs, 8 discrete outputs, 6 analog inputs, and 4 analog outputs in one compact housing. This rich I/O mix makes it an ideal solution for applications requiring both digital and analog signal processing. Its rugged design supports a wide operating temperature range of 0°C to 60°C and withstands humidity up to 95% non-condensing. Clean indoor environments with no corrosive chemicals will ensure this unit delivers long-term, dependable performance.

Comprehensive I/O Configuration

The 170ANR12091 offers an impressive array of I/O points that cover most field device connectivity needs. For digital control, this base unit provides 8 discrete inputs and 8 discrete outputs. These channels handle standard 24 VDC signals, enabling direct connection to sensors, switches, relays, and small actuators. Meanwhile, the module includes 6 analog inputs and 4 analog outputs for continuous process signals. The analog inputs typically accept standard 4-20 mA or 0-10 V signals from transmitters and sensors, while the analog outputs drive valves, positioners, and variable-speed drives. This balanced I/O mix allows the 170ANR12091 to serve as a standalone control point or as part of a larger distributed system.

Integration with Modicon Momentum Platform

The 170ANR12091 I/O base unit integrates seamlessly into the Modicon Momentum architecture. You simply mount this base on a standard DIN rail and attach a compatible communication adaptor, such as the 170DNT11000 or 170PNT16020, to enable network connectivity. The base unit provides the physical mounting and electrical interconnection for both the I/O modules and the communication adaptor. Furthermore, the unit receives its power from the backplane, which simplifies your wiring design. This modular approach allows you to combine different I/O bases and adaptors to create a customized control system that exactly matches your application requirements.

Mechanical & Environmental Parameters

The 170ANR12091 features a robust mechanical design suitable for demanding industrial environments. It operates reliably across a temperature range of 0°C to 60°C, which covers most factory floor conditions. For storage, this unit tolerates extreme temperatures from -40°C to 85°C, allowing safe warehousing in unheated spaces. The module handles a relative humidity of up to 95% without condensation, both during operation and storage. Furthermore, the 170ANR12091 functions properly at altitudes up to 5,000 meters above sea level, making it suitable for installations in high-altitude regions. This unit is specifically intended for clean indoor environments and you must protect it from corrosive chemicals to maintain its operational integrity.

Installation and Setup Guide

Installing the 170ANR12091 I/O base unit requires only basic tools and minimal effort. First, you secure the base unit onto a standard DIN rail using the integrated mounting clips. Next, you attach a compatible communication adaptor to the top of the base unit, which establishes the connection to your network. Then, you connect your field devices to the spring-cage terminal blocks located on the front face of the unit. The terminal blocks are clearly labeled for each I/O channel, which simplifies wiring and reduces the chance of errors. Finally, you apply power to the system and the unit will begin communicating with your PLC or controller automatically.

Packaging and Logistics

Each 170ANR12091 I/O base unit ships in a single protective carton. The package includes the base unit itself and a printed installation manual.

Package Contents:

• 1 x Schneider Electric 170ANR12091 I/O Base Unit

• Installation Manual
  (We do not include certificates or warranty cards in the package.)

Shipping:
We ship all orders via trusted global carriers, including FedEx, UPS, and DHL, to guarantee prompt and secure delivery.

Frequently Asked Questions (FAQ)

1. What types of I/O does the 170ANR12091 support?
The Schneider Electric 170ANR12091 provides a mixed I/O configuration. It includes 8 discrete inputs, 8 discrete outputs, 6 analog inputs, and 4 analog outputs in a single base unit, covering both digital and analog control requirements.

2. What communication adaptors are compatible with the 170ANR12091?
The 170ANR12091 works with standard Modicon Momentum communication adaptors. For instance, you can pair it with the 170DNT11000 for Profibus DP networks or the 170PNT16020 for Modbus Plus networks, among other compatible options.

3. What is the operating temperature range for the 170ANR12091?
This base unit operates effectively within an ambient temperature range of 0°C to 60°C. For storage, it tolerates a much broader range from -40°C to 85°C, ensuring long-term preservation.

4. How does the 170ANR12091 connect to field devices?
You connect field devices directly to the spring-cage terminal blocks on the front of the 170ANR12091. Each terminal is clearly labeled for its specific I/O channel, which simplifies wiring and maintenance procedures.

5. Can the 170ANR12091 work in high-humidity environments?
Yes. The 170ANR12091 operates reliably at a relative humidity of up to 95% without condensation. However, you must ensure the environment is clean and free from corrosive chemicals for optimal long-term performance.
