Zelio Logic SR3B261JD 12V DC Smart Relay Schneider

Zelio Logic SR3B261JD 12V DC Modular Smart Relay from Schneider Electric

Product Introduction

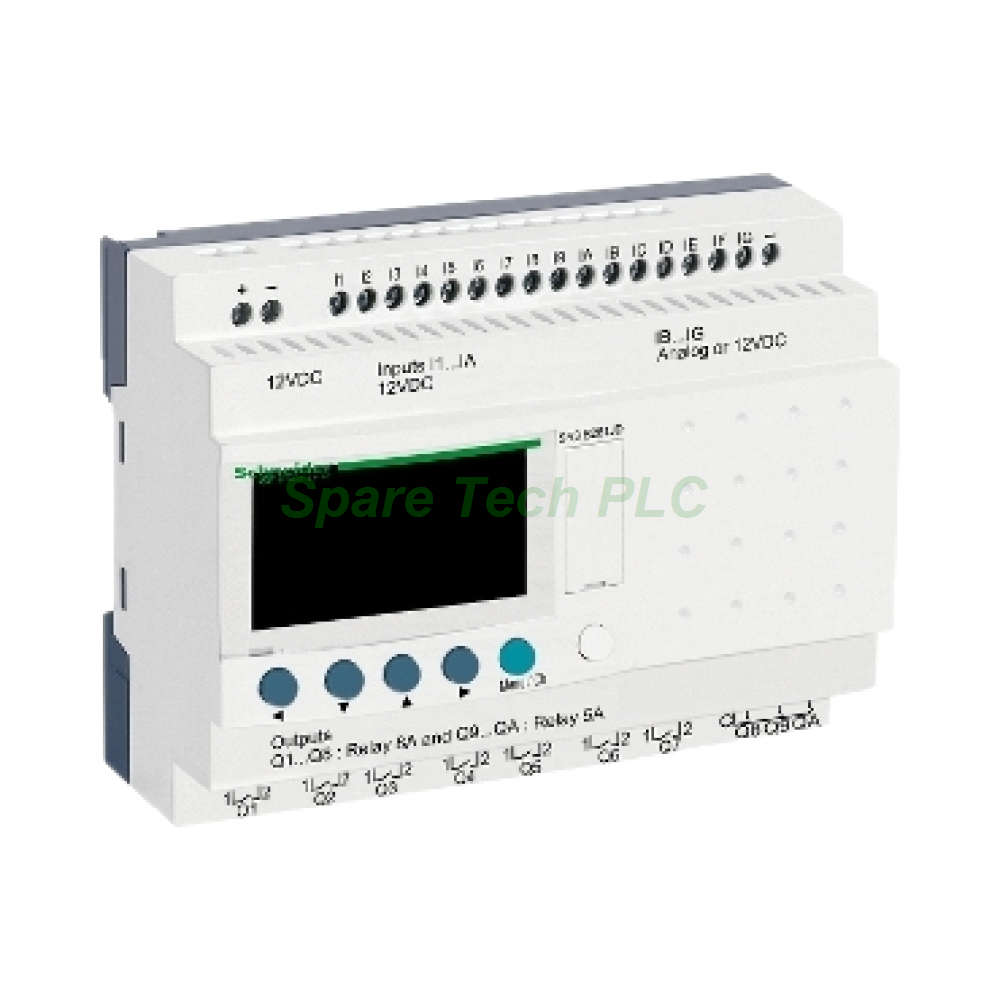

The SR3B261JD belongs to the Schneider Electric Zelio Logic range of modular smart relays. This controller offers 26 I/O points for larger automation tasks. Specifically, it provides 16 digital inputs and 10 relay outputs. Among the inputs, 6 channels are configurable as analog inputs. The inputs follow IEC 61131-2 Type 1 specifications for 12V DC signals. Therefore, it suits mobile equipment and battery-powered systems. Furthermore, the integrated real-time clock supports time-based control functions. Meanwhile, the LCD screen and navigation buttons simplify on-site programming. Additionally, the SR3B261JD runs on 12V DC and mounts on a 35mm DIN rail. As a result, it suits vehicles, solar systems, and remote installations.

Technical Specifications

The SR3B261JD delivers solid performance for medium control systems. Its key ratings include:

• Number of I/O points: 26

• Digital inputs: 16 (6 configurable as analog inputs, 12V DC, IEC 61131-2 Type 1)

• Digital outputs: 10 relay

• Relay output current: 5 A per output

• Supply voltage: 12V DC (10.4–14.4V)

• Clock: Integrated real-time clock

• Display: LCD with navigation buttons

• Program memory: 240 lines ladder / 500 blocks FBD

The relay outputs handle up to 5A each. Consequently, they drive contactors, solenoids, and indicator lamps directly. Besides, the analog input option accepts 0–10V signals for simple measurement tasks. For instance, it monitors temperature, pressure, or level sensors. Moreover, the modular design allows extra I/O and communication modules. Therefore, the relay can join Ethernet or RS485 networks when needed.

Mechanical and Environmental Parameters

The SR3B261JD is built for industrial environments. First, its operating temperature range spans -20 to 55 °C. Next, the mechanical life of the relay output reaches 10,000,000 cycles. In addition, the electrical life reaches 500,000 cycles under AC-12 at 230V and 1.5A. The dimensions measure 90 × 124.6 × 59.5 mm (H×W×D). Meanwhile, the weight is about 0.30 kg. The housing uses durable thermoplastic material. Furthermore, the 35mm DIN rail mount allows quick installation. As a result, maintenance and replacement stay simple.

Installation Guide

Installing the SR3B261JD takes only a few steps. First, switch off the power supply and verify zero voltage. Next, clip the relay onto a 35mm DIN rail until it clicks. Then, connect the 12V DC supply to the dedicated terminals. Besides, wire the inputs and outputs according to your wiring diagram. Moreover, keep signal cables away from power cables to reduce noise. Finally, power up the unit and load your program via the LCD or software. However, always follow local electrical codes during wiring. Therefore, a qualified technician should perform the final commissioning.

Packaging List

• 1 × Schneider Zelio Logic SR3B261JD Modular Smart Relay

• 1 × Product label with model and rating details

• 1 × Carton box with protective packaging

Shipping
We ship worldwide via Fedex, UPS, and DHL. Orders dispatch within 1–2 business days.

FAQ

Q1: What is the supply voltage of the SR3B261JD?
A: It runs on 12V DC with an operating range of 10.4 to 14.4V. Therefore, it suits battery-powered and mobile systems.

Q2: Can the inputs work as analog channels?
A: Yes. Six of the sixteen digital inputs are configurable as analog inputs. Hence, they accept 0–10V signals for simple measurement.

Q3: How many outputs does this smart relay have?
A: It provides 10 relay outputs. Each output handles up to 5A for direct load control.

Q4: Does the SR3B261JD support communication?
A: Yes. It connects to Ethernet or RS485 networks through extension modules. Consequently, it fits distributed control systems.
