Schneider SR3B261FU Zelio Logic Smart Relay 26 I/O

Zelio Logic SR3B261FU 100-240V AC Modular Smart Relay from Schneider Electric

Product Introduction

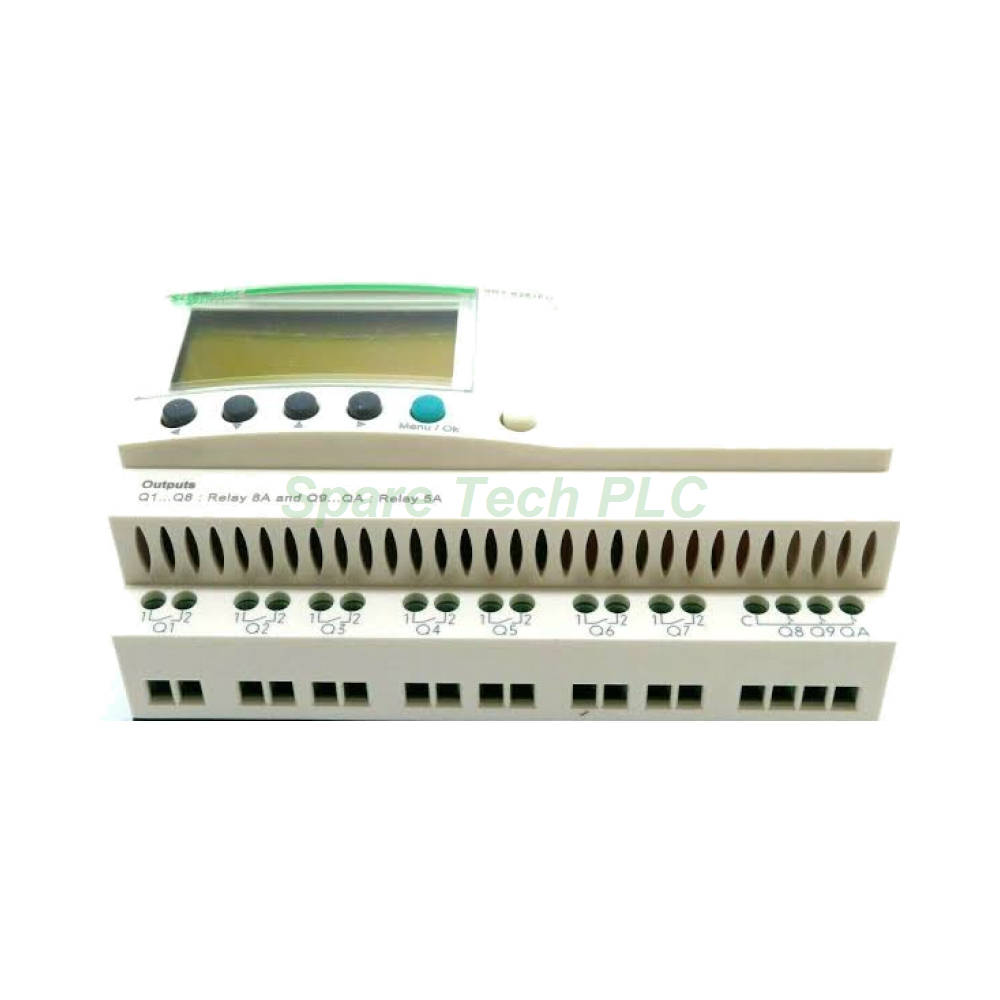

The SR3B261FU belongs to the Schneider Electric Zelio Logic range of modular smart relays. This controller offers 26 I/O points for larger automation tasks. Specifically, it provides 16 digital inputs and 10 relay outputs. Among the inputs, 6 channels are configurable as analog inputs. The AC input design accepts 100-240V AC signals directly. Therefore, it simplifies wiring in mains-powered control panels. Furthermore, the integrated real-time clock supports time-based control functions. Meanwhile, the LCD screen and navigation buttons simplify on-site programming. Additionally, the SR3B261FU runs on 100-240V AC and mounts on a 35mm DIN rail. As a result, it suits water treatment, pumping stations, and building automation.

Technical Specifications

The SR3B261FU delivers solid performance for medium control systems. Its key ratings include:

• Number of I/O points: 26

• Digital inputs: 16 (6 configurable as analog inputs, 100-240V AC)

• Digital outputs: 10 relay

• Relay output current: 5 A per output

• Supply voltage: 100-240V AC (85-264V, 50/60 Hz)

• Clock: Integrated real-time clock

• Display: LCD with navigation buttons

• Program memory: 240 lines ladder / 500 blocks FBD

The relay outputs handle up to 5A each. Consequently, they drive contactors, solenoids, and indicator lamps directly. Besides, the AC input design accepts signals straight from push buttons and limit switches. For instance, it works well in pump control, ventilation, and lighting systems. Moreover, the modular design allows extra I/O and communication modules. Therefore, the relay can join Ethernet or RS485 networks when needed.

Mechanical and Environmental Parameters

The SR3B261FU is built for industrial environments. First, its operating temperature range spans -20 to 55 °C. Next, the mechanical life of the relay output reaches 10,000,000 cycles. In addition, the electrical life reaches 500,000 cycles under AC-12 at 230V and 1.5A. The dimensions measure 90 × 124.6 × 59.5 mm (H×W×D). Meanwhile, the weight is about 0.30 kg. The housing uses durable thermoplastic material. Furthermore, the 35mm DIN rail mount allows quick installation. As a result, maintenance and replacement stay simple.

Installation Guide

Installing the SR3B261FU takes only a few steps. First, switch off the power supply and verify zero voltage. Next, clip the relay onto a 35mm DIN rail until it clicks. Then, connect the 100-240V AC supply to the dedicated terminals. Besides, wire the inputs and outputs according to your wiring diagram. Moreover, keep signal cables away from power cables to reduce noise. Finally, power up the unit and load your program via the LCD or software. However, always follow local electrical codes during wiring. Therefore, a qualified technician should perform the final commissioning.

Packaging List

• 1 × Schneider Zelio Logic SR3B261FU Modular Smart Relay

• 1 × Product label with model and rating details

• 1 × Carton box with protective packaging

Shipping
We ship worldwide via Fedex, UPS, and DHL. Orders dispatch within 1–2 business days.

FAQ

Q1: What is the supply voltage of the SR3B261FU?
A: It runs on 100-240V AC with a range of 85 to 264V. Therefore, it suits mains-powered control panels directly.

Q2: Do the inputs accept AC signals?
A: Yes. All 16 digital inputs accept 100-240V AC signals. Hence, no extra interface relay is required.

Q3: How many outputs does this smart relay have?
A: It provides 10 relay outputs. Each output handles up to 5A for direct load control.

Q4: Does the SR3B261FU support communication?
A: Yes. It connects to Ethernet or RS485 networks through extension modules. Consequently, it fits distributed control systems.
