SICK DFS60B-S1MA10000 Incremental Encoder 10000 PPR

SICK DFS60B-S1MA10000 Incremental Encoder

Product Introduction

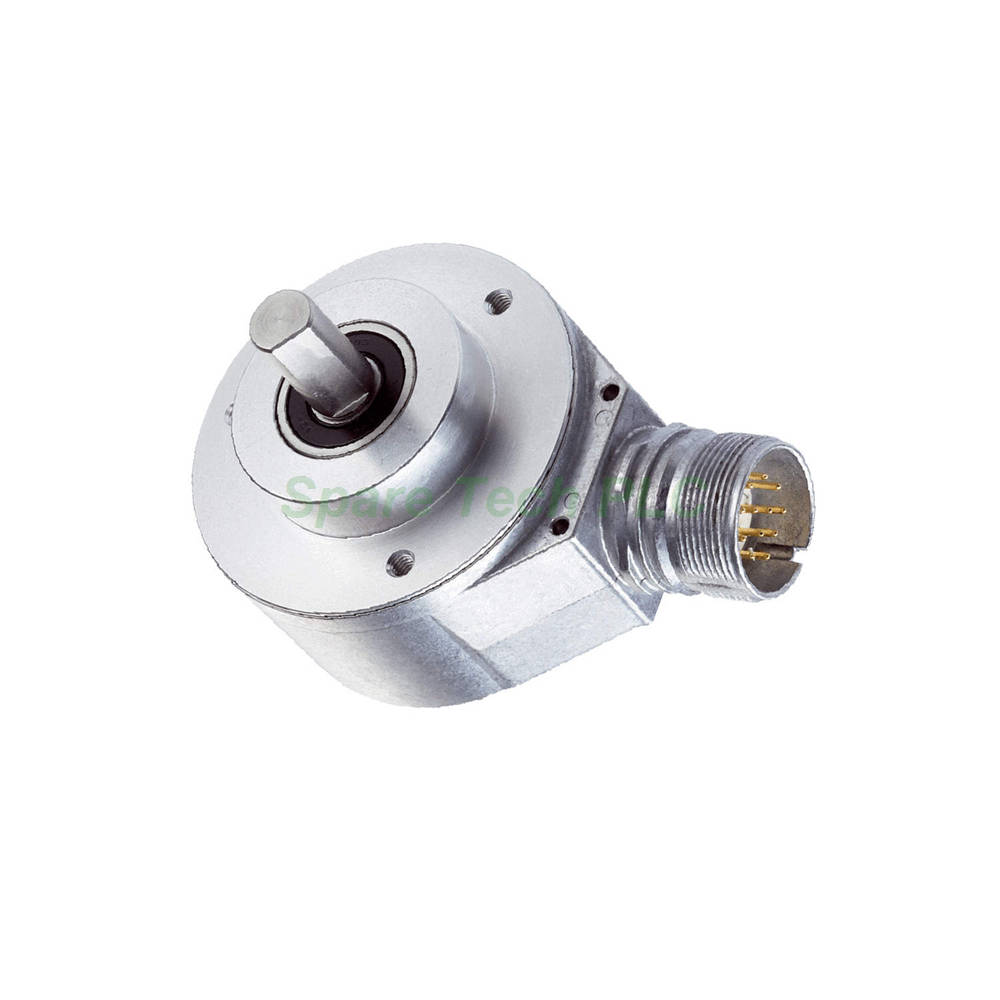

The SICK DFS60B-S1MA10000 is a programmable incremental encoder built for precision motion feedback. It belongs to the DFS60 series, which is known for high resolution and flexible configuration. This model delivers 10,000 pulses per revolution with a 6-channel signal output. Furthermore, the 6 x 10 mm solid shaft with servo flange allows direct mounting on motors and machinery. The unit accepts a wide supply voltage of 4.5 to 32 V, so it works with both TTL and HTL systems. Additionally, the M23 12-pin radial connector ensures a secure electrical interface. Because of its aluminum die-cast housing and IP67 rating, the encoder survives dust, moisture, and vibration. Therefore, the DFS60B-S1MA10000 fits applications such as servo motors, packaging lines, and printing equipment. Its compact installation depth also saves space in tight machine designs.

Technical Specifications

First, the pulses per revolution reach 10,000 PPR. The measuring step deviation at a non-binary number of lines is ±0.01°. Error limits stay at ±0.05°. The communication interface is incremental with TTL / HTL detail. The factory setting uses a TTL output level. Moreover, the encoder offers 6 signal channels and a hardware 0-set function. The 0-SET function is H-active, with L = 0-3 V and H = 4.0 V to Us. The initialization time is 32 ms with mechanical zero pulse width, or 30 ms otherwise. Output frequency reaches up to 600 kHz. Load current stays at or below 30 mA. Power consumption is ≤0.7 W without load. Besides, the reference signal is one channel at 90° electrical, logically gated with A and B. Reverse polarity protection and short-circuit protection of the outputs are both included. Meanwhile, the MTTFD rating is 300 years according to EN ISO 13849-1. This product is a standard product and does not constitute a safety component under the Machinery Directive.

Mechanical and Environmental Parameters

The DFS60B-S1MA10000 uses a solid shaft with servo flange mechanical design. Shaft diameter is 6 mm with a flat, and shaft length is 10 mm. The shaft material is stainless steel, while the flange and housing use aluminum. Specifically, the housing is aluminum die cast, with stainless steel available on request. Weight is approximately 0.3 kg. Start-up torque is 0.5 Ncm at +20 °C, and operating torque is 0.3 Ncm at +20 °C. Permissible shaft loading is 80 N radial and 40 N axial. The maximum operating speed is 9,000 rpm. Moment of inertia of the rotor is 6.2 gcm². Bearing lifetime reaches 3.6 x 10^10 revolutions. Angular acceleration is ≤500,000 rad/s². For ambient data, EMC follows EN 61000-6-2 and EN 61000-6-3. The enclosure rating is IP67 on the housing side and IP65 on the shaft side. Permissible relative humidity is 90% with no condensation. Operating temperature ranges from -40 °C to +100 °C, and storage temperature spans -40 °C to +100 °C without package. Resistance to shocks is 70 g for 6 ms, and resistance to vibration is 30 g from 10 Hz to 2,000 Hz.

Installation Guide

Mounting the DFS60B-S1MA10000 starts with checking the shaft and flange fit. First, slide the 6 mm shaft onto the drive axis and secure the servo flange. Next, keep radial shaft load below 80 N and axial load below 40 N. Then, connect the M23 12-pin radial male connector to the supply and signal lines. After that, apply 4.5 to 32 V DC within the allowed range. Meanwhile, confirm the wiring for reverse polarity protection and short-circuit protection. Besides, set the 0-set function through the hardware pin if needed. For programming, adjust output voltage, zero pulse position, zero pulse width, and pulse number. Finally, verify the output frequency stays at or below 600 kHz during operation. Allow for self-heating of 3.3 K per 1,000 rpm when designing the temperature range.

Packaging List

• 1 x SICK DFS60B-S1MA10000 Incremental Encoder

• 1 x Mounting Accessories Set

• 1 x Quick Start Guide

FAQ

Q1: How many pulses per revolution does the DFS60B-S1MA10000 provide?
A: It provides 10,000 PPR with 6 signal channels and a ±0.05° error limit.

Q2: What supply voltage does this encoder accept?
A: The operating voltage range is 4.5 to 32 V, supporting TTL and HTL interfaces.

Q3: What is the maximum operating speed of the DFS60B-S1MA10000?
A: The maximum operating speed is 9,000 rpm with a 6 x 10 mm shaft.

Q4: What connector type does the encoder use?
A: It uses a male M23 12-pin radial connector for power and signal.

Q5: What shipping methods are available?
A: We ship via Fedex, UPS, and DHL.
