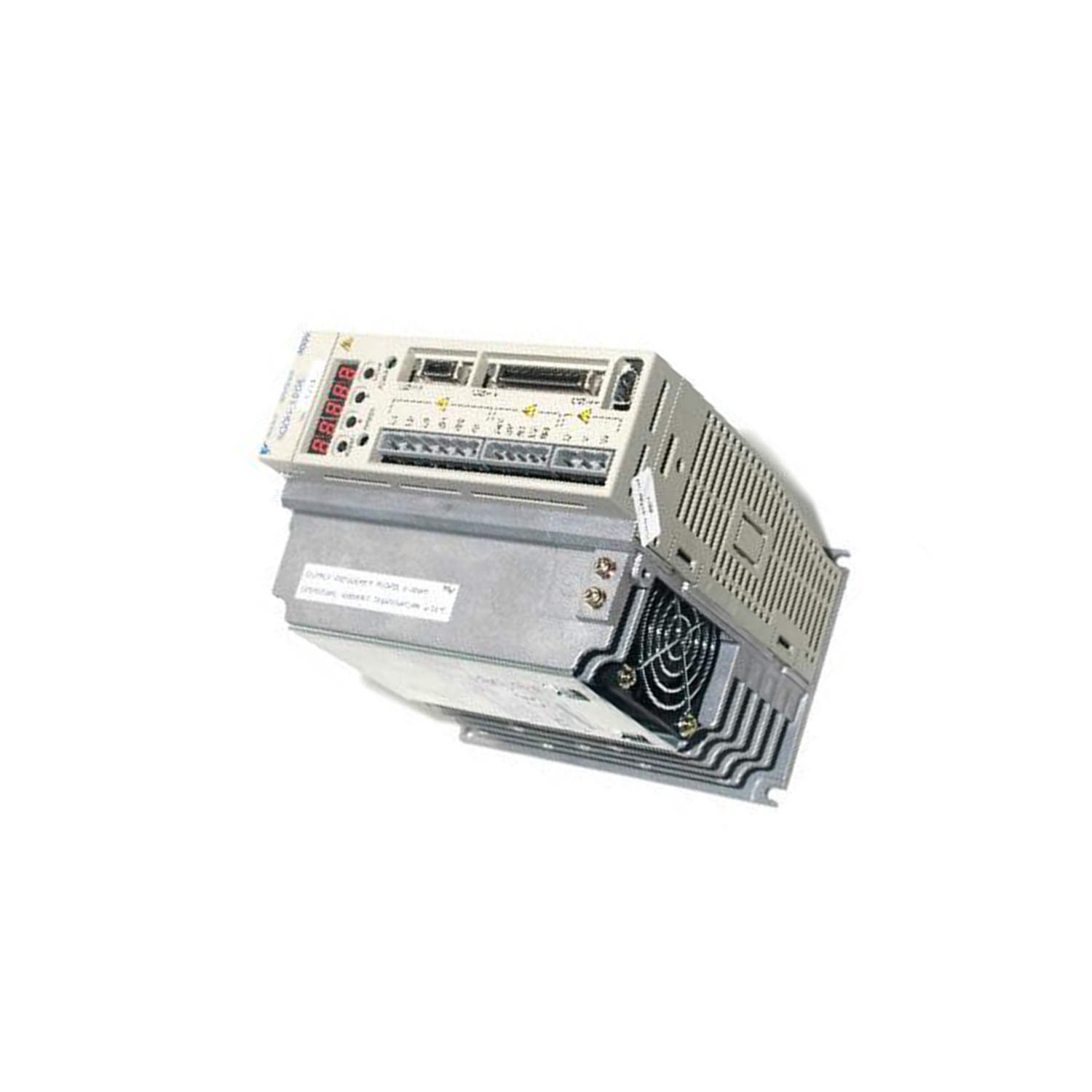

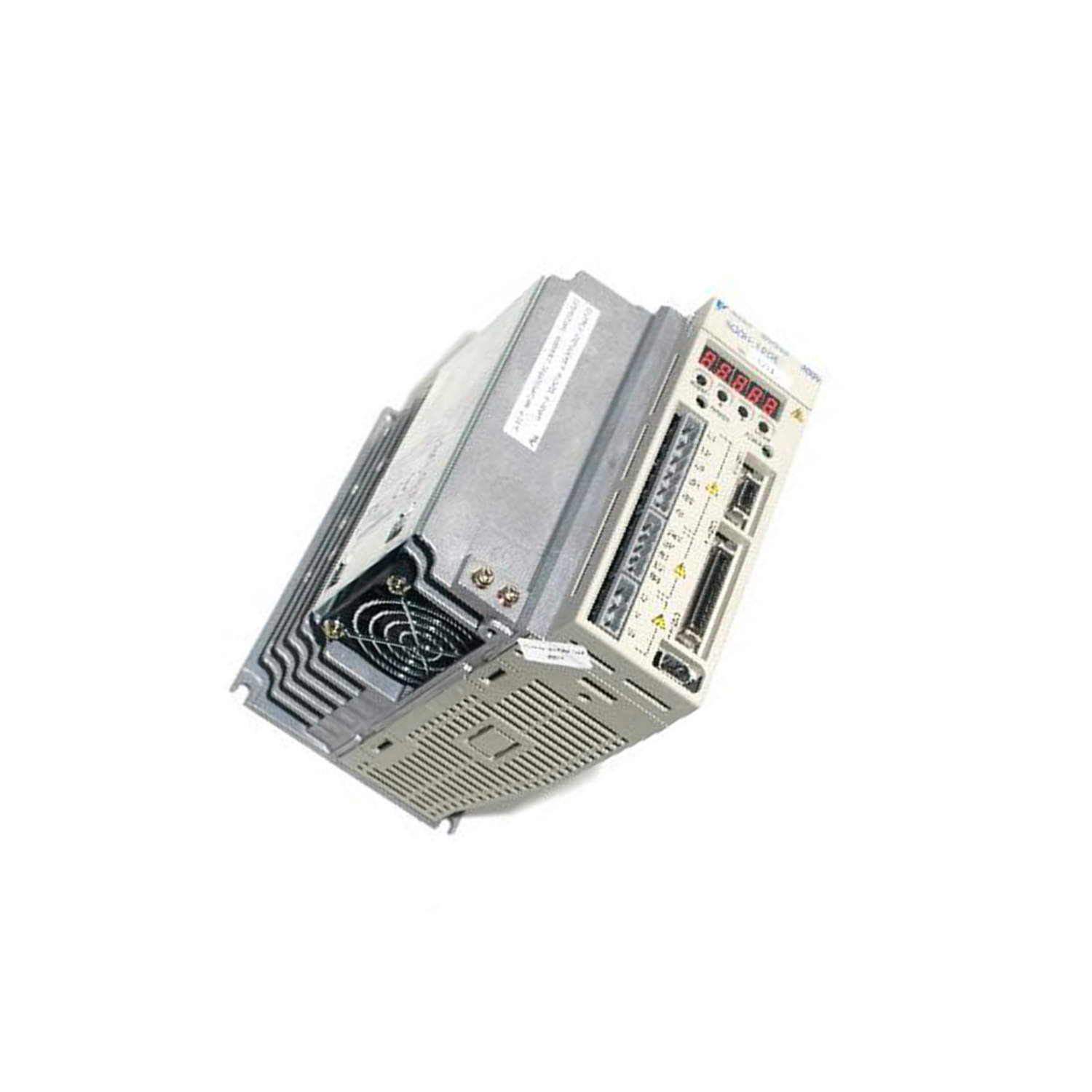

## Yaskawa SGDH-10DE Sigma II Servo Amplifier

### Product Introduction
The Yaskawa SGDH-10DE is a servo amplifier from the Sigma II series, engineered for reliable performance in demanding industrial environments. This unit operates within an ambient temperature range of 0-55°C and uses natural air cooling to maintain optimal conditions without extra fans or coolers. Weighing 6.00 lbs (2.72 kg), it offers a compact footprint for easy integration into machinery.

### Technical Specifications Analysis
- **Manufacturer:** Yaskawa
- **Product Type:** Servo Amplifier
- **Product Line:** Sigma II
- **Part Number:** SGDH-10DE
- **Weight:** 6.00 lbs (2.72 kg)
- **Ambient Temperature:** 0-55°C
- **Cooling Method:** Natural Air Cooling
- **Humidity Range:** 20% to 80% (no condensation)
- **Power Rating:** 1 kW
- **Input Current:** 3.5 A
- **Input Voltage:** 380-480 V AC
- **Input Phase:** 3 Phase
- **Input Frequency:** 50/60 Hz

This amplifier delivers 1 kW of power, suitable for moderate-load servo applications. The 3-phase input voltage of 380-480 V AC at 50/60 Hz ensures compatibility with global industrial power systems. The natural air cooling design eliminates the need for auxiliary cooling, reducing maintenance points.

### Application Scenarios & Usage Methods
The SGDH-10DE excels in automation tasks such as CNC machines, packaging equipment, robotic arms, and conveyor systems. Use it with compatible Yaskawa Sigma II servo motors for precise speed, torque, and position control. Install it in a clean, ventilated cabinet to maximize natural air cooling effectiveness.

### Installation Guide & Packing List
**Installation Guide:**
- Mount the amplifier on a flat, vertical surface to allow natural air flow.
- Ensure ambient temperature stays within 0-55°C and humidity between 20% to 80% without condensation.
- Connect a 3-phase power supply of 380-480 V AC at 50/60 Hz. Use proper circuit protection.
- Wire the servo motor and encoder per Yaskawa manual (not included).

**Packing List:**
- 1 x Yaskawa SGDH-10DE Servo Amplifier
- Documentation (if available)

### Purchasing Advice
When buying the SGDH-10DE, verify your power supply matches 380-480 V AC 3-phase. Confirm your motor is compatible with the Sigma II series. This unit suits applications needing 1 kW output and natural cooling. Check stock availability at SpareTechPLC for fast delivery.

### Repair & Maintenance Tips
- Keep the amplifier free of dust and debris to maintain natural air cooling.
- Regularly inspect connections for tightness and corrosion.
- Monitor ambient temperature; do not exceed 55°C.
- If the unit fails, consult a qualified technician. Do not attempt internal repairs without proper training.

### FAQs
**Q1: What is the power rating of the SGDH-10DE?**
A1: The power rating is 1 kW.

**Q2: What input voltage does this servo amplifier require?**
A2: It requires 380-480 V AC, 3-phase, at 50/60 Hz.

**Q3: Can I use this amplifier in a humid environment?**
A3: Yes, as long as humidity stays between 20% to 80% without condensation.

**Q4: Does the SGDH-10DE need a fan for cooling?**
A4: No, it uses natural air cooling only.

**Q5: What is the weight of the SGDH-10DE?**
A5: It weighs 6.00 lbs (2.72 kg).
