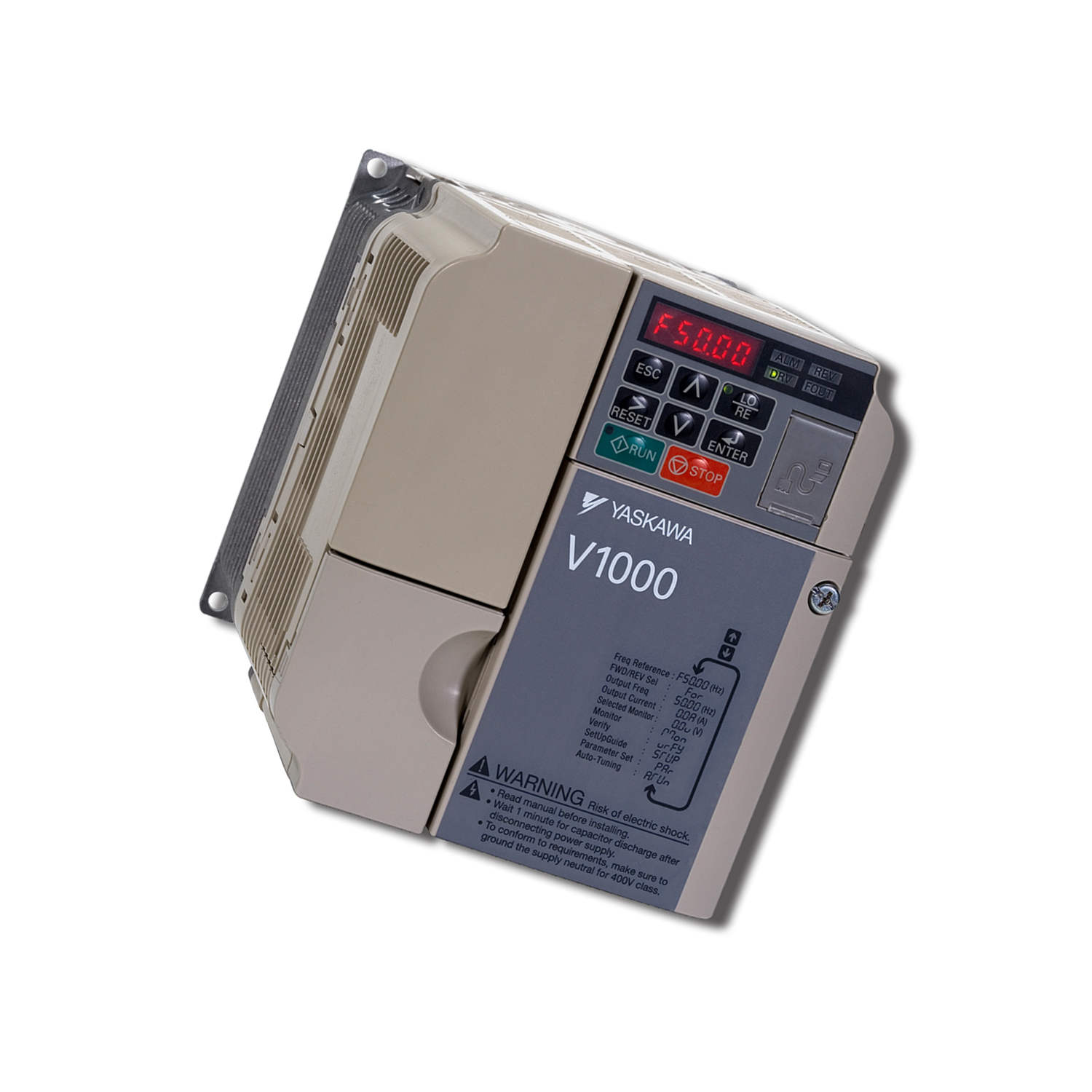

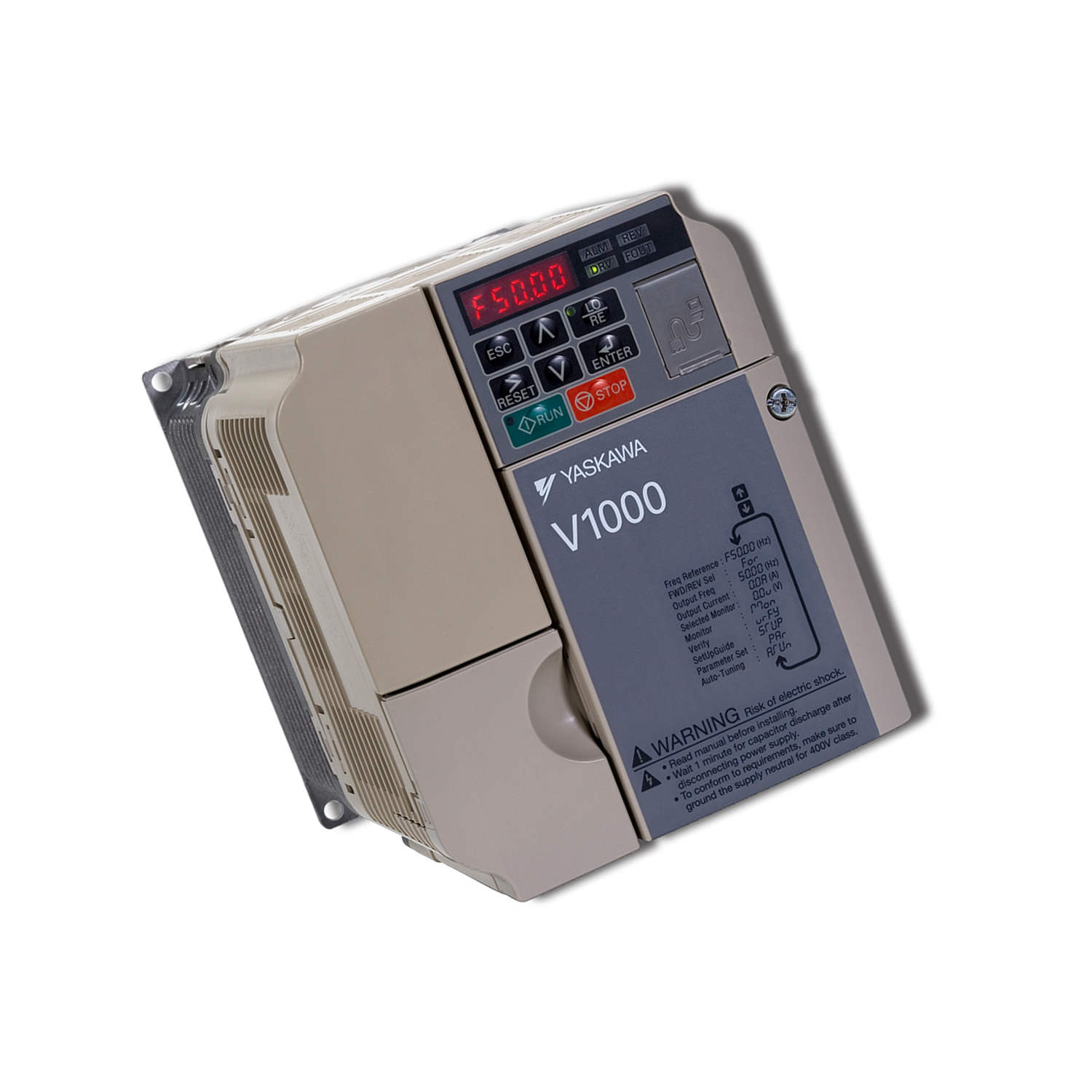

Yaskawa CIMR-VU4A0009FAA V1000 AC Microdrive

## Product Introduction

The Yaskawa CIMR-VU4A0009FAA is a variable speed industrial AC microdrive from the V1000 series. This adjustable frequency drive delivers precise motor control for a wide range of industrial applications. It operates on a 380 to 480 Volt AC at 50/60 Hertz 3-Phase input and provides an output current of 8.8 Amp (Normal Duty) or 7.2 Amp (Heavy Duty). The drive supports output power ratings of 5 HP (Normal Duty) and 4 HP (Heavy Duty). Its compact NEMA 1/IP20 enclosure measures 4.25 Inch Width x 6.06 Inch Depth x 5.89 Inch Height, making it suitable for panel mounting.

## Technical Specifications Analysis

The CIMR-VU4A0009FAA features vector control technology for high-performance motor regulation. Key electrical parameters include a 3-phase input voltage range of 380 to 480 VAC at 50/60 Hz. The drive delivers 8.8 Amp output current under normal duty and 7.2 Amp under heavy duty conditions. Output power is rated at 5 HP normal duty and 4 HP heavy duty. The enclosure is rated NEMA 1 and IP20, providing protection against dust and incidental contact. The drive is approved by UL, CUL, UL 508C, CSA C22.2, CE, and TUV, ensuring compliance with international safety standards.

## Application Scenarios & Usage Methods

This microdrive is ideal for controlling AC induction motors in applications such as conveyors, fans, pumps, compressors, and material handling equipment. Use it in manufacturing lines, HVAC systems, and automated machinery. The adjustable frequency feature allows precise speed control, improving process efficiency and energy savings. Operators can configure parameters via the integrated keypad or optional software for customized performance.

## Installation Guide & Packing List

Mount the drive in a clean, dry location with adequate ventilation. Ensure the mounting surface is flat and non-flammable. The unit ships with the drive, a user manual, and mounting hardware. Follow the manual for proper wiring and grounding. Do not install in environments exceeding the IP20 protection rating.

## Purchasing Advice

Select the CIMR-VU4A0009FAA if your application requires a compact, reliable drive for 5 HP or 4 HP motors. Verify your input voltage matches 380-480 VAC 3-phase. This model suits both normal and heavy duty cycles, offering flexibility. Check compatibility with your motor type and load requirements.

## Repair & Maintenance Tips

Periodically inspect the drive for dust buildup on heatsinks and fans. Clean with low-pressure air to prevent overheating. Check all electrical connections for tightness. Do not attempt internal repairs without proper training. Contact Yaskawa or an authorized service center for component-level repairs.

## FAQs

**Q: What is the input voltage range for the CIMR-VU4A0009FAA?**
A: The input voltage is 380 to 480 Volt AC at 50/60 Hertz 3-Phase.

**Q: What are the output current ratings?**
A: Output current is 8.8 Amp for normal duty and 7.2 Amp for heavy duty.

**Q: What enclosure protection does this drive have?**
A: The enclosure is rated NEMA 1 and IP20.

**Q: What approvals does the CIMR-VU4A0009FAA hold?**
A: It holds UL, CUL, UL 508C, CSA C22.2, CE, and TUV approvals.

**Q: What is the power output for heavy duty applications?**
A: Heavy duty output power is 4 HP.
