Yokogawa TA50-0N 40-Point Terminal Block Unit

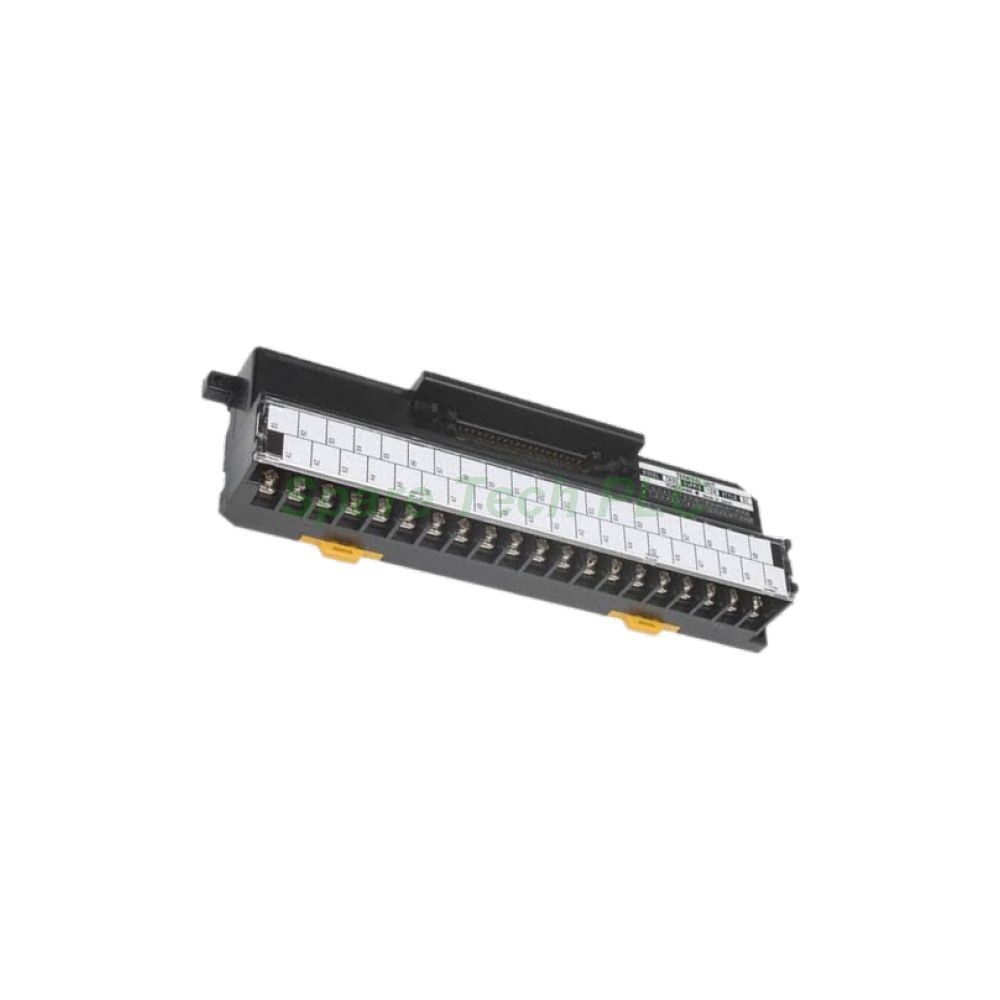

Yokogawa TA50-0N: 40-Point M3.5 Connector Terminal Block

Product Introduction

This connector terminal block unit converts 40-pin ribbon cable signals into rugged screw terminals for field wiring. Engineers choose the TA50-0N when they need larger conductor capacity and a wider terminal pitch than compact blocks offer. Specifically, the unit accepts wires up to 2 mm² and solderless terminals up to ø8 mm. Its black housing fits standard 35-mm DIN rail, so installation stays quick and clean.

Technical Specifications

The TA50-0N carries a rated voltage of 5-24V DC and an operating range of 4.5-26.4V DC. Each point supports a maximum current of 0.5A DC. Moreover, the unit accepts conductor sizes up to 2 mm² maximum. Terminal block screws are M3.5 type, and the terminal arrangement pitch measures 10 mm. Additionally, the connector is the HIF3BA-40PA-2.54DSA (71) type, which complies with the MIL standard. Two M4 clamping screws secure the block, and the unit weighs 300 g.

Mechanical and Environmental Parameters

• Color: Black

• Weight: 300 g

• Terminal Pitch: 10 mm

• Mounting: 35-mm wide DIN rail or screw mounting

• Clamping Screw: M4 (2 points)

• Operating Temperature: 0 to 55°C

• Storage Temperature: -20 to 75°C

• Humidity: 10 to 90% RH (non-condensing)

• Atmosphere: Free of corrosive gases, flammable gases, and heavy dust

Compatibility Note

The connector terminal block cannot be used with the F3YP04, F3YP08, F3YP14, F3YP18, F3YP22, F3YP24, F3YP28, F3NC32, and F3NC34 modules. Therefore, confirm your module model before ordering. For instance, users of those nine modules should choose a different Yokogawa wiring accessory.

Installation Guide

First, select either 35-mm DIN rail or direct screw mounting for the TA50-0N. Next, secure the block with the two M4 clamping screws and confirm it sits firmly. Then, plug the 40-pin HIF3BA connector from the I/O module into the block header. After that, strip field wires and attach solderless terminals up to ø8 mm. Tighten each M3.5 screw to a snug fit, but avoid excess torque. Finally, check continuity point by point before applying power.

Packaging List

• Yokogawa TA50-0N Connector Terminal Block Unit × 1

• Anti-static protective bag

• Cardboard shipping box with foam padding

Shipping
We ship globally via Fedex, UPS, DHL. Orders are typically processed within 1-2 business days.

FAQ

Q1: Which modules are incompatible with the TA50-0N?
A1: The TA50-0N cannot be used with the F3YP04, F3YP08, F3YP14, F3YP18, F3YP22, F3YP24, F3YP28, F3NC32, or F3NC34. Verify your module model before purchase to avoid wiring mismatches.

Q2: What conductor size does this terminal block accept?
A2: The unit accepts conductors up to 2 mm² maximum. Additionally, it takes solderless terminals up to ø8 mm, which suits most panel wiring practices.

Q3: How does the TA50-0N differ from the TA40-0N?
A3: The TA50-0N uses larger M3.5 screws, a 10 mm terminal pitch, and 2 mm² conductor capacity. Meanwhile, the TA40-0N uses M2 screws and accepts only AWG23-28 wire.

Q4: What connector type does the unit use?
A4: The block uses the HIF3BA-40PA-2.54DSA (71) connector, which complies with the MIL standard. This 40-pin header mates with standard FA-M3 ribbon cables.

Q5: Can I mount the TA50-0N on a DIN rail?
A5: Yes. The unit mounts on 35-mm wide DIN rail or by direct screw fixing. Two M4 clamping screws hold the block securely in either arrangement.
