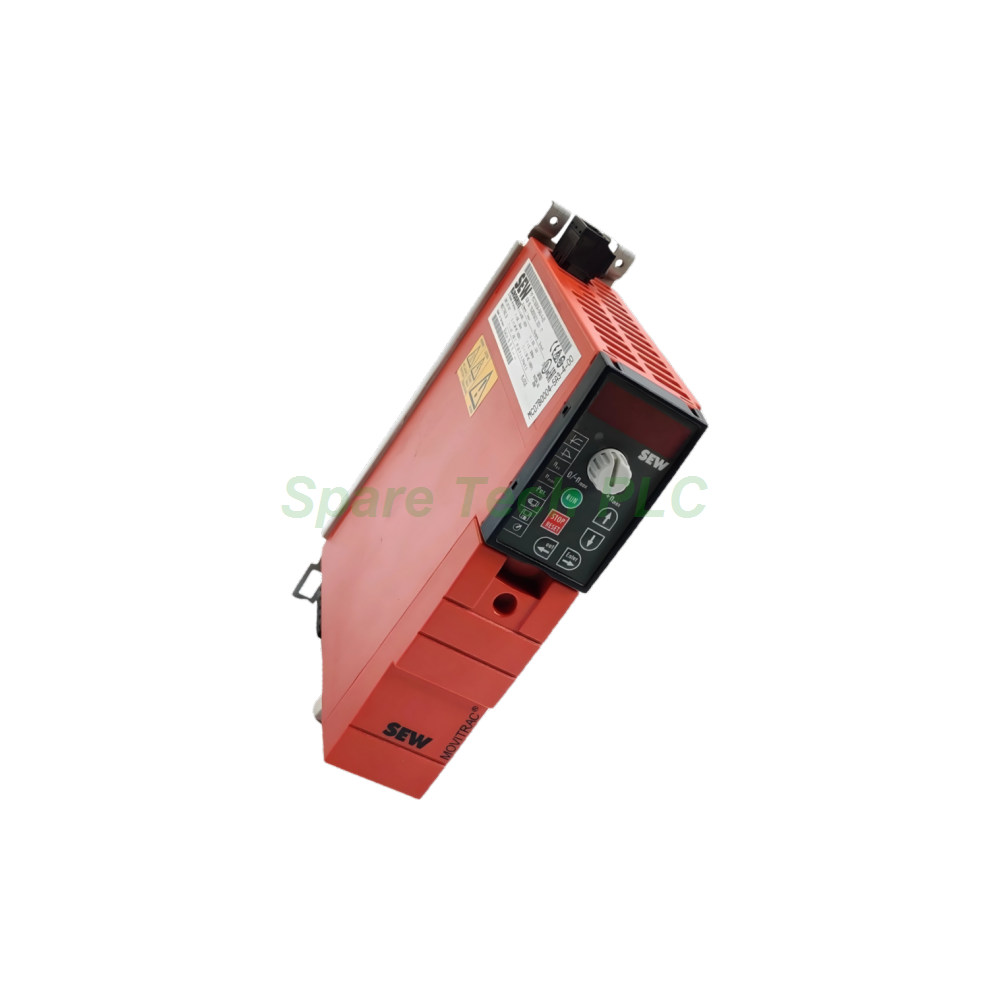

SEW MC07B0004-5A3-4-00 MOVITRAC B Frequency Inverter: Compact Drive Control
Product Introduction
The SEW MC07B0004-5A3-4-00 is a compact frequency inverter from the MOVITRAC B series. This drive delivers reliable motor control for industrial automation applications. Additionally, its straightforward operation saves valuable time during startup and commissioning.
Specifically, the MC07B0004-5A3-4-00 supports a 400 V, 3-phase power supply connection. It provides 0.37 kW (0.50 HP) motor power with a rated output current of AC 1.6 A. Furthermore, the unit comes in size 0XS with a lightweight design of 1.3 kg for easy installation.
Technical Specifications
The MOVITRAC B inverter type MC07B0004-5A3-4-00 delivers dependable performance across industrial drive tasks. First, the power supply connection accepts 380–500 VAC at 50/60 Hz. Next, the rated output current reaches AC 1.6 A for continuous operation.
Moreover, the drive handles overload conditions with 125% IN continuous duty. It also supports 150% IN for at least 60 seconds. Besides, the suppression category is C2, and the unit features 4Q operation with an integrated brake chopper.
| Parameter | Specification |
|---|---|
| Power Supply | 400 V, 3-phase (380–500 VAC) |
| Frequency | 50/60 Hz |
| Motor Power | 0.37 kW / 0.50 HP |
| Rated Output Current | AC 1.6 A |
| Size | 0XS |
| Weight | 1.3 kg / 2.9 lb |
| Overload (Continuous) | 125% IN |
| Overload (Short-Term) | 150% IN for 60 s |
| Suppression | C2 |
| Operation | 4Q with Brake Chopper |
| Safe Torque Off | Available from 5.5 kW as Standard |
Mechanical and Environmental Parameters
The MC07B0004-5A3-4-00 features a compact design for space-saving installation. Its small footprint allows mounting in tight cabinet spaces. Meanwhile, the lightweight 1.3 kg construction simplifies handling during commissioning.
In addition, the MOVITRAC B platform covers a broad voltage and power range. For instance, 3× AC 380–500 V units span 0.25 kW to 90 kW. Furthermore, 3× AC 230–240 V models cover 1.5 kW to 30 kW, while 1× AC 230–240 V versions range from 0.25 kW to 2.2 kW.
Installation Guide
Installing the MC07B0004-5A3-4-00 inverter requires proper wiring and configuration. First, mount the drive securely inside a ventilated control cabinet. Next, connect the 400 V 3-phase supply to the power terminals. Then, wire the motor to the output terminals according to the rated current.
After wiring, configure the drive parameters for your application. Additionally, the design enables integration of fieldbus interfaces and functional safety options. Moreover, input/output extensions can expand the drive capability as needed. Finally, verify all connections before applying power.
Packaging List
1 × SEW MC07B0004-5A3-4-00 MOVITRAC B Frequency Inverter
1 × Anti-Static Protective Bag
1 × Installation Quick Reference
FAQ
Q1: What is the motor power of the SEW MC07B0004-5A3-4-00?
A: The MC07B0004-5A3-4-00 delivers 0.37 kW or 0.50 HP motor power. It suits small to medium industrial drive applications.
Q2: What power supply does the MC07B0004-5A3-4-00 require?
A: This MOVITRAC B inverter uses a 400 V, 3-phase supply. The acceptable range spans 380–500 VAC at 50/60 Hz.
Q3: What overload capacity does the MC07B0004-5A3-4-00 offer?
A: The drive provides 125% IN continuous duty. Additionally, it handles 150% IN for at least 60 seconds during short-term overloads.
Q4: Can I add fieldbus interfaces to the MC07B0004-5A3-4-00?
A: Yes. The design enables integration of fieldbus interfaces, functional safety options, and input/output extensions. This flexibility adapts the drive to your application.
Q5: Does the MC07B0004-5A3-4-00 include a brake chopper?
A: Yes. The MC07B0004-5A3-4-00 features 4Q operation with an integrated brake chopper. It also carries C2 suppression classification.
