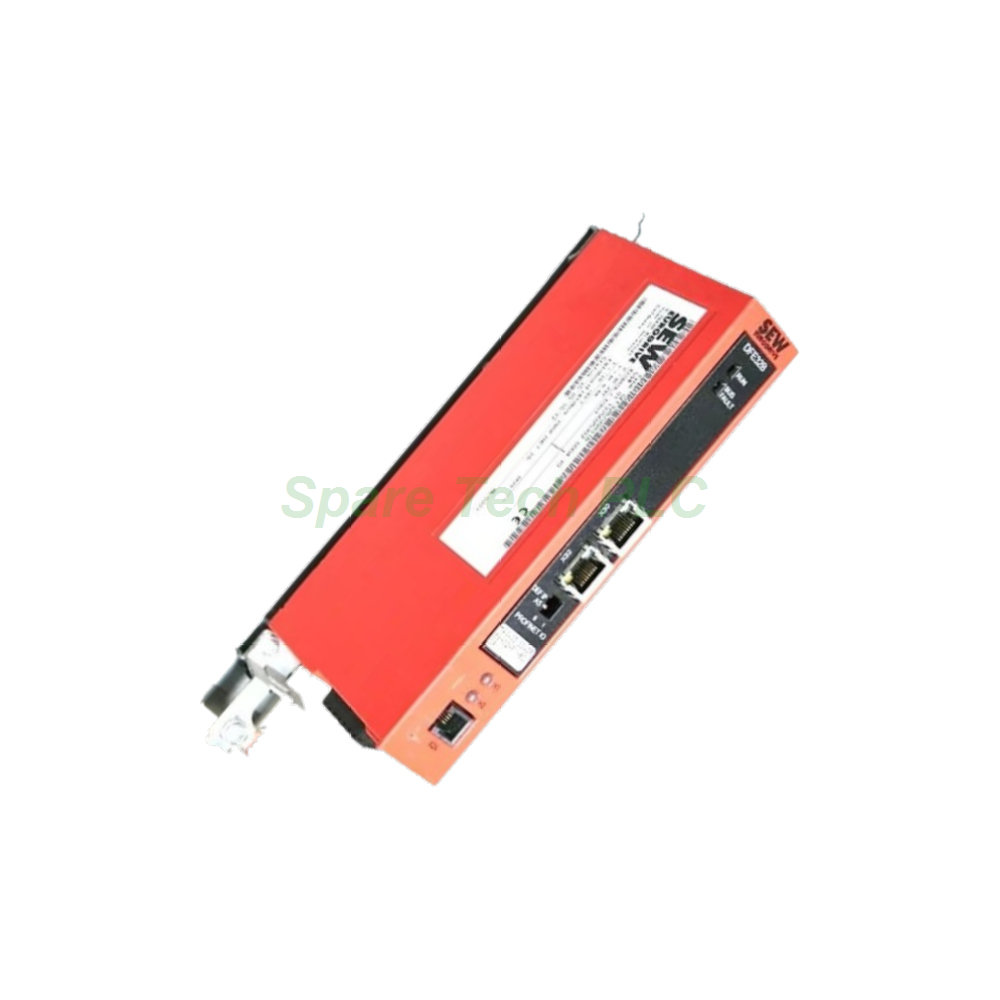

The SEW DFE32B is a PROFINET IO fieldbus interface designed for MOVIDRIVE MDX61B drive units. This gateway module enables seamless communication between a higher-level controller and the drive. Additionally, it supports real-time data exchange between connected devices on the network.
Specifically, the DFE32B acts as a gateway module for PROFINET fieldbus systems. It fits directly into the option slot of the MDX61B drive. Furthermore, the module supports project planning under the name MOVIDRIVE DFE32B. The manufacturer code is 10A hex, assigned to SEW-EURODRIVE.
The PROFINET interface type DFE32B delivers reliable industrial communication performance. First, it supports a C2 response timeout of 1 second. Next, both the C1 and C2 channels handle a maximum length of 240 bytes each. This capacity supports demanding automation tasks.
Moreover, the module operates on a DC 24 V supply with a tolerance of –15% to +20%. Its power consumption stays at approximately 3 W. Besides, the supported data set uses Index 47 for parameter access. The recommended slot number for configuration is 0, while the profile ID is set to 0.
| Parameter | Specification |
|---|---|
| Fieldbus Type | PROFINET IO |
| Voltage Supply | DC 24 V (–15%, +20%) |
| Power Consumption | 3 W |
| Module Name | MOVIDRIVE DFE32B |
| Supported Data Set | Index 47 |
| Recommended Slot Number | 0 |
| Manufacturer Code | 10A hex (SEW-EURODRIVE) |
| Profile ID | 0 |
| C2 Response Timeout | 1 s |
| Max. C1 Channel Length | 240 bytes |
| Max. C2 Channel Length | 240 bytes |
The DFE32B module features a compact form factor suited to the MDX61B option slot. Its dimensions measure 0.6 cm × 12.7 cm × 7.6 cm (0.3" × 5.0" × 3.0"). Meanwhile, the unit weighs approximately 0.44 kg, making it easy to handle during installation.
In addition, the gateway module operates within standard industrial conditions. It connects to the drive backplane without external wiring complexity. Therefore, cabinet space requirements remain minimal. The interface supports PROFINET IO networks commonly found in factory automation.
Installing the DFE32B PROFINET interface requires careful handling and correct configuration. First, disconnect power from the MOVIDRIVE MDX61B drive. Next, locate the designated option slot on the drive unit. Then, insert the gateway module firmly until it seats properly.
After installation, configure the module in your PROFINET engineering tool. Use the module name MOVIDRIVE DFE32B during project planning. Additionally, assign slot number 0 as recommended for most applications. The data set at Index 47 provides access to drive parameters.
Meanwhile, set the C2 response timeout to 1 second for stable communication. Verify that both C1 and C2 channels stay within the 240-byte limit. Furthermore, use shielded PROFINET cables to reduce electromagnetic interference. Finally, confirm the DC 24 V supply stays within the –15% to +20% tolerance range.
1 × SEW DFE32B PROFINET IO Fieldbus Interface
1 × Anti-Static Protective Bag
1 × Installation Quick Reference
Q1: What is the main purpose of the SEW DFE32B?
A: The DFE32B connects MOVIDRIVE MDX61B drives to PROFINET IO networks. It enables real-time data exchange between the controller and the drive for precise automation control.
Q2: Which drive series supports the DFE32B module?
A: The SEW DFE32B gateway module works with MOVIDRIVE MDX61B units. It installs into the drive option slot and communicates over PROFINET fieldbus.
Q3: What are the power requirements for the DFE32B?
A: The module uses a DC 24 V supply with –15% to +20% tolerance. Its power consumption is approximately 3 W during normal operation.
Q4: What channel lengths does the DFE32B support?
A: Both the C1 and C2 channels support a maximum length of 240 bytes. The C2 response timeout is set to 1 second for reliable communication.
Q5: What module name should I use during project planning?
A: Use MOVIDRIVE DFE32B as the module name in your engineering tool. The recommended slot number is 0, and the supported data set uses Index 47.
| Brand Name | |
| Model No. | DFE32B |
| Product Type | PROFINET IO Fieldbus Interface |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
The SEW DER11B is a resolver card option for MOVIDRIVE MDX61B drives. It provides motor encoder input and external encoder input, supports 2-pole resolvers, and operates on a 12 VDC supply with up to 100 m cable length.
The SEW DEH11B is a Hiperface encoder card option for MOVIDRIVE MDX61B drives. It provides one motor encoder input and one external encoder input/output at 12 VDC.

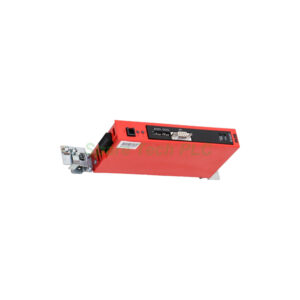

The SEW DFP21B is a PROFIBUS DP-V1 fieldbus interface for MOVITRAC B frequency inverters. It connects drives to higher-level automation systems with DC 24 V supply and automatic baud rate detection.

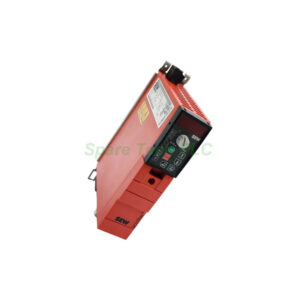

The SEW MC07B0004-5A3-4-00 is a compact MOVITRAC B frequency inverter with 400 V 3-phase supply and 0.37 kW motor power. It offers 1.6 A rated output and space-saving installation.
