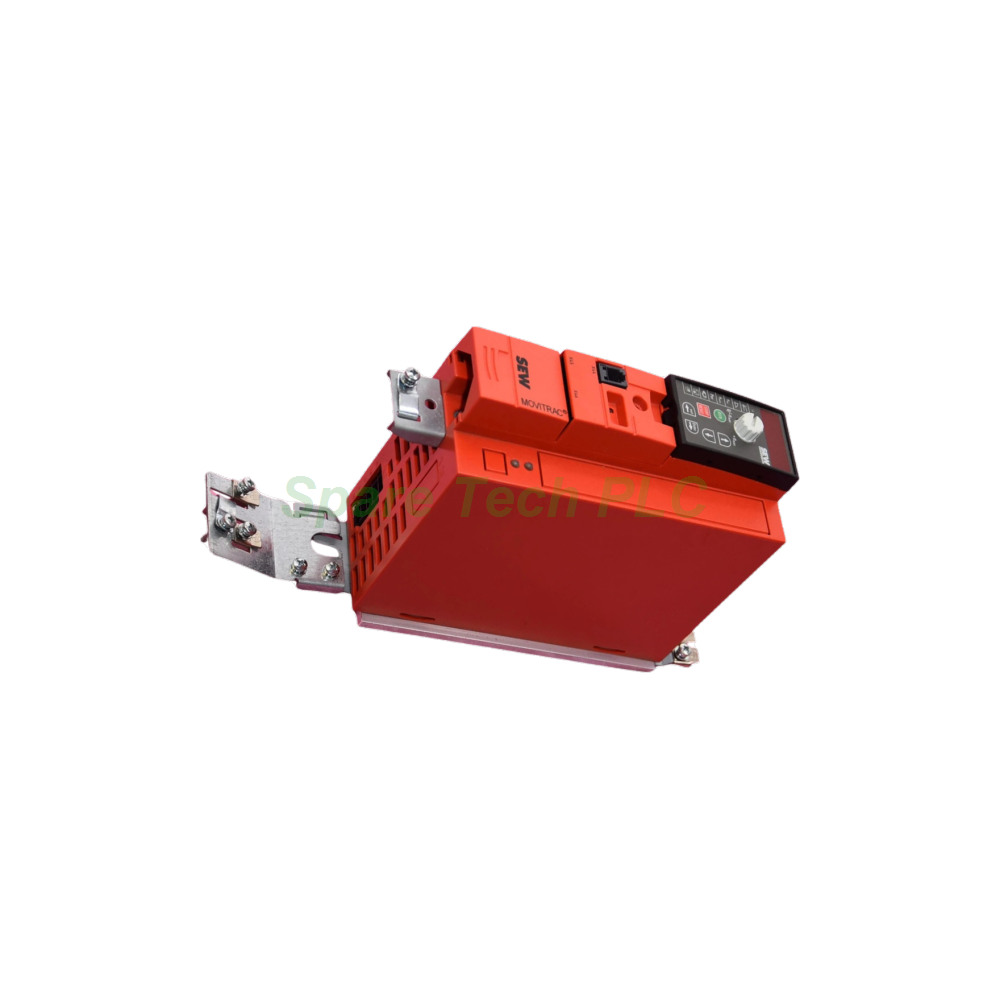

SEW MC07B0005-5A3-4-00 MOVITRAC B Inverter

SEW MC07B0005-5A3-4-00 MOVITRAC B Drive

Product Introduction

The SEW MC07B0005-5A3-4-00 represents a dependable solution for industrial motor speed regulation. This MOVITRAC B series frequency inverter handles 0.55 kW (0.75 HP) motor loads with consistent performance. Specifically, it accepts 380 to 500 VAC three-phase input at 50/60 Hz frequencies. Meanwhile, the output stage provides 2.0 A rated current to connected AC motors. Engineers select this drive for its proven V/F control method and integrated brake chopper functionality. As a result, the unit suits conveyor systems, pumps, and simple machinery applications where precise positioning is not required.

Technical Specifications

The MC07B0005-5A3-4-00 operates with specific electrical ratings designed for industrial environments. Its input current draws 1.8 A under nominal 400 VAC conditions. Additionally, the output frequency reaches a maximum of 599 Hz for high-speed applications. The drive handles 125% overload for 60 seconds, supporting demanding startup sequences. Furthermore, the integrated brake chopper manages regenerative energy during deceleration cycles. The apparent output power measures 1.4 kVA during standard operation. For 500 VAC supplies, line and output currents require a 20% reduction from nominal values. The SEW MC07B0005-5A3-4-00 uses V/F control exclusively, which limits its application to variable-speed tasks without closed-loop positioning.

Mechanical and Environmental Parameters

Physical dimensions and operating conditions define the installation envelope for this inverter. The MC07B0005-5A3-4-00 measures 80 mm wide by 185 mm high by 163.5 mm deep. Its mass totals 1.5 kg (3.3 lb), enabling straightforward mounting procedures. The unit features IP20 protection, suitable for cabinet installation away from moisture and dust ingress. Natural convection cooling manages heat dissipation without forced air requirements. This design reduces maintenance needs and noise generation. The operating temperature range aligns with standard industrial control cabinets. Therefore, adequate ventilation clearance around the device remains essential for reliable long-term operation.

Installation Guide

Proper installation ensures optimal performance and equipment longevity for the MC07B0005-5A3-4-00. First, verify the supply voltage matches the drive rating of 380 to 500 VAC three-phase. Next, mount the unit vertically inside a protective enclosure with sufficient airflow. Wiring procedures require 4 mm² (AWG12) terminal connections with 0.6 Nm tightening torque. The braking resistor connects to designated terminals when 4-quadrant operation is needed. Additionally, shielded motor cables minimize electromagnetic interference in sensitive environments. Finally, parameter configuration via the keypad or MOVITOOLS software completes the commissioning process. Always consult the SEW manual for specific wiring diagrams and safety precautions.

Packaging List

1 × SEW MC07B0005-5A3-4-00 Frequency Inverter
1 × Installation Instructions Leaflet

Shipping Methods

We ship worldwide via Fedex, UPS, and DHL. Delivery typically occurs within 3 to 7 business days depending on destination.

FAQ

Q1: What motor power does the MC07B0005-5A3-4-00 support?
A: This SEW inverter drives 0.55 kW (0.75 HP) motors under standard 100% operating conditions. The 125% overload capacity supports 0.75 kW (1.0 HP) motors during intermittent duty cycles.

Q2: Does the MC07B0005-5A3-4-00 include a brake chopper?
A: Yes, the "-4" designation in the part number indicates 4-quadrant operation with an integrated brake chopper. This feature manages regenerative energy during motor deceleration without external components.

Q3: What control method does this frequency inverter use?
A: The MC07B0005-5A3-4-00 employs V/F (voltage/frequency) control. This approach suits variable-speed applications for asynchronous motors but does not support servo positioning or closed-loop feedback.

Q4: What are the supply voltage requirements?
A: The drive accepts 380 to 500 VAC three-phase input at 50 or 60 Hz. For 500 VAC supplies, reduce line and output currents by 20% from nominal ratings.

Q5: Is this model still in production by SEW?
A: The MOVITRAC B series MC07B0005-5A3-4-00 represents a discontinued legacy model. However, units remain available through industrial automation distributors and aftermarket suppliers.
