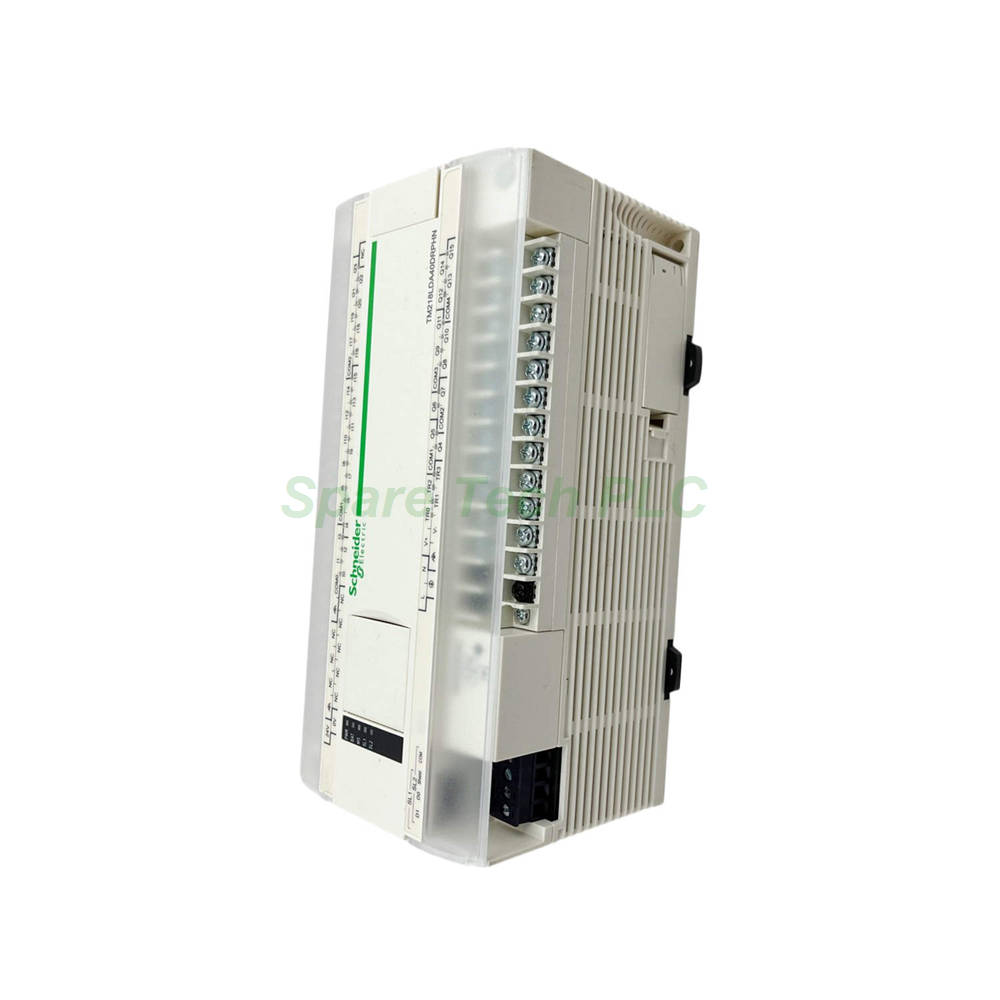

The TM218LDA40DRPHN belongs to the Modicon M218 series of logic controllers from Schneider Electric. It is a compact base CPU that delivers reliable performance for various industrial control applications. This controller operates on a 100 to 240 V AC power supply, making it versatile for global use. It combines discrete and analog I/O capabilities within a single, space-saving unit. Moreover, its robust design ensures stable operation even in demanding environments. You can rely on this PLC to manage your machinery and processes effectively.
The TM218LDA40DRPHN offers a total of 40 discrete input/output points. Specifically, it provides 24 discrete inputs that operate at 24 V DC. For outputs, this model features a mix of 12 relay outputs and 4 transistor outputs. Consequently, it can control both AC and DC loads. This flexible I/O arrangement reduces the need for additional expansion modules in many standard applications.
Besides discrete I/O, this controller supports essential analog functions. It includes analog inputs that accept current signals, ranging from 0 to 20 mA and 4 to 20 mA. Furthermore, the TM218LDA40DRPHN provides analog output capabilities. These outputs can generate voltage signals from -10 to 10 V or 0 to 10 V, and current signals from 0 to 20 mA or 4 to 20 mA. This feature is critical for applications requiring precise control over actuators and sensors.
The rated supply voltage for the TM218LDA40DRPHN is between 100 and 240 V AC. It has a power consumption of 34 W. The input current from the power supply is typically 300 mA at 24 V DC. The controller’s discrete inputs feature an impedance of 4700 Ohms for standard inputs and 2800 Ohms for high-speed inputs. Additionally, its fast response time of just 2 ms for both turn-on and turn-off ensures prompt reaction to process changes.
The transistor outputs on the TM218LDA40DRPHN have a voltage limit of 19.2 to 28.8 V DC. The relay outputs have the same voltage range. To ensure signal integrity, the maximum voltage drop is less than 1.5 V. The controller also allows a maximum cable distance of under 5 meters when using shielded cables, which helps maintain communication reliability. This makes the TM218LDA40DRPHN a dependable choice for control panels.
For connectivity, the logic controller is equipped with built-in communication ports (details in full manual). Its high-speed inputs, with their lower impedance, are specifically designed to handle fast pulse signals from encoders or sensors. Consequently, the TM218LDA40DRPHN is well-suited for motion control and counting tasks. All these features are integrated into the compact base unit.
The TM218LDA40DRPHN is built to withstand challenging industrial environments. It has an IP20 degree of protection, suitable for installation in control cabinets. For operation, it can endure vibration resistance of 3.5 mm at 5 to 150 Hz, and a shock resistance of 15 gn for 11 ms. Additionally, the operating ambient temperature ranges from 0 to 55 °C, while storage temperature can be from -25 to 70 °C. It operates reliably at a relative humidity up to 95% without condensation. The controller is also certified with CE and can be used at altitudes up to 2000 meters during operation.
Installing the TM218LDA40DRPHN is straightforward. First, mount it securely inside a control panel on a standard DIN rail. Ensure adequate space for ventilation around the unit. Next, connect the 100 to 240 V AC power supply to the designated terminals. After that, wire the discrete and analog I/O according to your application’s wiring diagram. Use shielded cables for any connections longer than 5 meters to prevent interference. Finally, configure the controller using the appropriate Schneider Electric programming software. Always follow local safety regulations during the setup process.
1 x Modicon M218 TM218LDA40DRPHN logic controller unit
1 x Product installation guide (quick start manual)
1 x Terminal block connector kit
1 x Mounting clip for DIN rail
