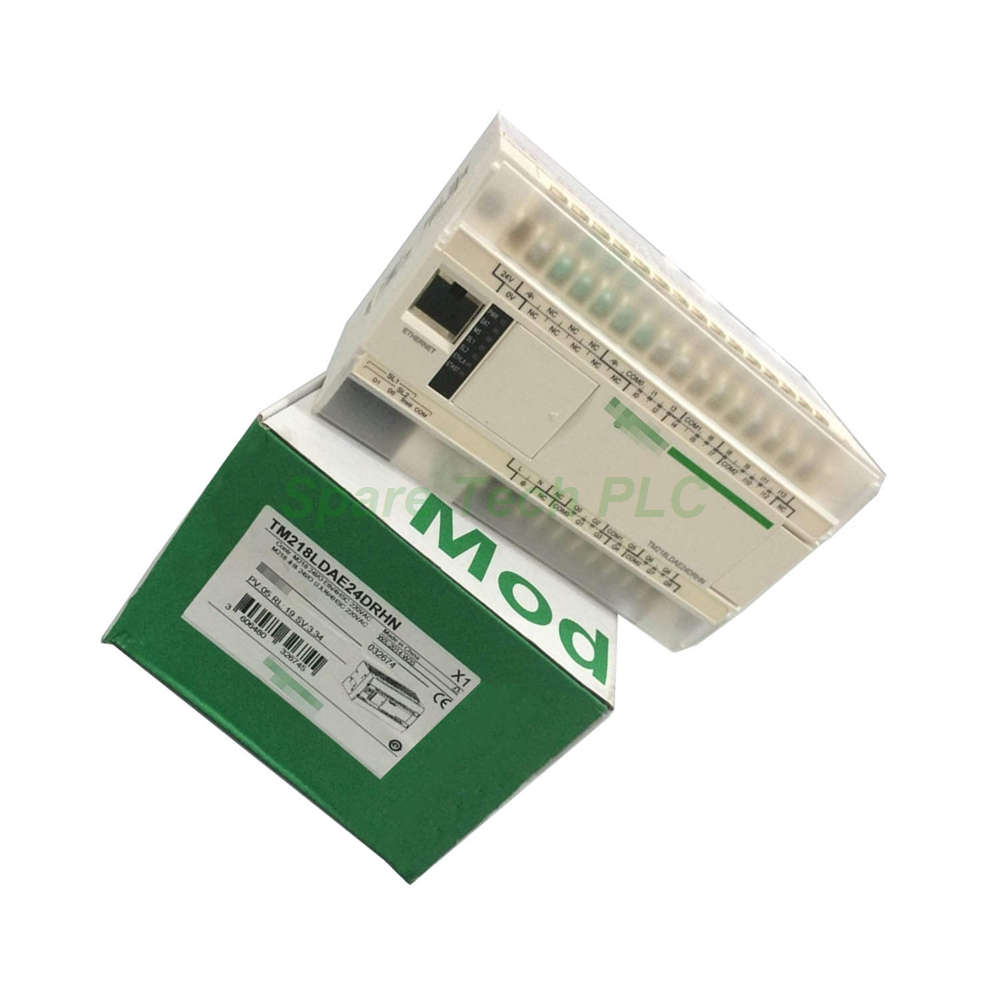

The TM218LDAE24DRHN is a member of Schneider Electric's Modicon M218 series of logic controllers. This compact base unit is designed for small to medium-sized automation tasks where space and cost are key considerations. It provides a balanced mix of 14 discrete inputs and 10 relay outputs. Additionally, this controller supports up to 4 expansion modules. Therefore, you can easily scale your system up to 152 total I/O points as your application grows. Its robust AC power supply and durable construction make it suitable for diverse industrial environments.
The TM218LDAE24DRHN offers a total of 24 discrete I/O points on the base unit. Specifically, it includes 14 voltage inputs that operate at 24 V DC. Among these, you get 10 regular inputs and 4 fast inputs specifically designed for high-speed counting (HSC) applications. For outputs, this model provides 10 relay outputs. Consequently, these relay outputs can directly control various AC and DC loads. This flexible I/O mix reduces the need for additional modules in many standard control scenarios.
This logic controller operates on a rated supply voltage of 100 to 240 V AC. Its supply voltage limits range from 85 to 264 V AC, accommodating common power fluctuations. The TM218LDAE24DRHN consumes 34 W of power at rated voltage. It also features a continuous output power of 25 W for powering connected devices. The input current draw is 250 mA at 22 to 27 V DC. Moreover, the isolation between the AC power supply and internal logic is rated at 1780 Vac and 2500 Vdc, ensuring safe operation.
Each discrete input on the TM218LDAE24DRHN has a specific impedance. Standard inputs present 4700 Ohms, while the high-speed inputs feature 2800 Ohms. This lower impedance allows faster signal response. The response time for both turn-on and turn-off is just 2 ms. For the relay outputs, the voltage limits are 19.2 to 28.8 V DC. The maximum voltage drop across the outputs is less than 1.5 V. Additionally, when using shielded cables, the maximum recommended distance between devices is under 5 meters.
One of the key strengths of the TM218LDAE24DRHN is its expandability. This controller supports up to 4 expansion modules. With these modules, you can achieve a maximum of 152 I/O points. Furthermore, the maximum number of relay outputs can be expanded to 42. This scalability makes the TM218LDAE24DRHN an excellent choice for growing systems. You can start with the base unit and add modules as your requirements evolve.
The 4 fast inputs on the TM218LDAE24DRHN are designed for high-speed counting applications. These inputs can handle rapid pulse signals from encoders or sensors. Consequently, this logic controller is suitable for motion control, positioning, and measurement tasks. The fast response time ensures accurate data capture even at high frequencies. This feature sets the TM218LDAE24DRHN apart from many other compact PLCs in its class.
The TM218LDAE24DRHN is engineered for reliability in industrial settings. It has an IP20 protection rating, making it suitable for installation in control cabinets. For mechanical durability, it withstands vibration of 3.5 mm at 5 to 150 Hz. It also handles shock resistance of 15 gn for 11 ms. The operating ambient temperature ranges from 0 to 55 °C. Meanwhile, the storage temperature ranges from -25 to 70 °C. It functions reliably at a relative humidity of up to 95% without condensation. Finally, this controller is CE certified and operates at altitudes up to 2000 meters.
Installing the TM218LDAE24DRHN is a straightforward process. First, mount the unit securely on a DIN rail inside a control cabinet. Ensure adequate space for ventilation and cable routing. Next, connect the AC power supply to the designated terminals, observing the 85 to 264 V AC range. After that, wire your discrete inputs and relay outputs according to the application's schematic. For the high-speed inputs, use shielded cables to maintain signal integrity. Finally, program and configure the controller using Schneider Electric's software tools. Always adhere to local electrical safety standards during installation.
1 x Modicon M218 TM218LDAE24DRHN logic controller unit
1 x Product quick start guide
1 x Terminal block kit for I/O connections
1 x DIN rail mounting clip
All orders are dispatched using premium global couriers. Your TM218LDAE24DRHN will be shipped via FedEx, UPS, or DHL. This ensures reliable, trackable delivery to your destination.
How many expansion modules does this controller support?
The TM218LDAE24DRHN supports up to 4 expansion modules, allowing you to add more I/O points as needed.
What is the maximum total I/O count achievable with this PLC?
With expansion modules, this logic controller can reach a maximum of 152 total I/O points.
Does this model include analog inputs or outputs?
No, the TM218LDAE24DRHN does not have built-in analog I/O. However, you can add analog capability via expansion modules.
What is the purpose of the 4 fast inputs on this device?
These 4 fast inputs are designed for high-speed counting (HSC) applications, such as pulse counting and positioning tasks.
What is the power interruption tolerance for this controller?
The TM218LDAE24DRHN can tolerate power interruptions of up to 10 ms at 100 Vac without interruption.
