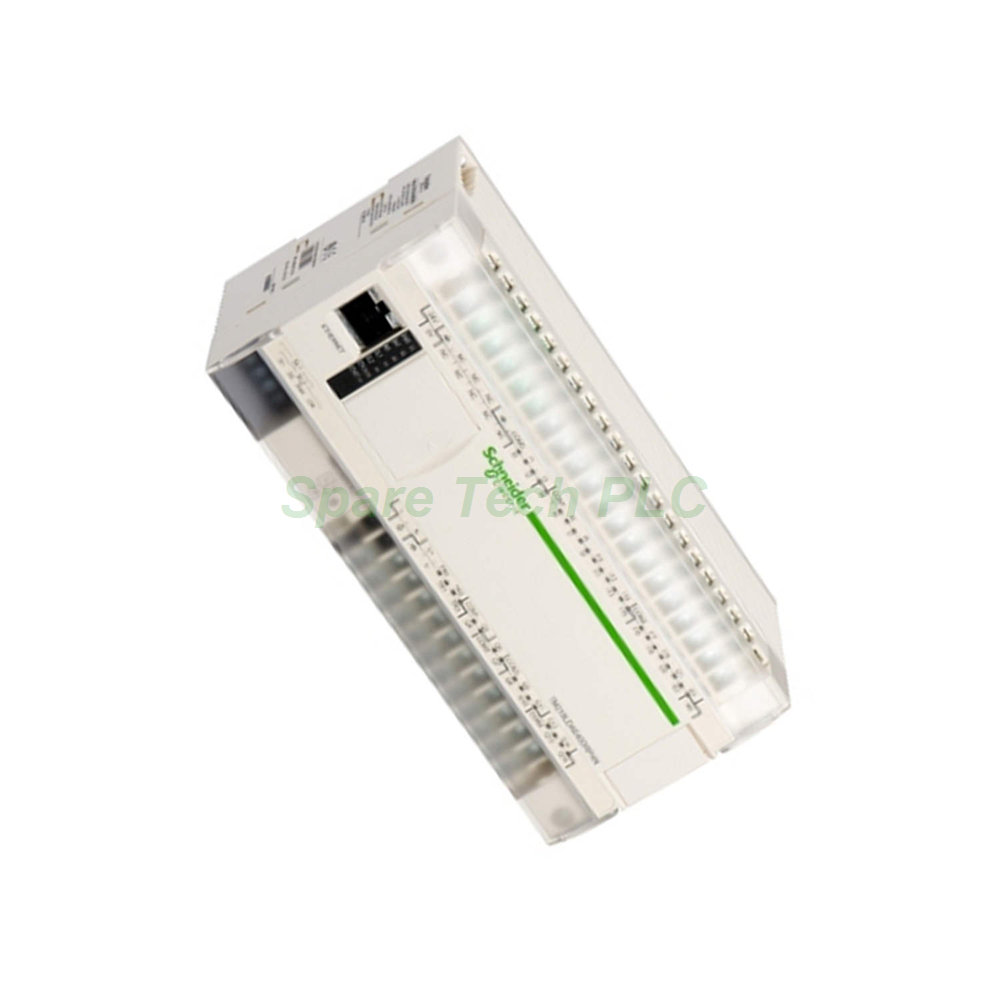

Schneider TM218LDA40DR4PHN M218 Controller 40 I/O

Schneider Electric TM218LDA40DR4PHN Modicon M218 Logic Controller with Analog Inputs

This versatile controller combines discrete and analog functionality in one compact base unit. The TM218LDA40DR4PHN belongs to the Modicon M218 series, offering 40 discrete I/O points plus 2 analog input channels. This integration eliminates the need for separate analog modules, saving panel space and reducing costs.

Technical Specifications - Analog Input Characteristics

The analog input section supports up to 2 single-ended channels for flexible signal acquisition. You can configure each channel for voltage or current input types. For voltage measurement, the range covers -10 to +10 Vdc or 0 to +10 Vdc. For current signals, it accepts 0 to 20 mA or 4 to 20 mA standards. The input impedance varies by type, with voltage inputs presenting greater than 1 MΩ and current inputs showing 250 ± 5% Ω. The TM218LDA40DR4PHN uses pluggable screw terminals for easy wiring connections.

Sampling and Accuracy Performance

The sampling duration reaches 10 milliseconds per channel plus one scan time. The total input system transfer time equals 20 milliseconds plus one scan time. In terms of accuracy, the maximum deviation without electromagnetic interference at 25°C is ±1% of full scale. Under typical conditions, the maximum deviation stays within ±2.5% of full scale. The digital resolution is 12 bits including the sign bit, providing fine measurement granularity. Temperature drift remains at ±0.06% of full scale, ensuring stable readings across varying temperatures.

Additional Analog Specifications

The common mode rejection ratio reaches 80 dB, effectively suppressing unwanted noise. Crosstalk between channels is rated at 60 dB for reliable multi-channel operation. Nonlinearity stays within ±0.4% of full scale for accurate signal conversion. The LSB (least significant bit) input value is 5 mV for voltage and 10 µA for current inputs. Furthermore, the maximum allowable load without damage is ±30 Vdc for less than 5 minutes on voltage inputs. For continuous voltage input, the safe limit is ±15 Vdc without damage. Current inputs withstand ±30 mA dc without permanent damage.

Isolation and Protection

The TM218LDA40DR4PHN provides optical coupler isolation between inputs and internal circuitry. This isolation protects the controller from ground loops and voltage spikes. It also enhances measurement accuracy by breaking unwanted electrical paths. The isolation ensures reliable operation in industrial environments with significant electrical noise.

Cable Requirements and Limitations

For optimal performance, you must use shielded cables for all analog connections. The recommended cable length is 3 meters (9.84 feet) to meet electromagnetic compatibility standards. Under any circumstances, the maximum cable length should not exceed 10 meters (32.80 feet). Exceeding this limit may degrade signal quality and affect measurement accuracy. Therefore, we recommend placing sensors and transmitters close to the controller.

Mechanical and Environmental Parameters

This controller operates within a temperature range from 0°C to 55°C. The relative humidity should stay between 10% and 90% without condensation. It complies with IEC standards for vibration and shock resistance. For storage, the acceptable temperature range extends from -25°C to 70°C. The compact base unit supports DIN rail mounting inside standard control cabinets.

Installation and Wiring Guide

First, mount the TM218LDA40DR4PHN onto a 35 mm DIN rail securely. Ensure proper grounding to minimize electrical interference. Next, connect the analog input wiring using shielded cables as specified. Keep the cable length under 3 meters for optimal electromagnetic compatibility. For voltage inputs, connect the signal wire and ground reference correctly. For current inputs, ensure the loop power supply is within the specified range. Additionally, route analog cables away from high-voltage power lines to avoid noise pickup. Finally, verify all connections before powering up the system.

Application Use Cases

This controller excels in applications requiring both discrete logic and analog measurement. For instance, you can monitor tank levels, temperature sensors, or pressure transmitters. The TM218LDA40DR4PHN also suits simple process control loops with analog feedback. Furthermore, it works well in packaging machines with analog sensor inputs. Its built-in analog capability simplifies system design for OEM applications.

Packaging List

• Modicon M218 Logic Controller TM218LDA40DR4PHN (1 unit)

• Removable screw terminal blocks (discrete I/O)

• Removable analog input terminal block

• DIN rail mounting clip (pre-installed)

• Quick start guide and installation sheet

Frequently Asked Questions (FAQ)

1. Can I mix voltage and current inputs on the two analog channels?
   Yes, you can independently configure each channel for voltage or current input. This flexibility allows connection of different sensor types on the same controller.

2. What is the effective resolution of the analog inputs?
   The TM218LDA40DR4PHN provides 12-bit resolution including the sign bit. This translates to approximately 0.025% of full scale for precise measurements.

3. Why is the cable length limited to 3 meters for analog inputs?
   The 3-meter limit ensures compliance with electromagnetic compatibility standards. Longer cables may pick up interference and degrade measurement accuracy.

4. What happens if I apply excessive voltage to the analog input?
   The inputs withstand ±30 Vdc for short periods without permanent damage. However, prolonged overvoltage may cause failure, so we recommend proper signal conditioning.

5. What software is needed to configure the analog inputs?
   You need EcoStruxure Machine Expert - Basic software for configuration and programming. This software allows you to set input types and scaling parameters easily.
