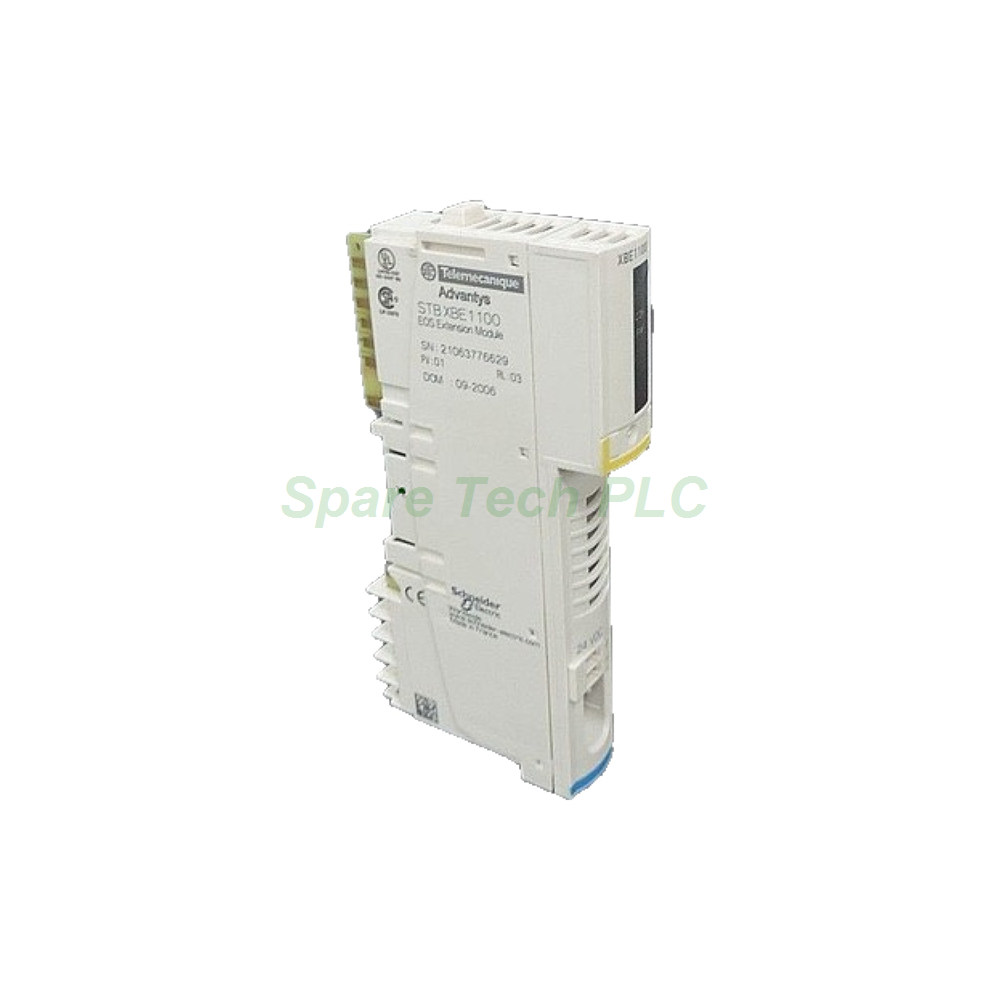

Schneider STBXBE1100 EOS Bus Extension Module

Schneider STBXBE1100 EOS Bus Extension Module

Product Introduction

The STBXBE1100 belongs to the Advantys STB distributed I/O platform by Schneider Electric. This EOS module marks the end of a bus extension segment within an STB island. Engineers select it when a single island cannot hold all required I/O modules. Meanwhile, the module pairs with the STBXBE1200 BOS module to close each segment properly. Its compact design keeps cabinet layout flexible and organized.

Technical Specifications

The STBXBE1100 functions as an End of Segment module for Advantys STB bus extension. It terminates an extension segment that carries the STB bus to additional I/O modules. Furthermore, the module works together with the STBXBE1200 BOS module to complete the segmented expansion. This pairing lets you split a large I/O island into manageable sections.

Communication and Expansion Role

Communication travels through the Advantys STB bus extension. Specifically, the EOS module terminates bus signals at the end of the segment. Therefore, you can distribute I/O modules across multiple DIN rail sections. Besides, this arrangement simplifies wiring and improves serviceability in large panels.

Electrical Data

The module draws 24V DC power through the logic bus. Therefore, no separate field supply is required for basic operation. Additionally, the logic bus provides both power and communication over the same connection.

Mechanical and Environmental Parameters

The module carries an IP20 protection rating, which suits clean cabinet installations. Operating and storage temperature data are not available in the current documentation. Besides, the compact housing keeps panel space usage low. Field wiring connects through the standard STB base, and the module mounts alongside other island components.

Installation Guide

First, mount the base onto a standard DIN rail at the end of the segment. Next, snap the STBXBE1100 module onto the base until it locks firmly. Then connect the bus extension cable from the last I/O module to the EOS module. After that, verify the STBXBE1200 BOS module sits at the start of the same segment. Finally, check all bus connections before applying power to the island.

Packaging List

• 1x Schneider STBXBE1100 EOS Bus Extension Module

• 1x Product Documentation Sheet

Shipping Methods

We ship worldwide via Fedex, UPS, and DHL. Orders process within 1-2 business days after payment confirmation. Tracking numbers arrive by email once the carrier picks up your parcel.

FAQ

Q1: What does the STBXBE1100 do?
A: It terminates a bus extension segment for expanding an Advantys STB I/O island.

Q2: Which module pairs with the STBXBE1100?
A: It pairs with the STBXBE1200 BOS module to complete each segment.

Q3: How does the module receive power?
A: It draws 24V DC power through the logic bus, so no separate supply is needed.

Q4: Can I use this module alone for island expansion?
A: No, you need both the EOS and BOS modules to form a complete extension segment.

Q5: What is the protection rating of this module?
A: It carries an IP20 rating, which suits clean cabinet installations.
