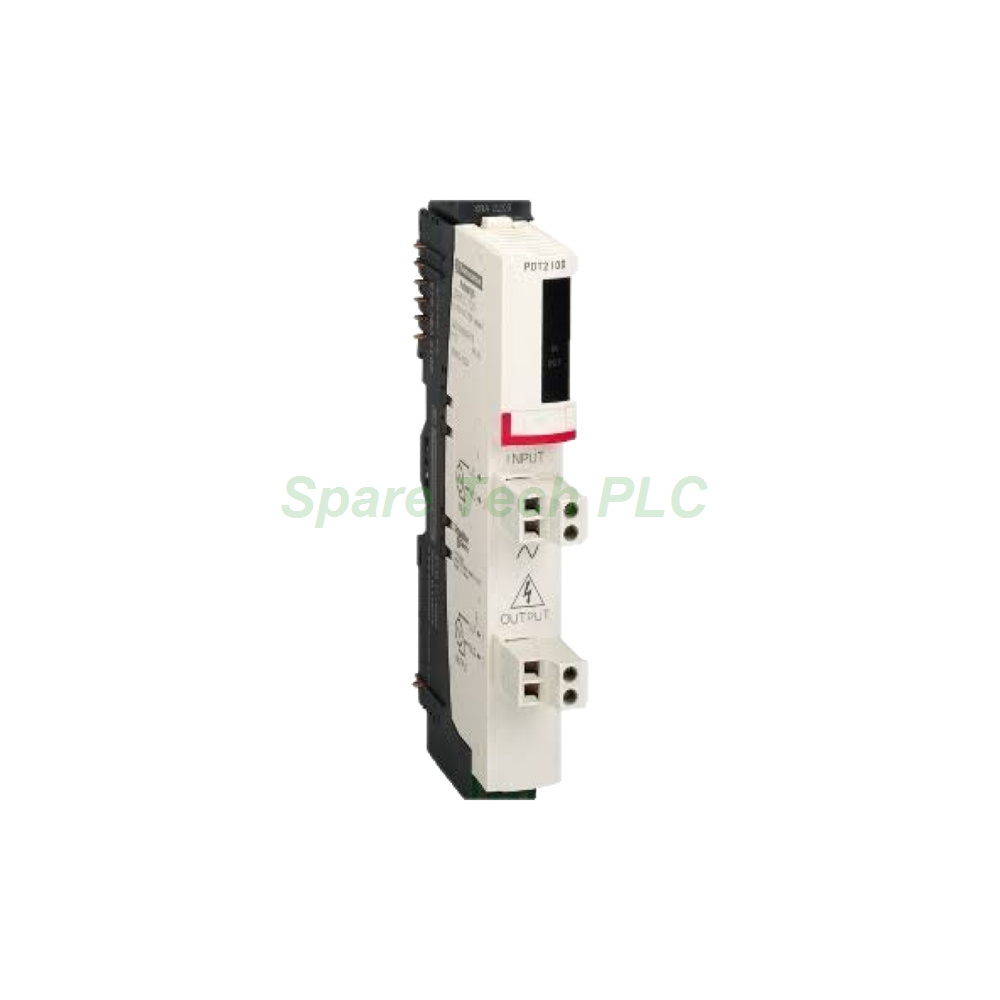

Schneider STBPDT2100 Power Distribution Module
Product Introduction
The STBPDT2100 belongs to the Advantys STB distributed I/O platform by Schneider Electric. This power distribution module delivers 115/230V AC field power to sensors and actuators across the I/O island. Engineers select it for AC-powered process control and factory automation systems. Meanwhile, the module provides separate fusing for inputs and outputs, which protects connected devices from overcurrent events. Its compact 18.4 mm mounting base saves valuable cabinet space.
Technical Specifications
The STBPDT2100 accepts a supply voltage range of 85-265V AC. Maximum current for inputs reaches 5 A at 30 °C and 2.5 A at 60 °C. Furthermore, maximum current for outputs reaches 10 A at 30 °C and 5 A at 60 °C. The sensor and actuator bus voltage matches the 85-265V AC supply range. This wide input range suits both 115V and 230V AC mains without rewiring.
Protection Features
Reverse polarity protection is built into the module. Additionally, overcurrent protection uses a 5 A time-delayed fuse for inputs and a 10 A time-delayed fuse for outputs. Therefore, the module withstands brief fault currents without damage to connected I/O equipment.
Mounting and Installation Notes
The module mounts onto the STBXBA2200 base, which measures 18.4 mm wide. Specifically, this base differs from the 13.9 mm base used by analog I/O modules. Therefore, reserve adequate DIN rail space when planning the I/O island layout.
Mechanical and Environmental Parameters
The module carries an IP20 protection rating, which suits clean cabinet installations. Operating and storage temperature data are not available in the current documentation. Besides, the 18.4 mm base width keeps panel space usage low. Field wiring connects through the STBXBA2200 base, and the PDM feeds power to the I/O island separately.
Installation Guide
First, mount the STBXBA2200 base onto a standard DIN rail. Next, snap the STBPDT2100 module onto the base until it locks firmly. Then connect the 115/230V AC supply to the input terminals while observing polarity. After that, wire the sensor and actuator bus outputs to the I/O island. Finally, verify all connections before applying power. Always follow local electrical codes during AC wiring.
Packaging List
1x Schneider STBPDT2100 Power Distribution Module
1x STBXBA2200 Mounting Base (18.4 mm)
1x Product Documentation Sheet
Shipping Methods
We ship worldwide via Fedex, UPS, and DHL. Orders process within 1-2 business days after payment confirmation. Tracking numbers arrive by email once the carrier picks up your parcel.
FAQ
Q1: What is the supply voltage range for the STBPDT2100?
A: It accepts 85-265V AC, covering both 115V and 230V AC mains.
Q2: What is the maximum output current?
A: It provides 10 A at 30 °C and 5 A at 60 °C for outputs.
Q3: Does this module offer reverse polarity protection?
A: Yes, reverse polarity protection is built into the module.
Q4: What protection features does this PDM include?
A: It offers time-delayed fuses, with 5 A for inputs and 10 A for outputs.
Q5: Which mounting base pairs with this module?
A: Use the STBXBA2200 base, which measures 18.4 mm wide, for proper installation.
