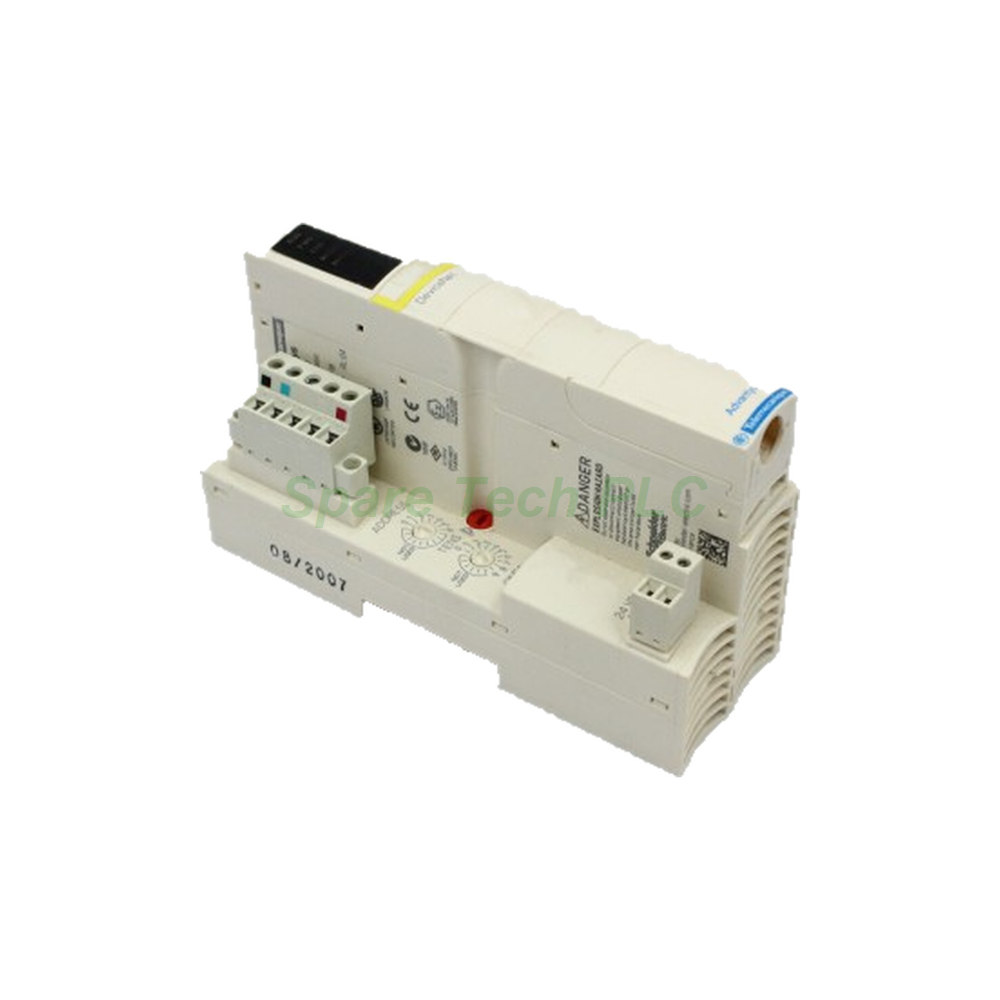

Schneider STBNDN1010 DeviceNet Network Interface Module
Product Introduction
The STBNDN1010 from Schneider Electric belongs to the Advantys STB series. This basic network interface module (NIM) connects distributed I/O islands to a DeviceNet fieldbus network. Engineers use it in factory automation, conveyor systems, and machine control. As a result, the module cuts wiring cost and simplifies network expansion.
Technical Specifications
The STBNDN1010 supports the DeviceNet protocol through a built-in 5-pin connector. Standard DeviceNet cables and taps fit this port directly. The module runs on a 24V DC supply voltage. Moreover, one island can host up to 32 addressable I/O modules. Therefore, the NIM manages many digital and analog points on a single node.
This basic version omits two features found on higher models. Specifically, it does not support hot-swap operation. In addition, it has no RS232 debug port. These limits suit simple, cost-sensitive applications.
Key parameters at a glance:
Mechanical and Environmental Parameters
The module measures 128.3 x 70 x 40 mm (H x W x D) and weighs only 0.145 kg. This compact size saves valuable panel space. Meanwhile, the IP20 rating means the unit suits clean, dry control cabinets. The operating and storage temperature ranges are not available in current data. However, typical Advantys STB modules work in standard industrial environments. Please confirm thermal limits with Schneider Electric before harsh deployments.
Installation Guide
First, mount the STBNDN1010 on a standard DIN rail inside the control cabinet. Next, connect the 24V DC power supply to the module terminals. Then, plug the DeviceNet cable into the 5-pin connector. After that, set the node address and baud rate through the rotary switches. Finally, attach the I/O modules to the right side of the NIM. The island expands module by module up to 32 units. Additionally, keep the DeviceNet trunk within the allowed bus length for your chosen baud rate. Proper grounding and termination reduce communication errors. Because this NIM lacks hot-swap support, always power down the island before replacing modules.
Lifecycle Note
Schneider Electric lists the STBNDN1010 as discontinued. The Modicon X80 range now replaces this Advantys STB product. Therefore, buyers should check stock carefully before ordering. We still supply new surplus and refurbished units for legacy systems.
Packaging List
Shipping method: Fedex, UPS, DHL.
FAQ
Q1: What protocol does the STBNDN1010 use?
A: It uses DeviceNet, and the built-in 5-pin connector accepts standard DeviceNet cables.
Q2: How many I/O modules can one island support?
A: One Advantys STB island supports up to 32 addressable I/O modules.
Q3: Does this module support hot-swap?
A: No, this basic NIM does not support hot-swap operation, so power down before changes.
Q4: Is the STBNDN1010 still in production?
A: No, Schneider Electric discontinued it. The Modicon X80 range replaces this NIM.
Q5: How do you ship this module?
A: We ship by Fedex, UPS, DHL with tracking and careful packing.
