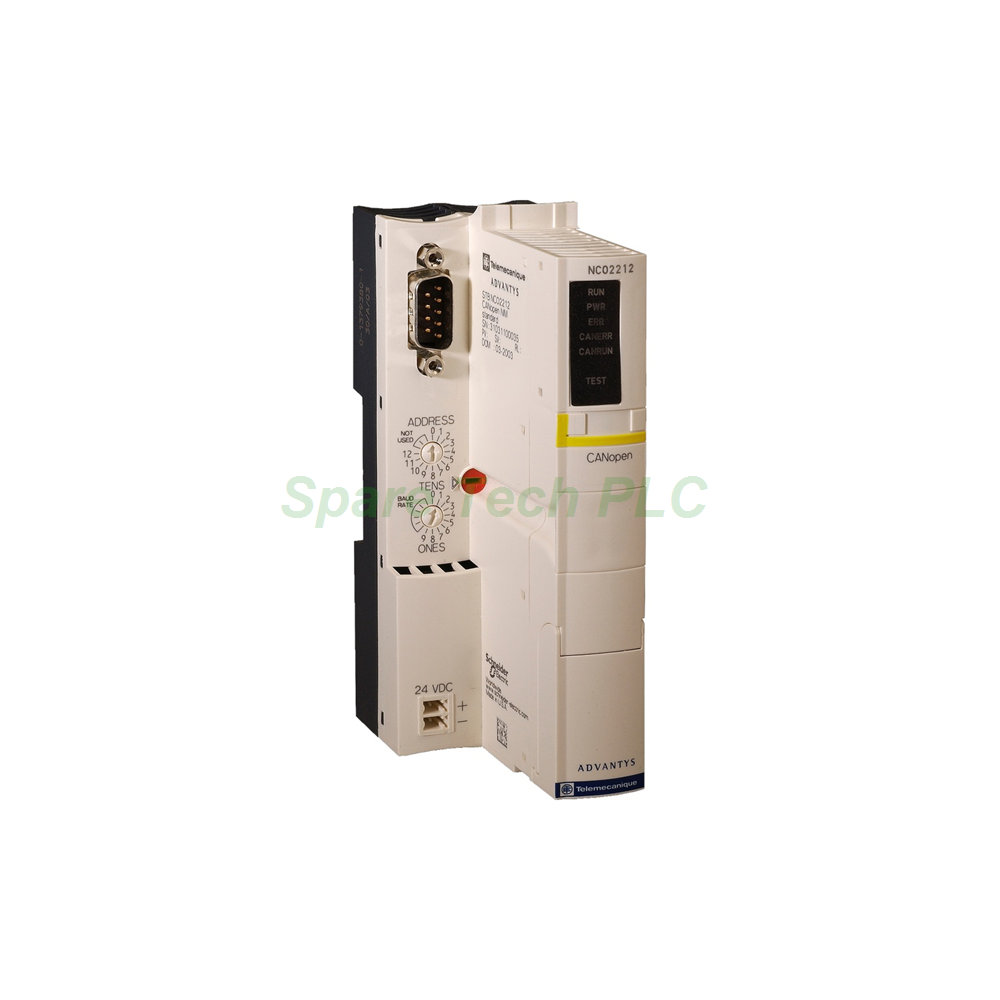

Schneider STBNCO1010 Advantys STB Network Interface Module

Product Introduction

The STBNCO1010 provides the network connection for Schneider Electric Advantys STB distributed I/O islands. Specifically, this basic network interface module links field I/O to a CANopen network. It presents the whole island as a single CANopen slave node, which keeps master configuration simple.

This basic design targets cost-sensitive installations. For instance, it suits machines that already run on CANopen and need compact remote I/O. Furthermore, the module occupies minimal cabinet space and mounts quickly on a DIN rail.

Communication and Protocol Support

The STBNCO1010 module focuses on one proven fieldbus standard. It features a single 9-pin SUB-D connector, specifically a DB-9S female port. Additionally, it communicates using the CANopen protocol at standard fieldbus rates.

This network interface module supports up to 32 I/O modules within one island. Therefore, it handles a wide range of digital and analog I/O combinations. Besides standard process data exchange, the NIM reports island diagnostics to the master. Meanwhile, correct termination and cable routing remain essential for stable CANopen communication.

Electrical Specifications and Power

Power requirements for the STBNCO1010 are straightforward. It operates on a 24V DC supply voltage. Moreover, the module distributes logic power to the I/O modules across the island backplane.

Installers should confirm the total island current draw before commissioning. In addition, a stable 24V DC supply and proper grounding improve long-term reliability. However, detailed current and logic bus output figures are not published for this basic NIM.

Mechanical and Environmental Parameters

The STBNCO1010 uses a compact housing for dense control cabinets. Its dimensions measure 128.3 mm in height, 70 mm in width, and 40 mm in depth. The module weighs approximately 0.145 kg. It mounts easily on a standard 35 mm DIN rail.

Environmental specifications support general industrial use. The protection rating is IP20, which suits clean and controlled environments. Operating and storage temperature data are not published for this module. Therefore, keep the installation within the cabinet conditions recommended for the Advantys STB island.

Installation Guide

Installing the STBNCO1010 follows a clear sequence. First, mount the module onto a 35 mm DIN rail inside the Advantys STB island assembly. Next, connect the 24V DC power supply to the correct terminals. Then, attach the CANopen cable to the DB-9S port.

Network setup requires a few important steps. Specifically, set the CANopen node address and baud rate using the module switches. After that, configure the I/O modules within the island. Finally, verify the status indicators and run a communication test with the master.

Packaging List

1x Schneider STBNCO1010 Network Interface Module
1x Product Documentation Sheet

FAQ

Q1: What is the main role of the STBNCO1010?
The STBNCO1010 connects an Advantys STB I/O island to a CANopen network. It represents the island as one CANopen slave node.

Q2: Which protocol does this NIM support?
This module supports the CANopen protocol. It provides a single 9-pin SUB-D (DB-9S) port for the fieldbus connection.

Q3: How many I/O modules can this island support?
The STBNCO1010 can address up to 32 I/O modules per island. This covers a broad mix of digital and analog modules.

Q4: What power supply does the module need?
It requires a 24V DC supply. The module then distributes logic power to the I/O modules on the island backplane.

Q5: Is the STBNCO1010 still in production?
This module is discontinued and superseded by the Modicon X80 range. However, it remains available through industrial automation suppliers for maintenance and legacy support.
