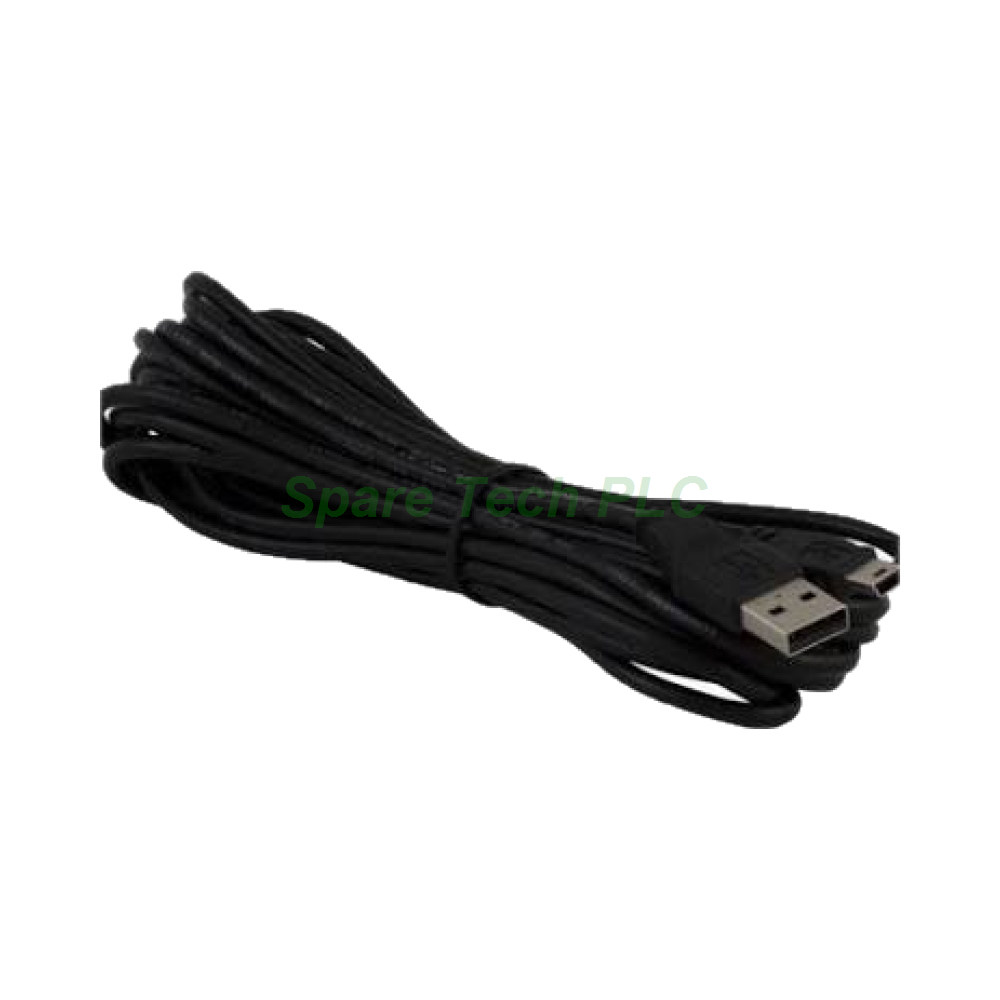

Schneider Electric BMXXCAUSBH045 USB Programming Cable
Product Introduction
The BMXXCAUSBH045 is a long-reach programming cable for the Modicon X80 platform. Schneider Electric designs this cable to link a standard PC to the Mini-B USB port on an M340 or M580 CPU. As a result, engineers can download programs and run diagnostics without standing right beside the cabinet. The cable carries USB 2.0 signals at full speed for stable data transfer. Therefore, it suits commissioning and maintenance work in large panels. Moreover, the 4.5 m length reaches across a room or a wide cabinet layout.
Technical Specifications
The cable length is 4.5 m, which covers most field service setups. One end offers a USB Type-A plug for the PC side. The other end carries a Mini-B USB plug for the CPU port. Meanwhile, the cable supports USB 2.0 full-speed data transfer.
Specifically, the BMXXCAUSBH045 works with M340 and M580 processors. It also fits any X80 CPU that offers a Mini-B USB programming port. In addition, the shielded construction lowers electromagnetic noise on the data lines. The molded connector bodies provide solid strain relief. Furthermore, the cable jacket resists abrasion during frequent plugging.
Mechanical and Environmental Parameters
The cable diameter is about 5 mm, which balances flexibility and durability. Its minimum bend radius is roughly 25 mm for safe handling. The outer jacket uses flexible PVC material. Operating temperature ranges from 0 °C to 50 °C. Storage temperature spans -20 °C to 60 °C. Besides, the cable meets standard USB 2.0 electrical requirements. The connector contacts use gold plating for stable signals. Moreover, the assembly weighs about 0.24 kg, so it stays easy to carry.
Installation Guide
First, install the Schneider programming software on your PC. Next, connect the Type-A plug to a free USB port. Then plug the Mini-B end into the CPU programming port. After that, wait for the system to detect the new device. Finally, open the software and select the correct COM port.
Additionally, install the USB driver before the first connection. This step avoids detection errors on some Windows versions. Furthermore, keep the cable away from strong noise sources. For instance, do not run it beside motor drive cables. Therefore, use the full 4.5 m length to keep your laptop clear of live panels. Meanwhile, unplug the cable gently to protect the Mini-B connector.
Packaging List
1 x Schneider BMXXCAUSBH045 USB programming cable, 4.5 m
1 x Anti-static protective bag
1 x Carton box with foam padding
FAQ
Q1: Which controllers support the BMXXCAUSBH045 cable?
A: It works with Modicon M340 and M580 controllers on the X80 platform. Any X80 CPU with a Mini-B USB port supports it.
Q2: How is this cable different from the 1.8 m version?
A: It offers the same function with a longer 4.5 m reach. The shorter BMXXCAUSBH018 suits bench work, while this model fits larger panels.
Q3: Does this cable need a special driver?
A: Yes. Install the Schneider USB driver with your programming software. Most packages include the driver on the installation disc.
Q4: Can I use this cable for firmware updates?
A: Yes. It supports firmware downloads and program transfers. Use the official Schneider tool for safe updates.
Q5: How fast can you ship this part?
A: We ship by Fedex, UPS, and DHL. Most orders leave the warehouse within 1–2 business days after payment.
