Schneider BMXDDO3202K X80 Output Module 32Ch

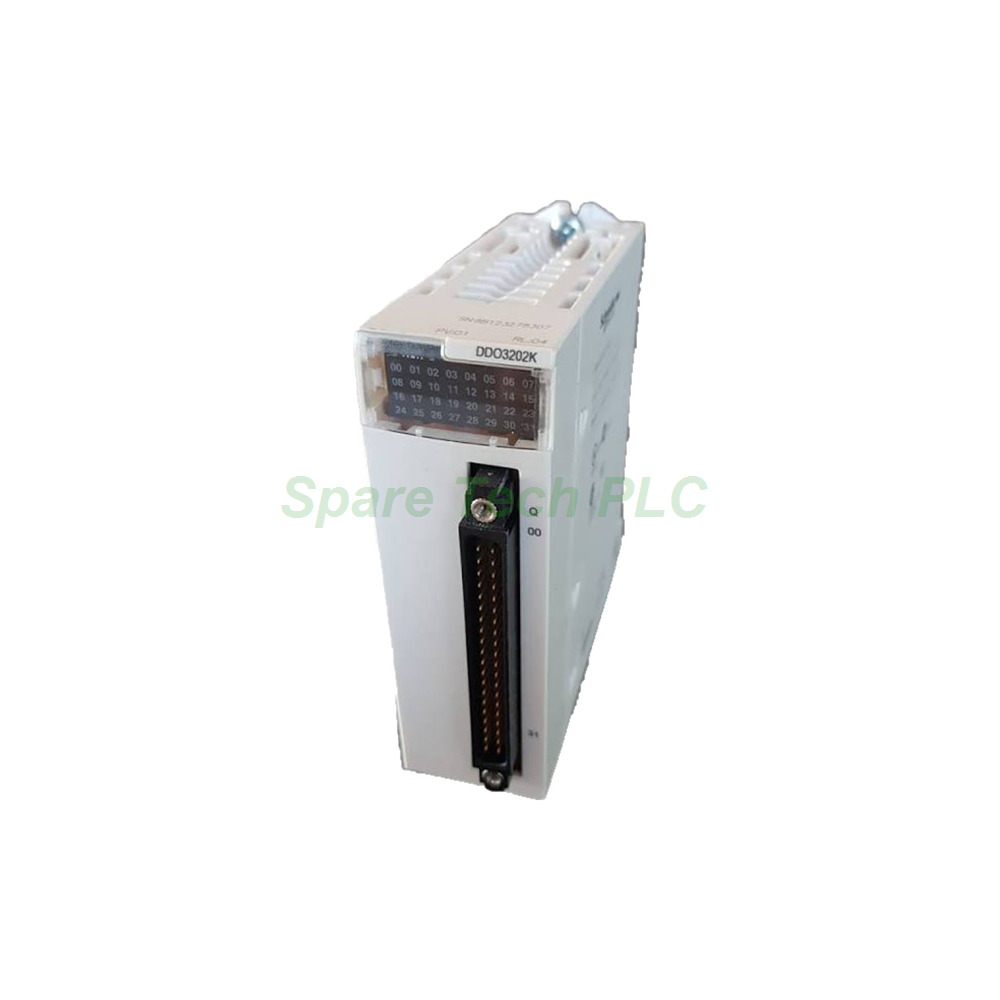

Schneider BMXDDO3202K Modicon X80 Discrete Output Module

Product Introduction

The BMXDDO3202K is a high density discrete output module from the Schneider Electric Modicon X80 series. This unit packs 32 transistor output channels into a single slot, which saves valuable rack space. Specifically, it switches 12/24 V DC loads with a fast response time of 0.3 ms. Moreover, the module serves both M340 and M580 controllers because both platforms share the X80 I/O family.

Furthermore, group-to-group isolation separates blocks of channels. As a result, electrical faults stay contained within one group. Additionally, the module status LED gives a quick health check during commissioning and maintenance.

Technical Specifications

The module offers 32 transistor output channels. Each channel delivers up to 0.55 A, while the whole module handles a maximum of 17.6 A. Because the signals are discrete, resolution and accuracy values do not apply.

The response time reaches 0.3 ms, which suits high-speed switching tasks. Meanwhile, up to 3 channels can run in parallel when higher current is needed. This flexibility helps engineers drive larger loads without extra relays. Besides, the MTBF reaches 833,000 hours, which reflects strong long-term reliability.

Isolation uses a group-to-group design rather than output-to-logic isolation. This approach balances protection with higher channel density. Meanwhile, a single module status LED reports overall health.

Connection uses a 40-pin terminal block designed for high density wiring. This interface keeps cable management tidy in crowded cabinets. Furthermore, the terminal design supports quick module replacement.

Electrical Parameters

The BMXDDO3202K receives 12/24 V DC from the field for load switching. Meanwhile, the internal bus draws power at 24 V DC with a current of 130 mA. Its power consumption is 3.1 W. These values help engineers plan panel power budgets accurately. Therefore, verify the rack supply before adding several high density cards.

Environmental and Mechanical Data

Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity stays between 5% and 95% without condensation. The protection rating is IP20, so the module belongs inside a clean control cabinet.

Physically, the unit measures 100 × 28 × 93 mm (H×W×D) and weighs 0.142 kg. Despite 32 channels, the front width stays at 28 mm. Consequently, this module delivers twice the channel count of a standard 16-channel card in the same footprint.

Installation Guide

First, mount the module onto a compatible X80 rack and tighten the retaining screws. Next, wire the 40-pin terminal block according to your field device scheme. Then, confirm the 12/24 V DC field supply polarity before powering the rack.

After power-up, check the module status LED for normal operation. Finally, configure the module inside EcoStruxure Machine Expert or Unity Pro. Always follow Schneider's grounding rules to preserve isolation performance.

Packaging List

• 1 × Schneider BMXDDO3202K Modicon X80 Discrete Output Module

• 1 × 40-pin terminal block

• 1 × Protective factory carton

Shipping methods: Fedex, UPS, DHL.

FAQ

1. Which controllers work with the BMXDDO3202K?
It works with Modicon M340 and M580 controllers. Both platforms share the Modicon X80 I/O family.

2. How many channels does this module provide?
It provides 32 transistor output channels. This density suits applications with many actuators in limited rack space.

3. What is the response time of the BMXDDO3202K?
The response time reaches 0.3 ms. This speed suits high-speed switching and fast interlock tasks.

4. Can I parallel channels for higher current?
Yes. Up to 3 channels can run in parallel. This helps drive loads that exceed a single channel rating.

5. What shipping options are available?
We ship worldwide through Fedex, UPS, and DHL. Confirm stock and lead time before ordering.
