Schneider BMXDAI1602 X80 AC Input Module

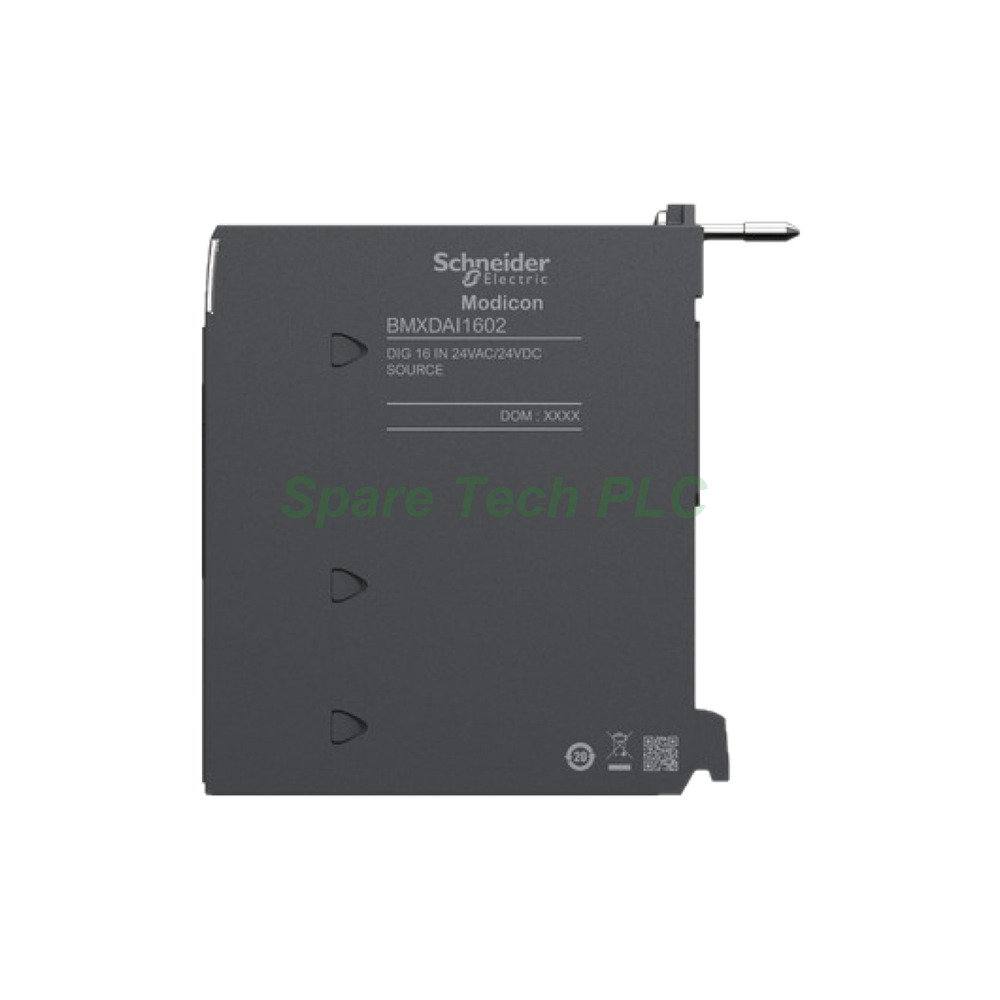

Schneider BMXDAI1602 Modicon X80 Discrete AC Input Module

Product Introduction

The BMXDAI1602 is a discrete AC input module from the Schneider Electric Modicon X80 series. This unit provides 16 input channels that accept 100-120 V AC signals directly. Specifically, it suits North American power environments and low-voltage AC control circuits. Moreover, the module serves both M340 and M580 controllers because both platforms share the X80 I/O family.

Furthermore, group-to-group isolation separates blocks of channels. As a result, electrical faults stay contained within one group instead of the whole card. Additionally, the module status LED gives a quick health check during commissioning and maintenance.

Technical Specifications

The module offers 16 discrete AC input channels. The nominal range covers 100-120 V AC. Because the signals are discrete, resolution and accuracy values do not apply.

Isolation uses a group-to-group design rather than channel-to-channel isolation. This approach balances protection with a compact 16-channel layout. Meanwhile, a single module status LED reports overall health.

Connection uses a 20-pin terminal block. This standard interface allows quick wiring and easy replacement. Furthermore, the terminal design reduces installation time on site.

Electrical Parameters

The BMXDAI1602 receives 100-120 V AC from the field for signal input. Meanwhile, the internal bus draws power at 24 V DC with a current of 100 mA. Its power consumption is 2.4 W. These modest values help keep cabinet power budgets under control. Therefore, engineers can populate racks with multiple modules without oversized supplies.

Environmental and Mechanical Data

Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity stays between 5% and 95% without condensation. The protection rating is IP20, so the module belongs inside a clean control cabinet.

Physically, the unit measures 100 × 28 × 93 mm (H×W×D) and weighs 0.15 kg. Its slim 28 mm width saves valuable DIN rail space. Besides, the compact housing matches all other Modicon X80 modules for a uniform panel look.

Installation Guide

First, mount the module onto a compatible X80 rack and tighten the retaining screws. Next, wire the 20-pin terminal block according to your AC field device scheme. Then, separate AC input wiring from low-level signal cables to reduce noise coupling.

After power-up, check the module status LED for normal operation. Finally, configure the module inside EcoStruxure Machine Expert or Unity Pro. Always follow Schneider's grounding rules to preserve isolation performance.

Packaging List

• 1 × Schneider BMXDAI1602 Modicon X80 Discrete AC Input Module

• 1 × 20-pin terminal block

• 1 × Protective factory carton

Shipping methods: Fedex, UPS, DHL.

FAQ

1. Which controllers work with the BMXDAI1602?
It works with Modicon M340 and M580 controllers. Both platforms share the Modicon X80 I/O family.

2. What AC voltage range does this module accept?
The nominal range is 100-120 V AC. This suits North American low-voltage control circuits.

3. How many channels does this module provide?
It provides 16 discrete AC input channels. The 20-pin terminal block handles all field wiring.

4. What isolation does the BMXDAI1602 provide?
The module uses group-to-group isolation. This design contains faults within one group instead of the whole card.

5. What shipping options are available?
We ship worldwide through Fedex, UPS, and DHL. Confirm stock and lead time before ordering.
