Schneider BMENOS0300 M580 Switch Module

Schneider BMENOS0300 Modicon X80 Switch Module

Product Introduction

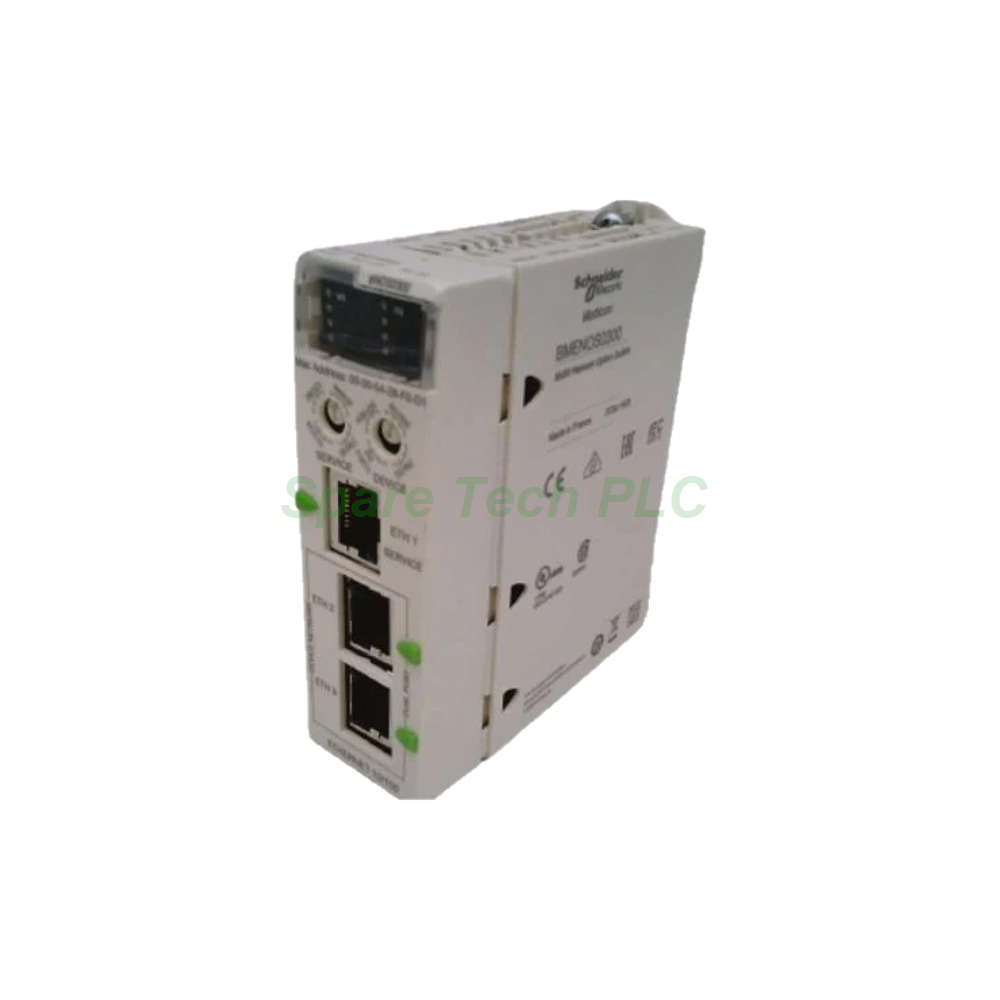

The BMENOS0300 acts as a dedicated Ethernet/IP switch module for the Schneider Electric Modicon X80 platform. Specifically, it expands network connectivity within X80 backplane systems. This module installs directly into a BMEXBP backplane and requires no external power supply. As a result, it simplifies wiring and reduces cabinet space requirements. Furthermore, the BMENOS0300 supports both device network and service port functions. It suits distributed control architectures where local switching is needed. Typical applications include remote I/O cabinets, machine-level networks, and process skids.

Technical Specifications

Port Configuration and Compatibility

Three integrated ports provide Ethernet/IP connectivity. Two ports serve the device network, while one port functions as a service port. The module draws power from the 24 V backplane supply. It fits any BMEXBP backplane and occupies a standard module format slot. Power consumption reaches 3.3 W at 135 mA under 25°C conditions. At 60°C, consumption rises to 4.5 W at 185 mA. This thermal behavior reflects the module's ambient compensation design.

Communication Protocol

The module operates exclusively on the EtherNet/IP protocol. It handles device-level communication for distributed I/O and field devices. The service port enables local configuration and diagnostics. Network traffic passes through the embedded switching logic without additional configuration. Since the module works at the link layer, it requires no IP address assignment for basic switching functions.

Electrical and Signalling

Four LEDs provide clear status indication. A green RUN LED confirms module activity. A red ERR LED signals module faults. The Mod Status LED uses green or red to show overall module health. Meanwhile, the Net Status LED indicates network communication status through green or red states. These indicators allow quick visual diagnostics during commissioning and maintenance.

Mechanical and Environmental Parameters

The module carries an IP20 protection rating for cabinet installation. Ambient air temperature for operation spans 0°C to +60°C. Storage temperature ranges from -40°C to +85°C. Relative humidity tolerates up to 95% without condensation. Operating altitude supports up to 2000 m, while transport altitude reaches 3000 m. The overvoltage category is II. The product holds CE marking and complies with the 2014/35/EU low voltage directive. It also meets the 2014/30/EU electromagnetic compatibility directive.

Installation Guide

Step 1: Prepare the Backplane

First, disconnect all power sources before beginning installation. Verify that the BMEXBP backplane has an available slot. Remove the protective cover from the target connector.

Step 2: Insert the Module

Next, align the BMENOS0300 with the guide rails on the selected slot. Push the module firmly into the backplane connector until it seats completely.

Step 3: Secure the Module

Once seated, tighten the retaining screw at the top of the module. Confirm that the module sits flush against the rack.

Step 4: Connect and Verify

Finally, connect Ethernet cables to the device network and service ports. Apply power and observe the LED indicators. The RUN LED should illuminate green, and the Net Status LED should show network activity.

Packaging List

• 1 × Schneider BMENOS0300 Modicon X80 Switch Module

• 1 × Protective connector cover

• 1 × Quick start documentation (installation instructions)

Shipping via FedEx, UPS, or DHL.

FAQ

Q: What is the main function of the BMENOS0300?

A: The BMENOS0300 provides Ethernet/IP switching within a Modicon X80 rack. Specifically, it adds three ports for device network and service access. This eliminates the need for external switches in many cabinet designs.

Q: Does the module require an external power supply?

A: No, the BMENOS0300 draws power directly from the 24 V backplane. Power consumption is 3.3 W at 25°C and 4.5 W at 60°C.

Q: Which backplanes support this switch module?

A: The module fits any BMEXBP backplane. It uses the standard module format and occupies one slot.

Q: What protocol does the BMENOS0300 use?

A: The module operates on EtherNet/IP only. It handles device network traffic and service port functions without supporting other protocols.

Q: How many status LEDs does the module include?

A: Four LEDs indicate status. These include RUN, ERR, Mod Status, and Net Status indicators. Green and red states provide clear diagnostic feedback.
