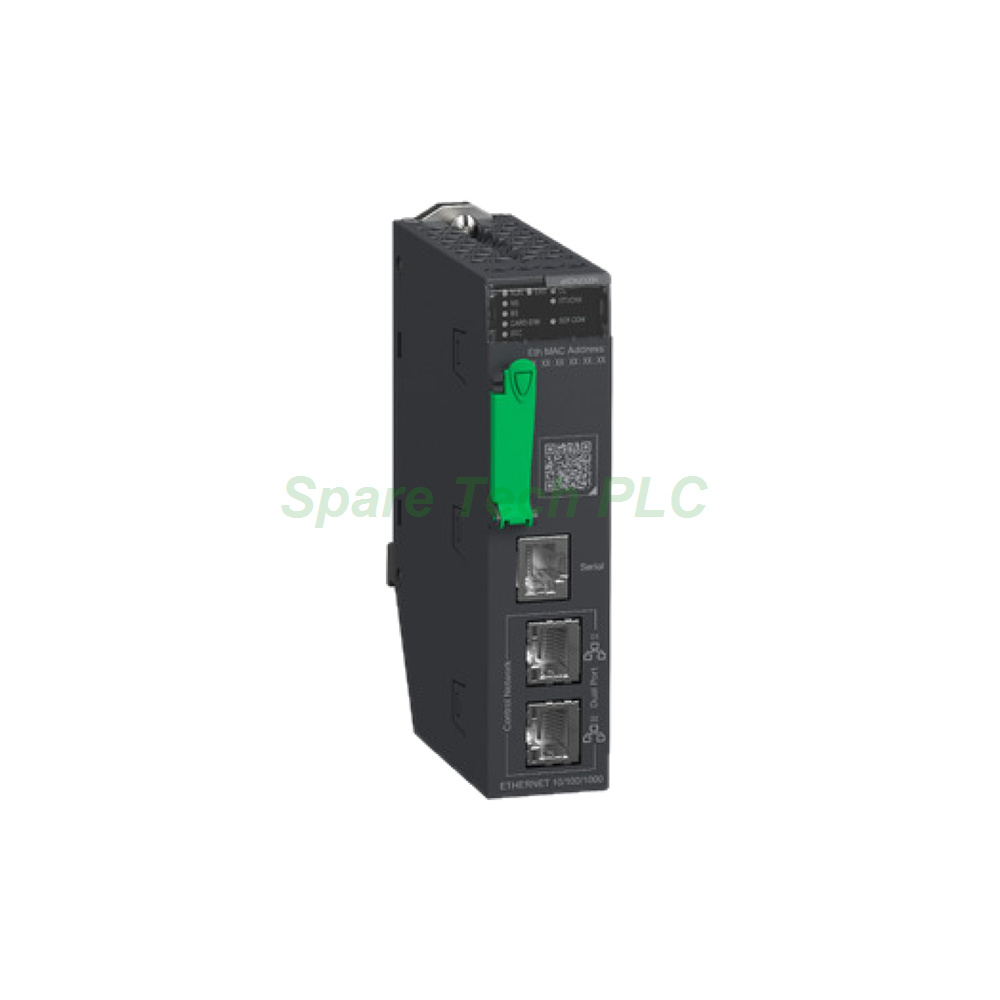

Schneider BMENOR2200 M580 RIO Head Module

Schneider BMENOR2200 Modicon M580 RIO Head Module

Product Introduction

The BMENOR2200 operates as a Remote I/O head module within the Schneider Electric Modicon M580 ecosystem. Specifically, it manages remote I/O drops across an Ethernet network. This module installs in an X80 Ethernet backplane and occupies a single slot. As a result, it extends controller I/O capacity beyond the main rack. Furthermore, the BMENOR2200 supports both Modbus TCP and EtherNet/IP protocols. It suits distributed architectures in large plants and remote process areas. Typical applications include water treatment plants, oil and gas facilities, and manufacturing lines.

Technical Specifications

Module Function and Architecture

The module serves as a Remote I/O (RIO) head or scanner. It connects the local rack to a network of remote I/O drops. Each drop can contain X80 or Quantum I/O modules. The head module handles drop configuration and manages data exchange between the CPU and remote racks. Since it communicates over Ethernet, wiring complexity decreases compared with traditional fieldbus systems. The module fits a BMEXBP Ethernet backplane for seamless integration.

Communication Interfaces

Ethernet RJ45 ports provide network connectivity. The module supports Modbus TCP and EtherNet/IP protocols for I/O scanning and messaging. It manages RIO drop configuration through the programming software. Data flows between the main CPU and distributed I/O racks across the Ethernet network. This architecture allows flexible placement of I/O in space-constrained areas.

Electrical Characteristics

Power comes from the backplane supply. The module accepts 3.3 V DC and 24 V DC via the backplane. Bus current draw reaches 600 mA at 5 V DC. Since the module draws power internally, no separate power wiring is required. This design simplifies cabinet layout and reduces installation time.

Mechanical and Environmental Parameters

The module measures 100 × 28 × 93 mm (H × W × D) and weighs approximately 0.2 kg. It occupies 1 slot on the backplane. The IP degree of protection is IP20, suitable for cabinet installation. Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity tolerates 5% to 95% without condensation.

Installation Guide

Step 1: Prepare the Backplane

First, disconnect all power sources before starting installation. Verify that the BMEXBP Ethernet backplane has an available slot. Remove the protective cover from the target connector.

Step 2: Insert the Module

Next, align the BMENOR2200 with the guide rails on the selected slot. Push the module firmly into the backplane connector until it seats completely.

Step 3: Secure the Module

Once seated, tighten the retaining screw at the top of the module. Confirm that the module sits flush against the rack.

Step 4: Configure and Verify

Finally, connect Ethernet cables to the RJ45 ports. Apply power and observe the LED indicators. Configure RIO drops through the programming software. Verify that all remote I/O racks communicate correctly.

Packaging List

• 1 × Schneider BMENOR2200 Modicon M580 RIO Head Module

• 1 × Protective connector cover

• 1 × Quick start documentation (installation instructions)

Shipping via FedEx, UPS, or DHL.

FAQ

Q: What is the primary function of the BMENOR2200?

A: The BMENOR2200 acts as a Remote I/O head module. Specifically, it manages remote I/O drops over Ethernet. This extends controller capacity beyond the main rack.

Q: Which protocols does the module support?

A: The module supports Modbus TCP and EtherNet/IP. These protocols handle I/O scanning and messaging between the CPU and remote racks.

Q: Does the module require an external power supply?

A: No, the BMENOR2200 draws power from the backplane. It accepts 3.3 V DC and 24 V DC via the backplane connection. Bus current draw is 600 mA at 5 V DC.

Q: How many slots does the module occupy?

A: The module occupies 1 slot on a BMEXBP Ethernet backplane. Its compact 28 mm width helps conserve rack space.

Q: What environmental conditions does the module tolerate?

A: Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity tolerates 5% to 95% without condensation. The module carries an IP20 rating.
