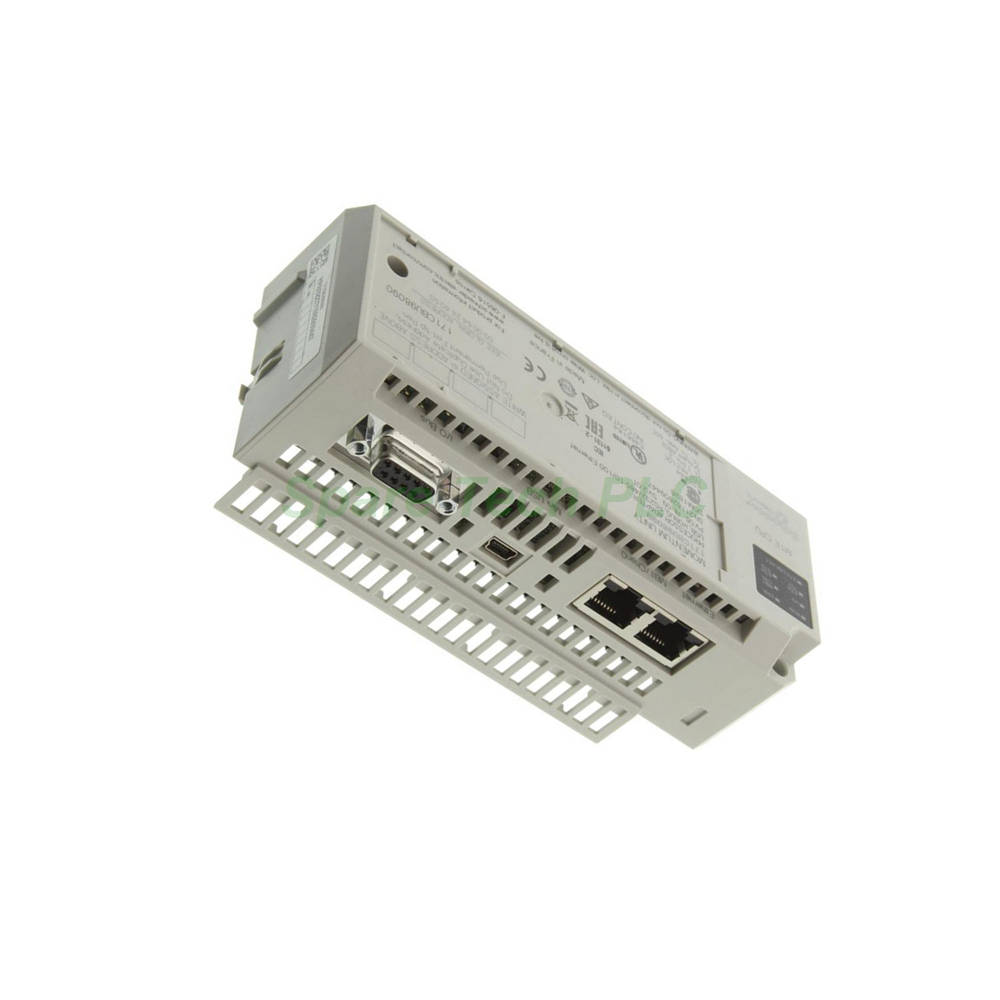

The Schneider 171CBU98090 is a powerful processor unit within the Modicon Momentum series. This module serves as the foundation for distributed control architectures. It runs on the Spear 320s processor at 333 MHz. Moreover, it features an impressive 3584 kB of program memory for complex automation tasks. The 171CBU98090 supports up to 2048 digital inputs and 2048 digital outputs. This capacity makes it suitable for demanding industrial applications. Additionally, this model integrates seamlessly with Modicon STB I/O systems. The 171CBU98090 provides flexible connectivity through integrated Ethernet and USB ports.
Processor and Memory
The 171CBU98090 features a 32-bit Spear 320s processor. It operates at a clock frequency of 333 MHz. The program memory offers 3584 kB for both IEC and LL984 applications. Besides that, it includes 26048 register words for data storage. The instruction execution time reaches 83 ns per 1K instruction. This ensures fast and responsive control performance.
Communication Capabilities
This model supports both Modbus and Modbus TCP protocols. It provides an RS232/485 serial port with 19200 bps capability. Furthermore, it includes one Ethernet RJ45 port supporting 10/100 Mbps. The 171CBU98090 also features a USB port for local programming access. Communication services include Modbus messaging with 125 words. Additionally, it supports Global Data with 1600 I/O messages per second. The unit handles multidrop Modbus and star Modbus TCP topologies. Specifically, it supports addressing from 1 to 247 for Modbus devices. Moreover, it includes a unique IEEE global address for Modbus TCP.
I/O Capacity and Power
The 171CBU98090 manages up to 2048 inputs and 2048 outputs. It consumes 500 mA at 5 V DC. The supply voltage range is between 4.75 V and 5.25 V. In addition, it supports a fail-safe I/O mode for enhanced system protection. The unit works with up to 32 Modbus devices simultaneously.
Physical Specifications
The 171CBU98090 measures 144 mm in width and 53.47 mm in depth. Its height is 60.6 mm. The product weight is approximately 0.163 kg. The unit uses a Lexan material construction. It mounts securely on a standard 35 mm symmetrical DIN rail. The IP20 rating provides basic environmental protection.
Operating Conditions
This model operates within 0 °C to 60 °C ambient temperatures. The storage temperature ranges from -40 °C to 85 °C. Furthermore, it withstands 5 % to 96 % relative humidity without condensation. The shock resistance reaches 15 gn during 11 ms sinusoidal vibrations. Additionally, the 171CBU98090 resists electrostatic discharge up to 6 kV contact. It offers 8 kV air discharge protection as well.
Pre-Installation Preparation
Firstly, ensure the system power is completely disconnected before starting the installation. Use appropriate ESD protection when handling the 171CBU98090. Prepare a clean workspace and gather the necessary tools. Confirm that the 35 mm DIN rail is securely mounted inside the cabinet. Verify the I/O base compatibility for this processor.
Mounting Procedure
Next, attach the 171CBU98090 directly onto the Momentum I/O base. The processor fits any compatible Momentum I/O base. Snap the locking tabs into the corresponding slots on the base. Then, connect the 12-pin power and communication connector between the units. The processor snaps securely onto the base with multiple connection points. For high vibration environments, use the reinforcement kit (170 XTS 120 00). This kit provides additional stability for the assembly.
Electrical Connections
After mounting, connect the Ethernet and serial communication cables. The 171CBU98090 uses an RJ45 connector for Ethernet. Connect the RS485/RS232 cables to the designated serial port. The USB port provides direct access for programming and diagnostics. Always disconnect communication cables before attaching or detaching the processor. This prevents potential electrical hazards.
Post-Installation Checks
Finally, connect the system power and verify the unit powers up correctly. Observe the LED indicators for proper status signals. The RUN LED confirms normal processor operation. The ERR LED indicates any system faults. Additionally, the I/O LED shows module status. Check the Ethernet link and activity LEDs for network connectivity. Confirm that Unity Pro software recognizes the 171CBU98090 properly.
1 x Schneider 171CBU98090 Processor Module
1 x Product Label
1 x Ground Screw
1 x Male-Female Standoff
1 x Installation Guide
Shipping Methods: FedEx, UPS, DHL
Q1: What software programs the Schneider 171CBU98090?
The 171CBU98090 requires Unity Pro software for programming and configuration. It also supports EcoStruxure™ Control Expert for advanced applications.
Q2: Can the 171CBU98090 work with Modicon STB I/O modules?
Yes, the 171CBU98090 fully supports Modicon STB I/O modules. This compatibility expands its I/O capabilities beyond the standard capacity.
Q3: What is the maximum I/O capacity of the 171CBU98090?
The 171CBU98090 supports up to 2048 digital inputs and 2048 digital outputs. This provides extensive control capability for large-scale automation systems.
Q4: How do I mount the 171CBU98090 on a DIN rail?
The 171CBU98090 mounts on a standard 35 mm symmetrical DIN rail. Simply snap the unit onto the rail and secure it using the locking mechanism provided.
Q5: Does the 171CBU98090 support hot-swapping?
No, you must completely disconnect power before installing or removing the 171CBU98090. Always follow proper safety procedures during module replacement.
