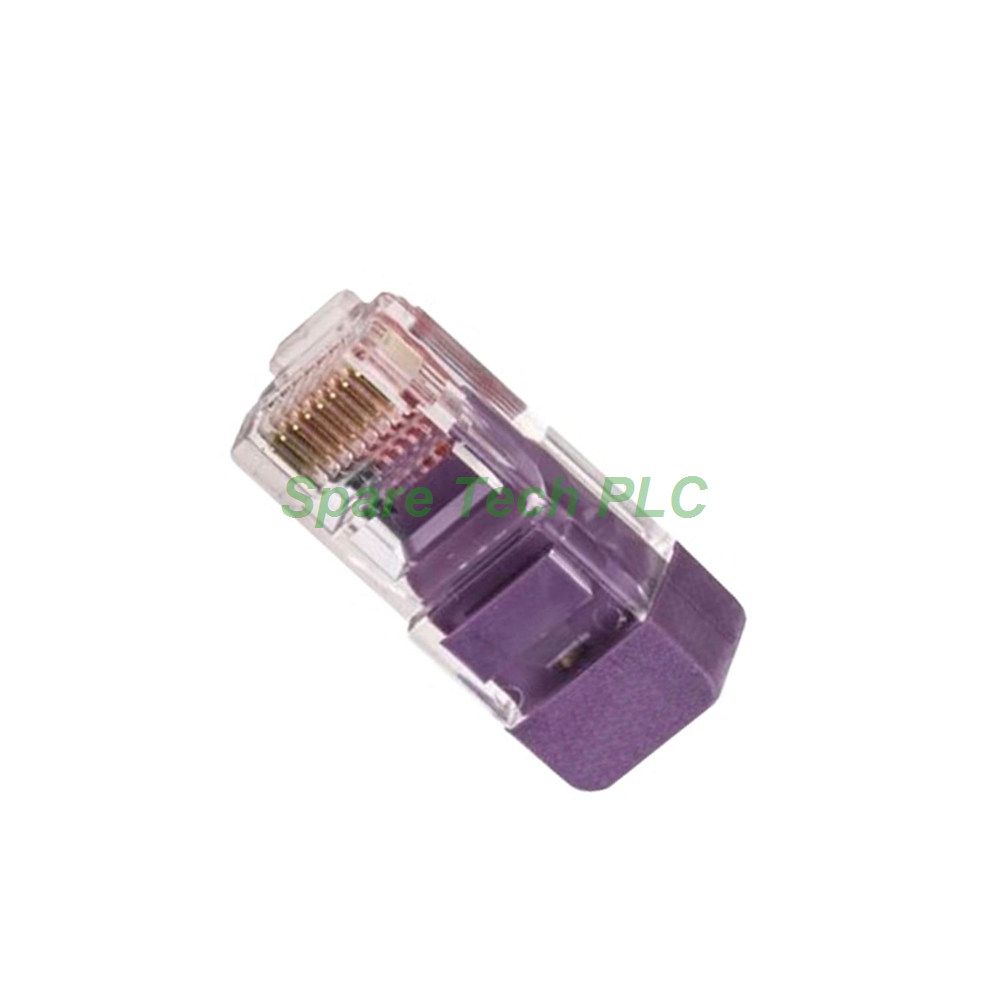

The Schneider Electric 170XTS02100 serves as a dedicated ModBus Plus line terminator within the Modicon Momentum family. This device terminates communication lines properly, which prevents signal reflections and ensures reliable data transmission. Its flexible mounting options and wide environmental tolerance make it a practical choice for various industrial networking applications.
The 170XTS02100 terminates ModBus Plus networks effectively through its RJ45 connectors. It operates on a 24V DC power supply, which aligns with standard industrial control systems. This terminator supports a wide humidity range from 5% to 95% non-condensing, making it suitable for diverse factory floors. Furthermore, it works seamlessly with Modicon Premium, Momentum, and Quantum automation platforms, giving you broad compatibility across Schneider Electric ecosystems.
The Schneider 170XTS02100 measures 100 mm x 100 mm x 40 mm and weighs only 0.5 kg, which makes it compact and easy to handle. It operates reliably between -10°C and 55°C and withstands storage temperatures from -25°C to 70°C. Additionally, this unit carries an IP20 protection rating, which safeguards it against solid objects larger than 12 mm inside control cabinets. Its shock resistance reaches 50g peak, and it handles vibration up to 5g RMS, ensuring dependable performance even in mechanically active environments.
Installing the 170XTS02100 offers great flexibility because you can mount it on a standard DIN rail or directly onto a panel. This dual-mounting capability allows you to place it where it best fits your cabinet layout. You simply connect the terminator via its RJ45 ports to the ModBus Plus trunk line at the appropriate end points. This straightforward process minimizes installation time and reduces the risk of network errors.
This line terminator integrates smoothly with Modicon Momentum and other Schneider platforms. You can deploy it in systems controlling conveyor belts, HVAC units, knitting machines, or robotic arms. Its robust electrical and mechanical design ensures stable bus termination, which directly improves communication quality across the entire network. Besides, its CE, UL, and CSA certifications confirm its compliance with international safety and performance standards.
Each unit of the 170XTS02100 ships individually in its original packaging. The package contains the line terminator module ready for immediate installation.
Shipping Methods: Fedex, UPS, DHL
What is the primary function of the 170XTS02100?
This device terminates ModBus Plus communication lines to prevent signal reflections and maintain data integrity on the network.
Which PLC platforms work with the 170XTS02100?
It works with Modicon Premium, Momentum, and Quantum automation platforms from Schneider Electric.
Can I mount this terminator on a DIN rail?
Yes, you can mount the 170XTS02100 on a DIN rail or directly onto a panel, depending on your preference.
What is the operating temperature range for this device?
The 170XTS02100 operates reliably between -10°C and 55°C, with storage capability from -25°C to 70°C.
Does the 170XTS02100 require an external power supply?
Yes, it requires a 24V DC power supply to function properly in your network.
| Brand Name | |
| Model No. | 170xts02100 |
| Product Type | ModBus Plus Line Terminator |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
