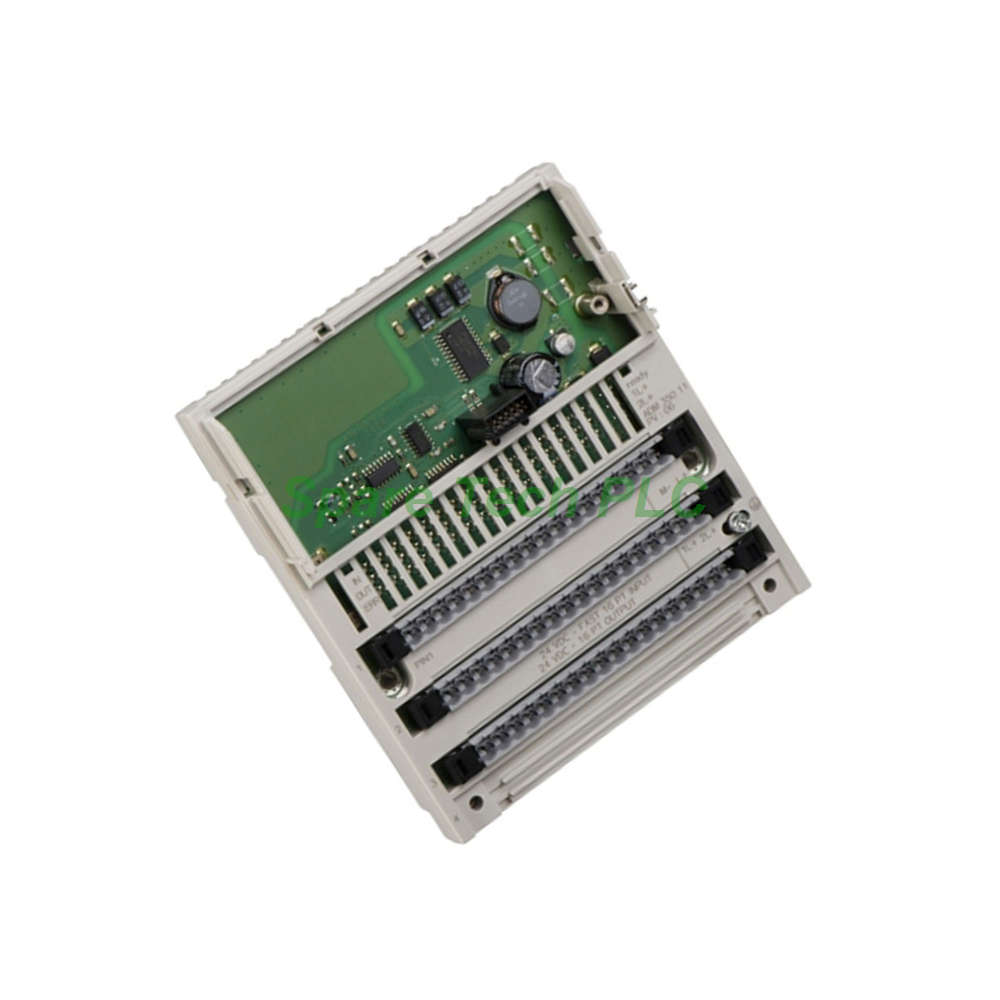

Schneider 170ADM85010 Modicon I/O Module

Product Introduction

The Schneider Electric 170ADM85010 module provides a balanced mix of 16 discrete inputs and 16 outputs, making it a versatile solution for your control architecture. This Modicon Momentum base handles a wide voltage range, ensuring compatibility with various field devices. Its compact and robust design allows for straightforward integration into existing systems, primarily for industrial control and monitoring.

Technical Specifications

The 170ADM85010 module interfaces directly with field devices through its 16 input and 16 output channels. It supports a broad voltage range from 10 to 60 V DC, which gives you significant application flexibility. Each of its 16 outputs delivers a continuous current of 0.5 A per point. The module responds notably fast, with outputs switching in less than 0.1 ms and inputs in under 3.3 ms. Additionally, the design includes robust isolation of 707 V DC between channels and the bus, which ensures signal integrity and protection.

Mechanical and Environmental Parameters

The Schneider 170ADM85010 operates reliably within a temperature range of 0°C to +60°C, making it suitable for most indoor industrial environments. It carries an IP20 protection rating, which makes it ideal for control cabinets where it remains shielded from direct environmental exposure. This module mounts directly onto a standard DIN rail, which simplifies installation and maintenance. Its dimensions measure 125 mm (W) x 141.5 mm (H) x 47.5 mm (D) and it weighs only 0.45 kg, allowing for efficient use of panel space.

Installation and Integration

Installing the 170ADM85010 takes little time thanks to its DIN rail compatibility. You assemble the I/O base with a communication adapter or a processor adapter to form a complete Momentum control system. The module uses positive logic configuration and provides simple plug-in terminal strips for quick wiring. This modular approach lets you build a system that precisely matches your application needs.

Packaging and Delivery

Each unit of the 170ADM85010 ships as a single piece within its packaging. The package weighs approximately 380 g and measures 26.0 cm x 18.0 cm x 5.5 cm. Inside, you will find the I/O module itself, ready for integration into your system.

Shipping Methods: Fedex, UPS, DHL

Frequently Asked Questions (FAQ)

1. What types of devices can the 170ADM85010 connect to?
   This module connects to discrete sensors and actuators, such as limit switches, photoelectric sensors, and solenoid valves, because of its 16 inputs and 16 outputs.

2. What is the maximum output current per channel?
   Each output channel on the 170ADM85010 handles a continuous current of up to 0.5 A.

3. Is this module compatible with other Modicon platforms?
   No, this specific module belongs to the Modicon Momentum series and requires compatible adapters from this same platform.

4. What is the guaranteed input voltage for a "High" state?
   For a 24 V DC supply, the module guarantees a "High" state for input voltages greater than 11 V.

5. Does the 170ADM85010 support DIN rail mounting?
   Yes, this module mounts directly onto a standard DIN rail, which makes installation in industrial cabinets quick and easy.
