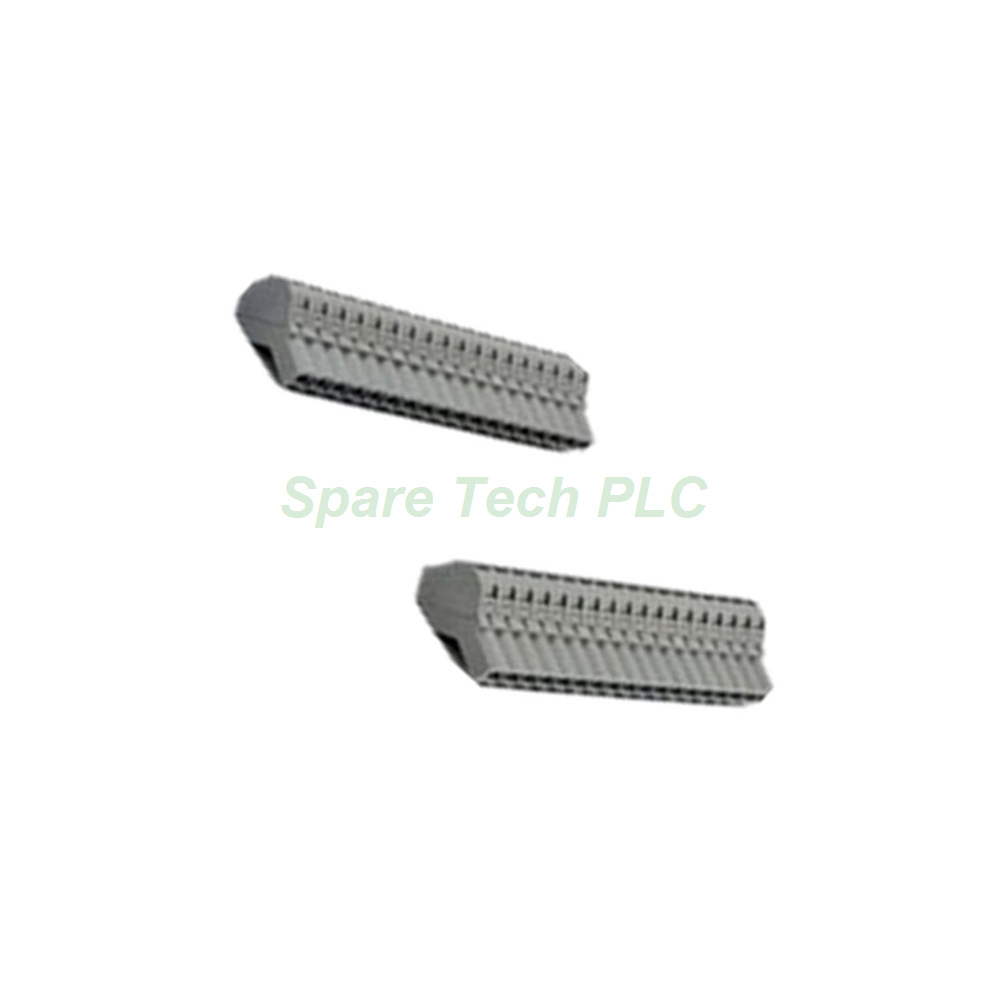

The Schneider Electric 170XCP10000 is a specialized cable coding kit for I/O bases within the Modicon Momentum automation series. This kit helps you organize and identify cables efficiently, which simplifies maintenance and troubleshooting tasks. Its compact dimensions and lightweight design make it easy to handle and install in various control cabinets.
This kit adheres to CE standards, which confirms its compliance with essential safety and performance regulations. Furthermore, its natural cooling mechanism ensures effective heat dissipation during operation. Therefore, you can rely on this kit for consistent performance in your automation systems.
The 170XCP10000 offers a clear set of physical and operational parameters. First, its dimensions are compact, measuring 1.18 inches in height, 4.33 inches in width, and 9.84 inches in length. Additionally, it weighs only 53 grams, which makes it one of the lightest accessories in the Momentum lineup.
Here are the key technical parameters:
Height: 1.18 inches
Width: 4.33 inches
Length: 9.84 inches
Weight: 53 grams
Standard Compliance: CE
Cooling Method: Natural
The 170XCP10000 performs reliably across a broad range of environmental conditions. For instance, its operating temperature range spans from 0°C to 60°C, which accommodates most indoor industrial settings. Moreover, it can withstand humidity levels up to 95% non-condensing during both operation and storage. This high humidity tolerance prevents moisture-related issues in damp environments.
Regarding altitude, this kit operates effectively at elevations up to 1,000 meters above sea level. Therefore, it suits installations in high-altitude locations such as mountain factories or elevated control rooms. Meanwhile, the CE compliance ensures the product meets rigorous European safety standards.
Installing the 170XCP10000 is a straightforward process. First, identify the I/O bases that require cable coding. Next, attach the coding components to the corresponding cables according to your system's labeling scheme. Then, secure the coding elements firmly to prevent accidental detachment.
After installation, verify that all cables are clearly marked for easy identification. This practice significantly reduces troubleshooting time during maintenance activities. Finally, store any unused coding components in a dry place to maintain their condition for future use.
When you order the 170XCP10000, your package will include:
1 x Schneider Electric 170XCP10000 Cable Coding Kit
1 x Instruction sheet
Please note that certificates and warranty documents are not part of this physical package. We ship all orders using trusted global carriers such as FedEx, UPS, or DHL.
Q1: What is the purpose of the 170XCP10000 cable coding kit?
This kit helps you organize and label cables connected to I/O bases, which simplifies system identification and maintenance.
Q2: What is the weight of the 170XCP10000?
The kit weighs only 53 grams, making it extremely lightweight and easy to handle during installation.
Q3: What temperature range does the 170XCP10000 support?
It operates reliably between 0°C and 60°C, covering most indoor industrial environments.
Q4: Is the 170XCP10000 compliant with any standards?
Yes, it adheres to CE standards, ensuring safety and performance compliance for European markets.
Q5: Can the 170XCP10000 withstand high humidity conditions?
Yes, it tolerates humidity levels up to 95% non-condensing during both operation and storage.
| Brand Name | |
| Model No. | 170XCP10000 |
| Product Type | Cable Coding Kit |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
