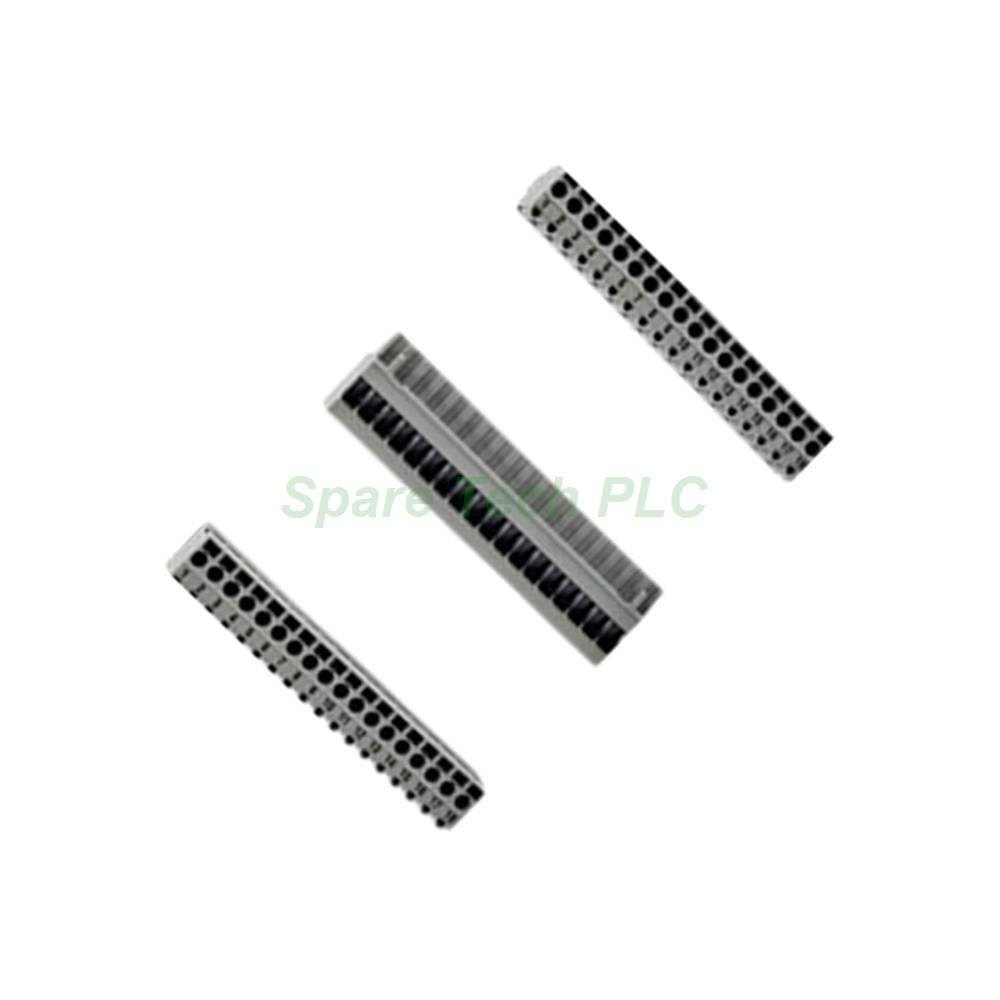

Schneider 170XCP20000 Modicon Momentum Coding Kit

Product Introduction

The Schneider Electric 170XCP20000 is a dedicated cable coding kit designed for the Modicon Momentum automation series. This kit helps you organize and label cables efficiently, which streamlines system identification and reduces maintenance time. Its compact dimensions and lightweight construction make it easy to handle during installation. Additionally, the kit adheres to CE standards, confirming its compliance with essential safety and performance requirements.

This product features natural cooling, which eliminates the need for active ventilation. Therefore, you can install it in various cabinet configurations without worrying about additional cooling equipment. Meanwhile, its robust environmental tolerances ensure reliable performance across diverse industrial settings.

Technical Specifications

The 170XCP20000 offers precise physical dimensions and operational parameters. First, its compact profile measures 1.18 inches in height, 4.33 inches in width, and 9.84 inches in length. Furthermore, it weighs only 53 grams, making it one of the lightest accessories in the Momentum lineup.

Here are the key technical parameters:

• Height: 1.18 inches

• Width: 4.33 inches

• Length: 9.84 inches

• Weight: 53 grams

• Standard Compliance: CE

• Cooling Method: Natural

Environmental Specifications

The 170XCP20000 performs reliably across a broad spectrum of environmental conditions. For instance, its operating temperature range spans from 0°C to 60°C, which accommodates most indoor industrial environments. Moreover, it can withstand humidity levels up to 95% non-condensing during both operation and storage. This high humidity tolerance prevents moisture-related issues that could compromise cable identification integrity.

Regarding altitude, this kit operates effectively at elevations up to 1,000 meters above sea level. Therefore, it suits installations in high-altitude locations such as mountain factories or elevated control rooms. In addition, the CE compliance confirms the product meets rigorous European safety standards, giving you confidence in its quality.

Installation & Usage Guide

Installing the 170XCP20000 follows a simple and logical process. First, identify the cables that require coding within your I/O base configuration. Next, attach the coding components to the corresponding cables according to your system's labeling scheme. Then, secure the coding elements firmly to prevent accidental detachment during operation.

After installation, verify that all cables are clearly marked for easy identification. This practice significantly reduces troubleshooting time during maintenance activities. Finally, store any unused coding components in a dry place to maintain their condition for future expansions.

Packaging List

When you order the 170XCP20000, your package will include:

• 1 x Schneider Electric 170XCP20000 Cable Coding Kit

• 1 x Instruction sheet

Please note that certificates and warranty documents are not part of this physical package. We ship all orders using trusted global carriers such as FedEx, UPS, or DHL.

Frequently Asked Questions (FAQ)

Q1: What is the primary purpose of the 170XCP20000 cable coding kit?
This kit helps you organize and label cables connected to I/O bases, which simplifies system identification and speeds up maintenance tasks.

Q2: How much does the 170XCP20000 weigh?
The kit weighs only 53 grams, making it extremely lightweight and easy to handle during installation.

Q3: What temperature range does the 170XCP20000 support?
It operates reliably between 0°C and 60°C, covering most indoor industrial environments.

Q4: Is the 170XCP20000 compliant with any international standards?
Yes, it adheres to CE standards, ensuring safety and performance compliance for European and international markets.

Q5: Can the 170XCP20000 withstand high humidity conditions?
Yes, it tolerates humidity levels up to 95% non-condensing during both operation and storage without performance degradation.
