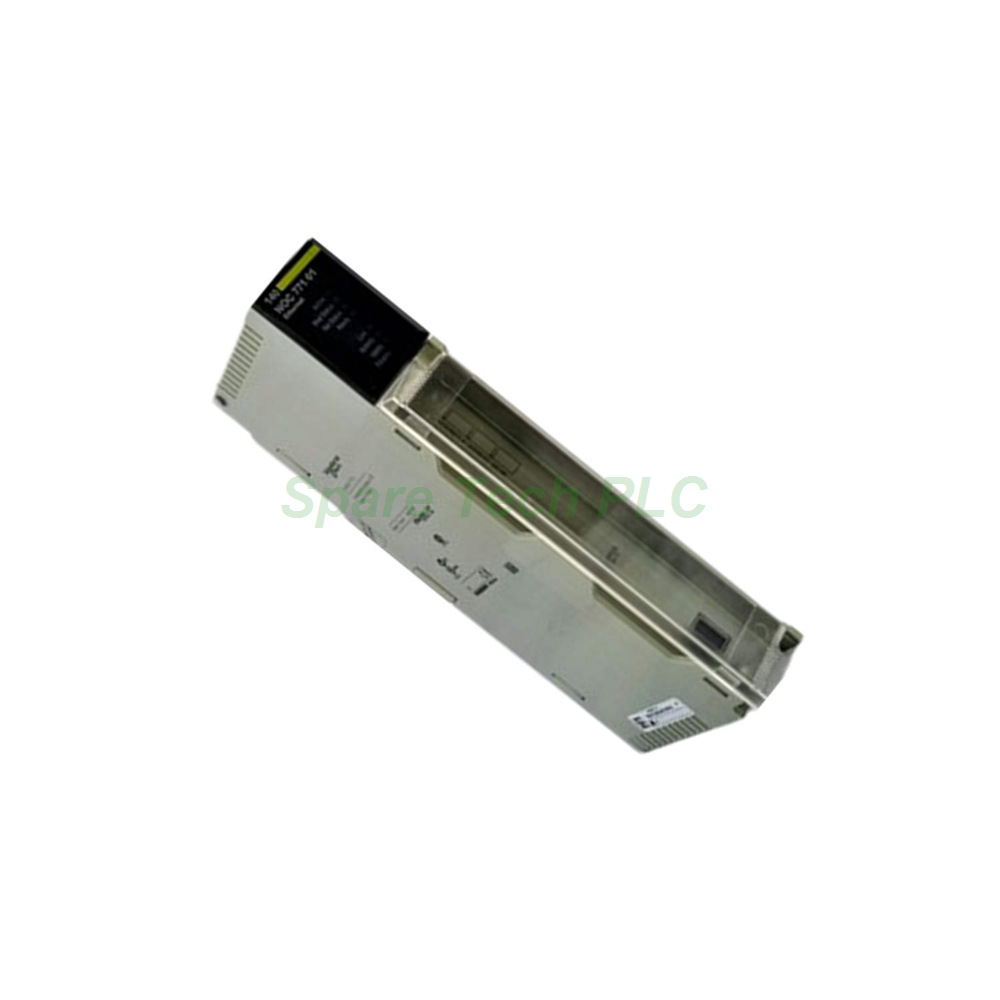

Schneider 140NOC77101C TCP/IP Modbus Module

Schneider Electric 140NOC77101C TCP/IP Module for Modicon Quantum

The 140NOC77101C brings reliable network connectivity to Schneider Electric’s Modicon Quantum line. This TCP/IP module supports the widely used Modbus protocol. You can apply it across multiple industrial sectors including material handling, packaging, and textile machinery.

Key Technical Specifications

The 140NOC77101C operates within an ambient temperature range of 0°C to 40°C. Storage temperature extends from 0°C to 50°C, giving you flexibility during system downtime. Maximum operating humidity reaches 80% RH without condensation, and storage humidity follows the same rating.

Additionally, this TCP/IP module works without derating at altitudes up to 1000 meters above sea level. Storage altitude also remains at 1000 meters. The device requires a clean indoor environment with no corrosive chemicals present.

Modbus protocol support makes the 140NOC77101C highly versatile. You can integrate it easily with existing industrial networks. Many automation systems rely on Modbus for field device communication, so this module fits right in.

Supported Applications

Specifically, the 140NOC77101C handles four main application types. First, general machine control applications benefit from its stable TCP/IP communication. Second, material handling systems use this module to coordinate conveyors and sorters.

Third, packaging machines rely on the 140NOC77101C for timing and sequence data exchange. Fourth, textile equipment uses this module to manage loom and finishing line operations. Therefore, one module serves many production environments.

Moreover, the Modbus protocol ensures compatibility with hundreds of field devices. You do not need proprietary gateways or converters. Consequently, system integration becomes faster and more cost-effective.

Environmental and Mechanical Parameters

The 140NOC77101C stays cool through natural convection. No forced air cooling is required. Its housing protects internal circuits from dust and light contact, but the device is not rated for outdoor or wet locations.

Furthermore, humidity control is important. While 80% RH is acceptable, any condensation will damage the electronics. Always install the module inside a climate-controlled cabinet.

Installation Guidelines

First, power down your Quantum rack before handling the 140NOC77101C. Next, locate an empty slot in the backplane. Insert the module firmly until the retaining clips lock into place.

Then, connect your Ethernet cable to the TCP/IP port. Configure the IP address and Modbus settings through your programming software. The 140NOC77101C will then begin exchanging data with your controllers and HMIs.

For instance, you can use this module to connect a Quantum PLC to a Modbus TCP/IP network with multiple slave devices. The module handles request and response cycles automatically. Finally, test all connections by monitoring data exchange in real time.

Packaging List

• 140NOC77101C TCP/IP module (1 unit)

• Built-in Ethernet port with protective cover

• Quick installation leaflet

• Product identification label

Note: No certificates or warranty documents are included in the package.

Shipping Information

All orders ship via Fedex, UPS, or DHL. Tracking numbers are provided by email after dispatch. International delivery usually takes 3 to 7 business days.

Frequently Asked Questions (FAQ)

1. What protocols does the 140NOC77101C support?
This module primarily supports Modbus TCP/IP. It works as a client or server on standard Ethernet networks.

2. Can I use the 140NOC77101C outdoors?
No. The operating environment must be clean and indoor. Corrosive chemicals or moisture will damage the module.

3. Does the 140NOC77101C work with non-Schneider PLCs?
Yes, as long as the other device supports Modbus TCP/IP. The module communicates using the open Modbus standard.

4. What happens above 1000 meters altitude?
Performance may degrade without derating. Schneider Electric recommends staying at or below 1000 meters for full specifications.

5. How do I set the IP address on the 140NOC77101C?
Use Schneider Electric’s Unity Pro or Control Expert software. Connect through the backplane or a direct Ethernet cable to configure network settings.
